Vehicle Platform: OSPREY
ECU Name: Hella Body Control Module (BCM) DTC
Troubleshooting Data
Version: 1.4
Date: 15 May 2018
Author: Body CoC
Page: 40 of 855
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

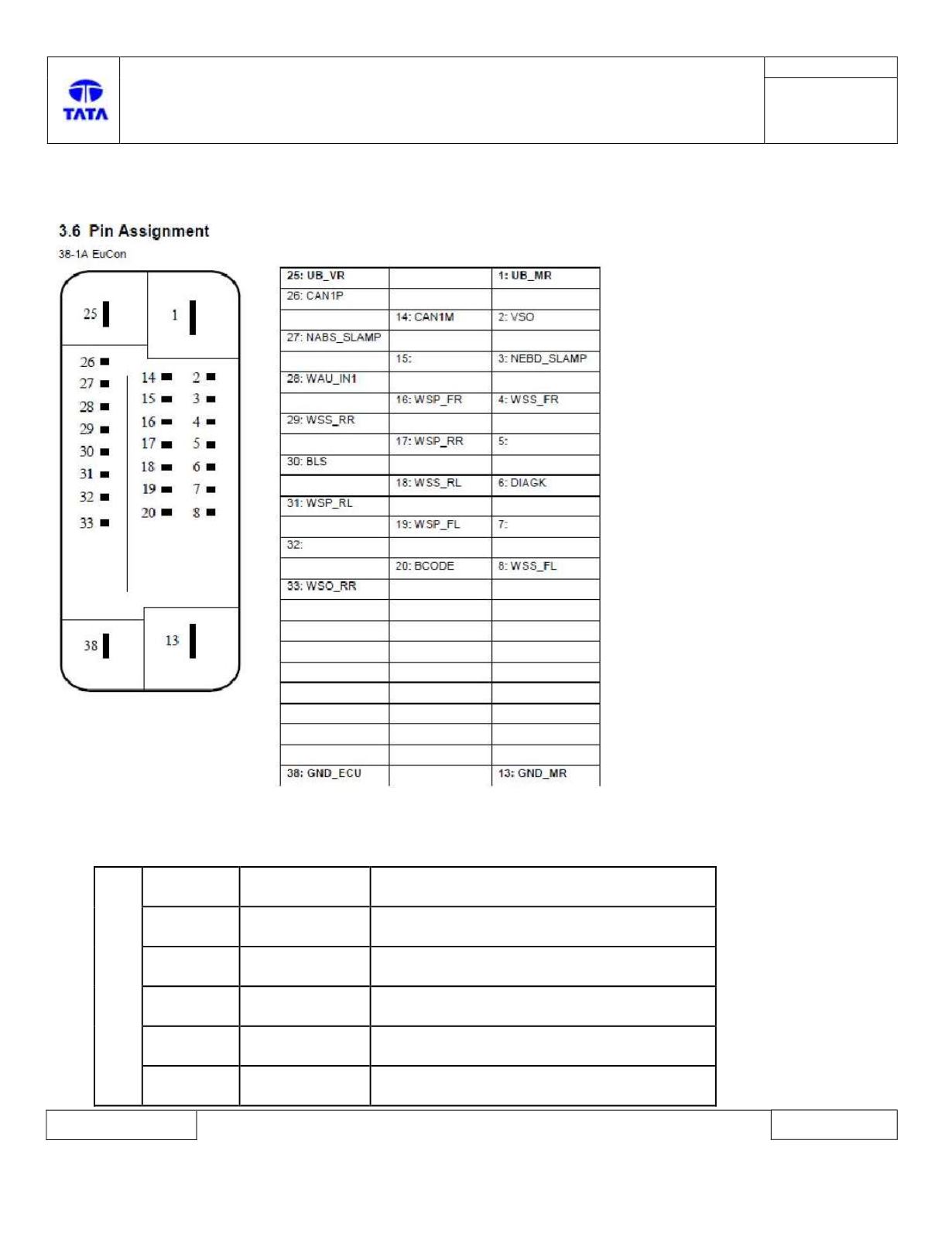

Connector View & Information: -
ECU side Connector
ABS ECU Pin assignment
Pin No.
Pin Name
Description
26
CAN_H
CAN High
14
CAN_L
CAN Low
28
Ign
Ignition
1,25
Vbat
Supply Voltage Battery
13,38
GND
Battery GND
