Automated Manual Transmission
31
Electro hydraulic Selection Gearbox Activa-
tion Hydraulic Unit Mounting Removal:
Place the car on a lift.
Position the gear lever at N.
Connect the diagnosis equipment and carry
out the accumulator depressurisation pro-
cedure.
Remove the Protection / guard under en-
gine.
Disconnect the Battery and remove the
battery support and tray along with Bat-
tery.
Remove the electrical wiring harness from
the gearbox hydraulic selection system on
hydraulic selection unit.
Remove the hydraulic speed selection hy-
draulic actuator unit and clutch

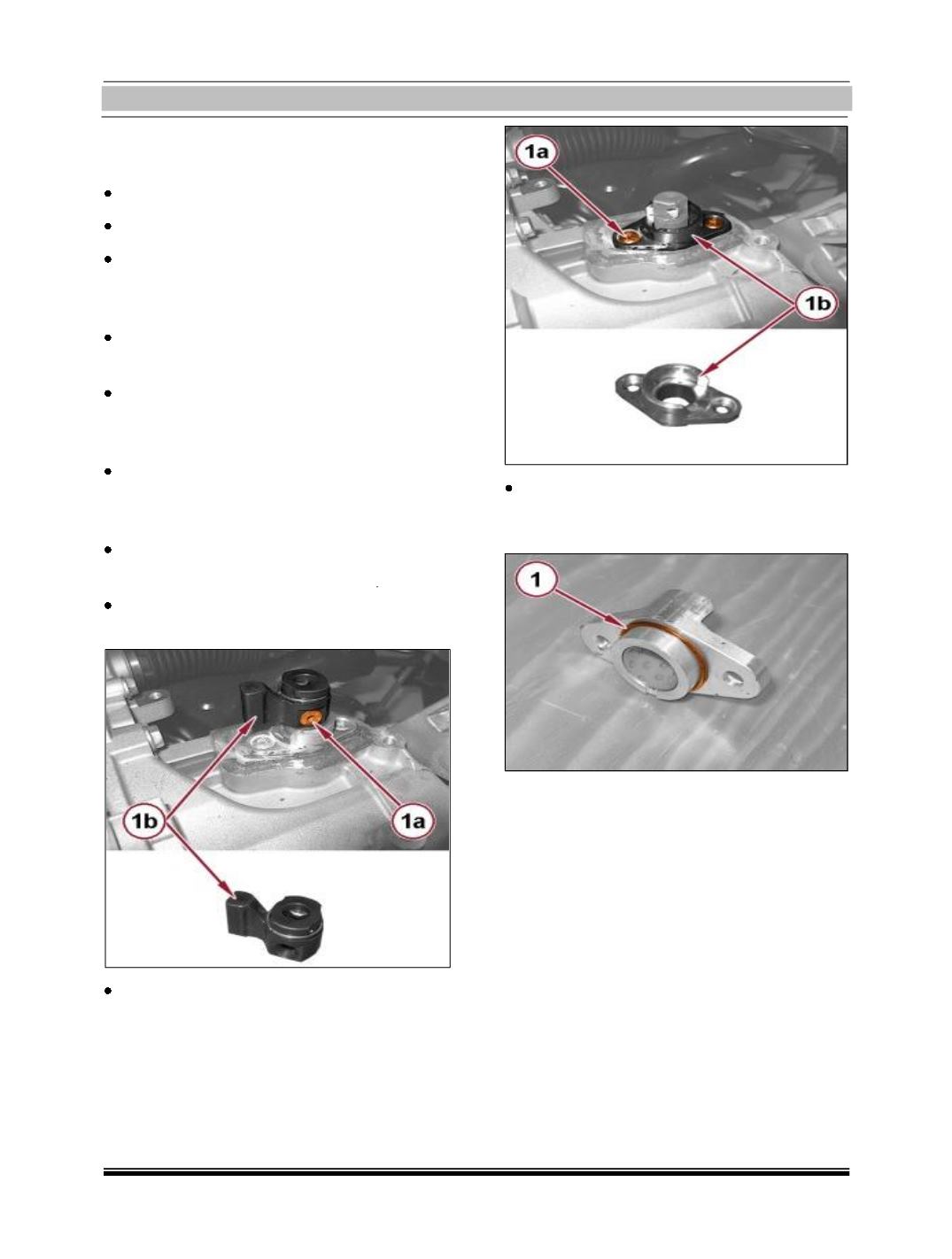

Loosen the screw (1a) and remove the gear
selection dog (1b).
Loosen the screws (1a) and remove the
mounting for the gearbox electro-hydraulic
selection system hydraulic actuation unit
(1b).
Remove the O-ring from the mounting for
the gearbox electro-hydraulic selection sys-
tem hydraulic actuation unit.
