Automated Manual Transmission
33

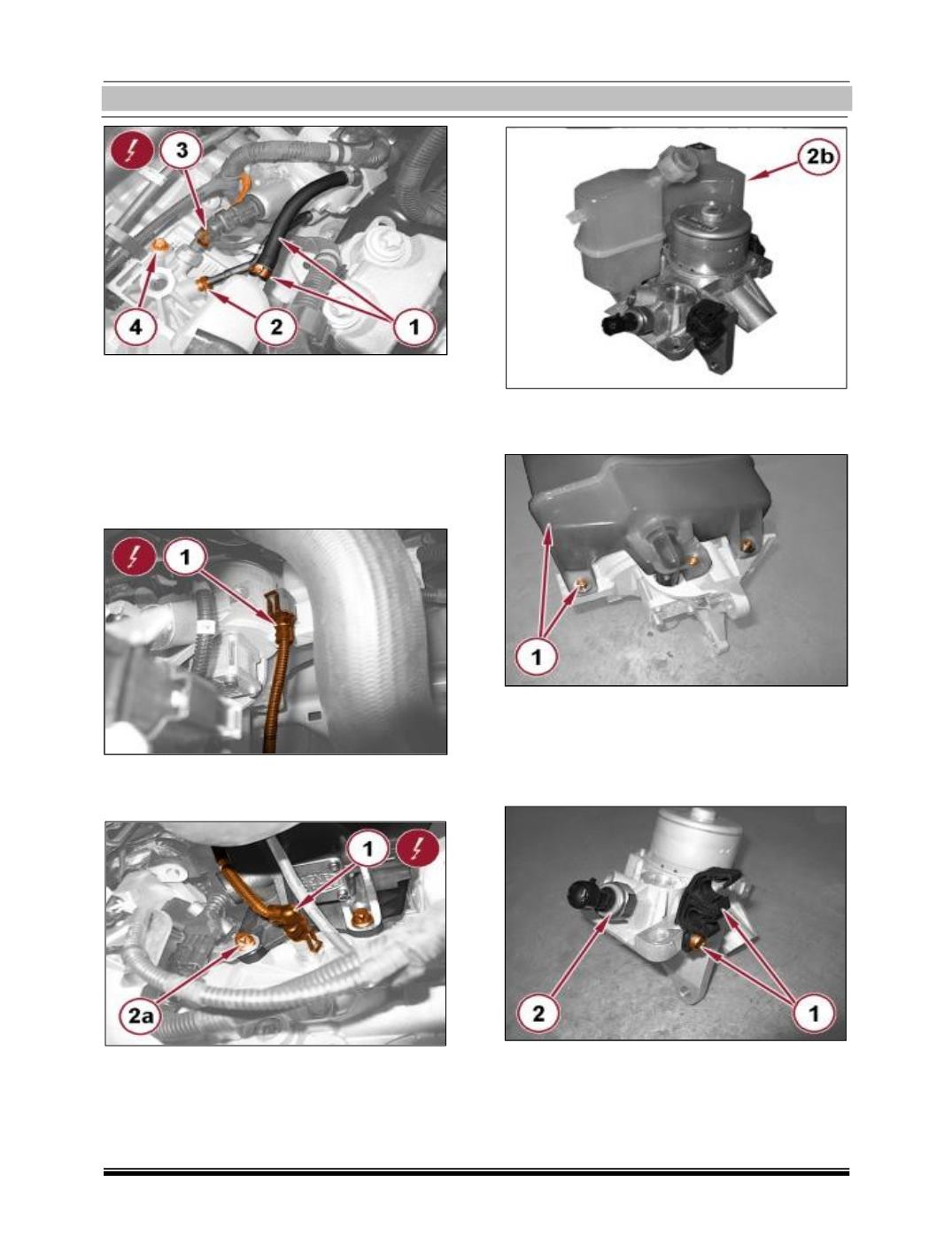

3. Detach the electrical connection from the
hydraulic circuit pressure sensor.
4. Loosen the hydraulic circuit fluid reservoir
mounting upper fixing screw.
1. Disconnect the electrical connection for
the robotised gearbox oil electric pump.
1. Disconnect the electrical connection for
the gearbox input speed sensor.
2. Loosen the lower screws (2a) and remove
the electric pump and hydraulic circuit flu-
id reservoir mounting (2b).
1. Loosen the screws and remove the hydrau-
lic circuit fluid reservoir.
1. Loosen the screw and remove the wiring
retaining clip.
2. Loosen the hydraulic circuit pressure sen-
sor and remove it.
