Automated Manual Transmission
37

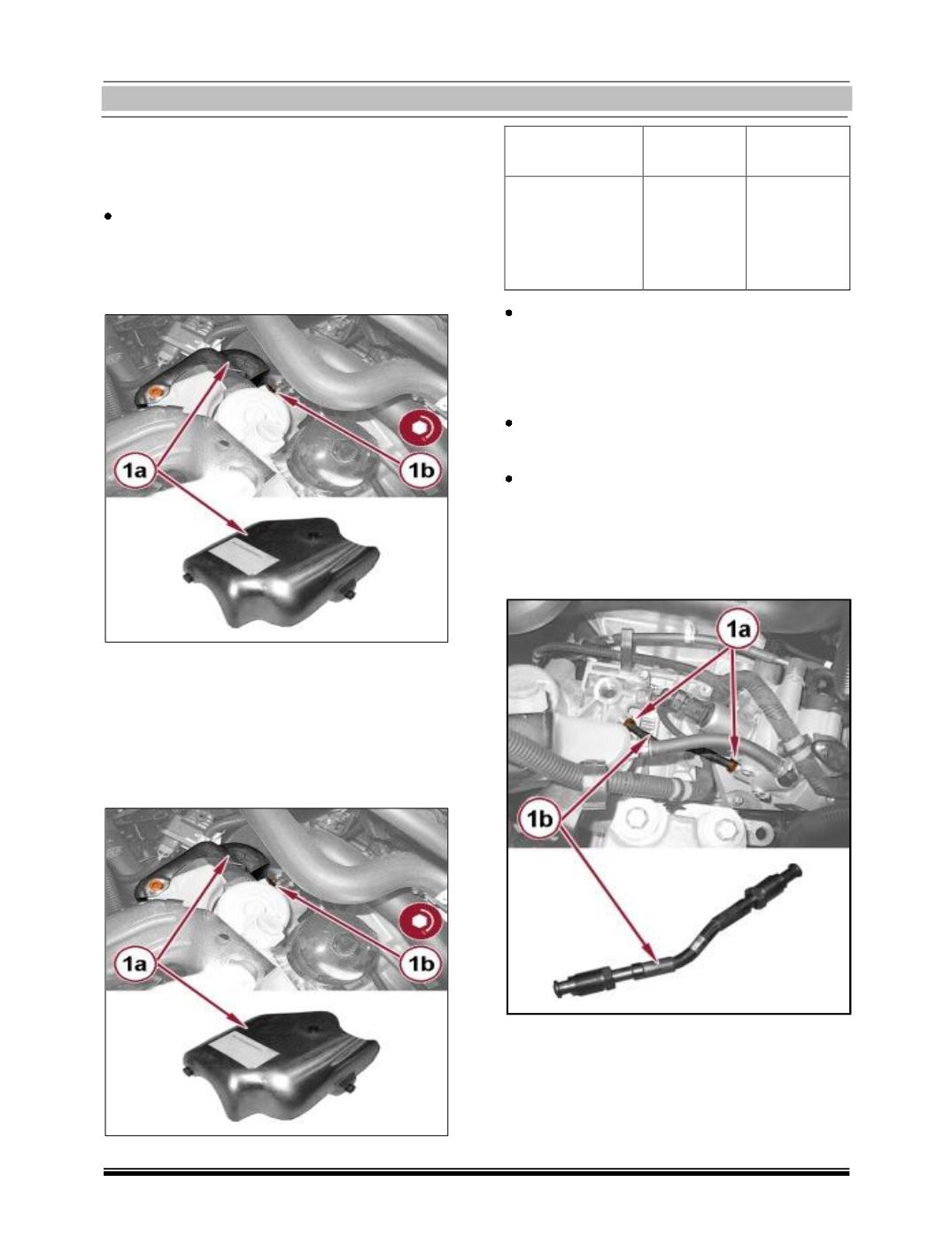

Heat Protection Bulkhead on Gearbox Hy-
draulic Circuit Fluid Reservoir with Electro-
Hydraulic Selection Removal:
Disconnect the Battery connections and
remove the battery support / drip tray.
1. Loosen the screws (1a) and remove the
heat shield (1b).
Heat Protection Bulkhead on Gearbox Hy-
draulic Circuit Fluid Reservoir with Electro-
Hydraulic Selection Fitment:
1. Place the heat shield (1a) in its housing and
tighten the screws (1b) to the prescribed
torque.
Component
Fixing Dia
Value (Nm)
Heat shield on
tank
Screw
6 – 10
Connect the Battery connections and re-
move the battery support / drip tray.
Pipe from Pump to Hydraulic Speed Selec-
tion Actuator Unit Removal:
Disconnect the Battery connections and
remove the battery support / drip tray.
Remove the pressure accumulator on hy-
draulic actuator unit.
1. Unscrew the connectors (1a) and remove
the pipe from electric pump to hydraulic
unit (1b).
