ZEST/BOLT

ENGINE 1.3 QUADRAJET (75PS)

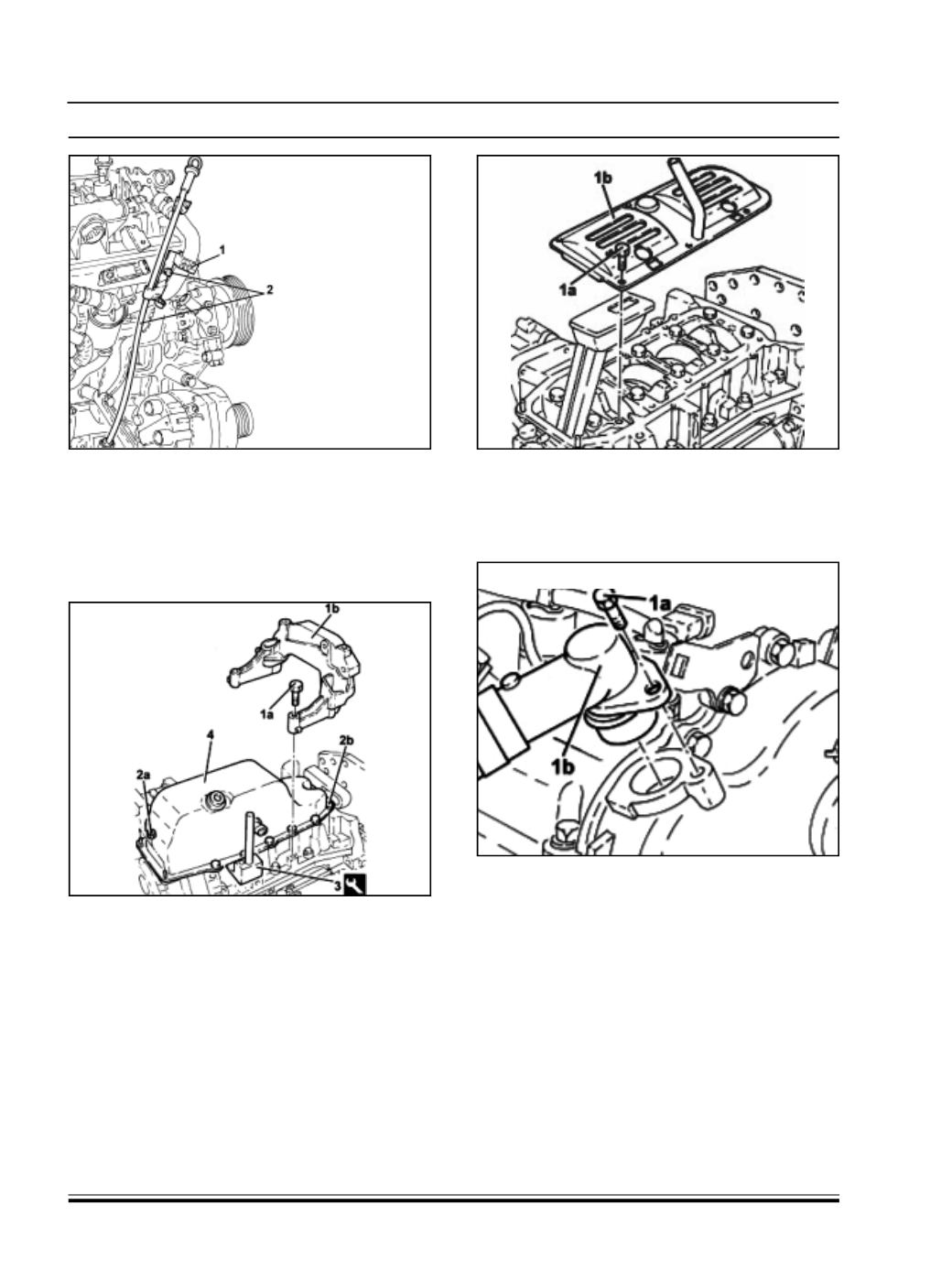

29.Remove the bolt (1a) and disconnect the connector

(1b) for the engine oil vapour recovery pipe from

the timing cover.

20.Open the oil vapour pipe retaining clip (1).

21. Remove retaining bolt and remove the engine oil

dipstick tube (2).

22.Rotate the engine through 180° on the overhaul

stand.

23.Remove the bolts (1a) and remove the support (1b).

24. Remove the nuts (2a) and the bolts (2b) securing

the crankcase sump.

25.Cut the crankcase sump sealant using the

tool (3)

part no. 287158900663 (Blade)

26.Remove the crankcase sump.

27.Remove the bolts (1a) and remove the crankcase

oil sump partition (1b).

28.Rotate the crankcase through 180° on the overhaul

stand.
