ENGINE 1.3 QUADRAJET (75PS)
30

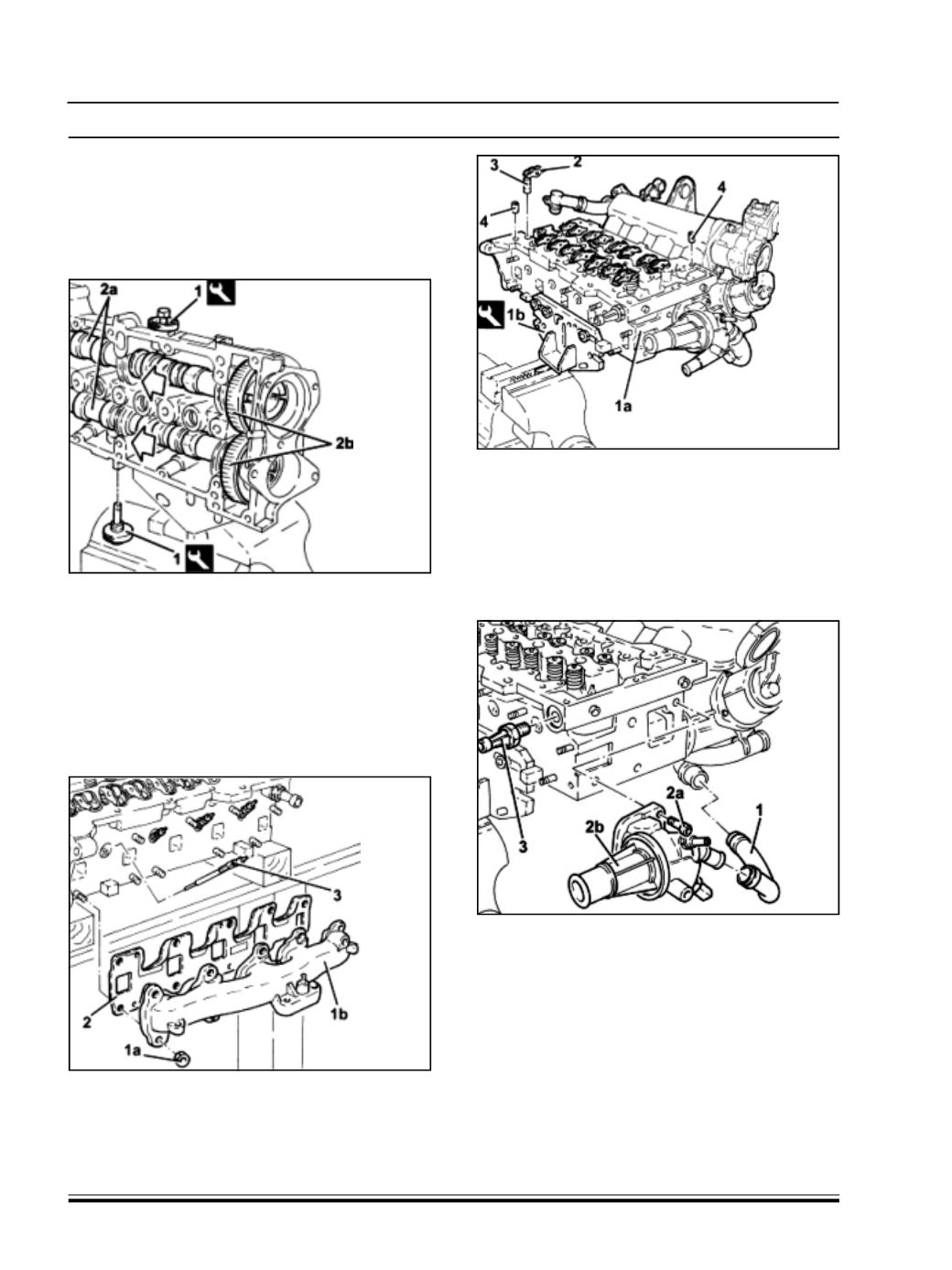

22.Loosen the collars and remove the coolant delivery
sleeve (1) from the thermost at to the coolant/
exhaust gas heat exchanger for the EGR system.
23.Remove the bolts (2a) and remove the thermostat
(2b) complete with O-ring.
24.Remove and remove the engine oil pressure
warning light switch (3).
NOTE
• Fit the tool positioning it with the millings horizontal
and checking that it is correctly inserted in the
housing in the camshaft.
10.Remove the bolts fixing the camshaft gears.
11. Remove the camshaft timing tools (1)
287158900655 (Template) for the cylinder head
extension.
12. Release the camshafts (2a), as necessary and
remove the camshaft gears (2b).
13. Completely remove the camshafts.
14. Remove the support tool complete with camshaft
housing from the vice and separate them.
15. Remove the nuts (1a) and remove the exhaust
manifold (1b).
16. Remove the exhaust manifold gasket(2)
17. Unscrew the glow plugs (3) and remove.
18. Position the cylinder head (1a) in a vice using the
tool(1b) 287158900624 (Mount).
19. Remove the valve rockers(2).
20. Remove the hydraulic tappets(3).
21. Remove the cylinder head extension locating
bushes.
