ENGINE 1.3 QUADRAJET (75PS)
28

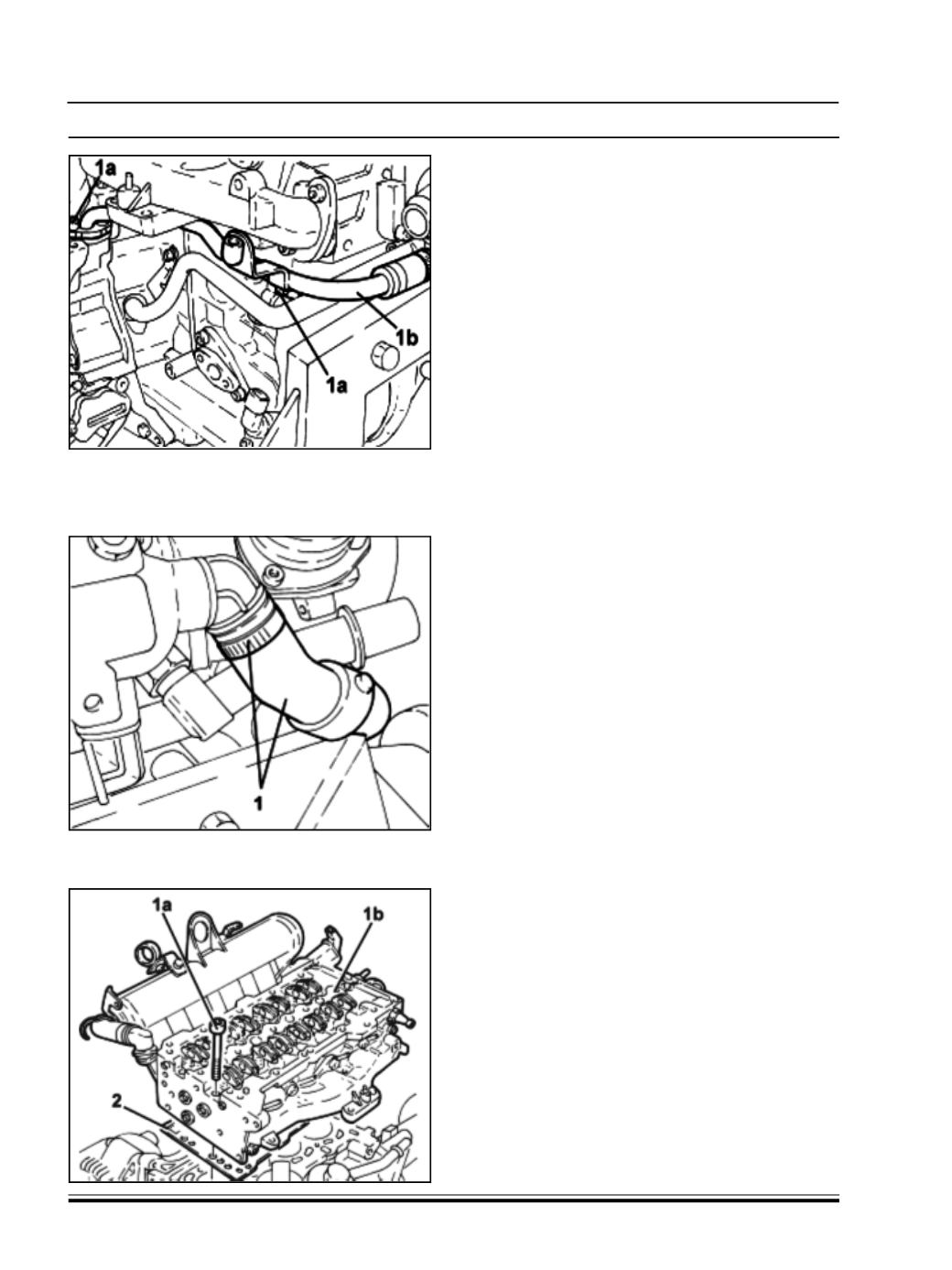

53.Loosen the band, Remove the bolts (1a) and remove
the coolant supply pipe to the engine oil heat
exchanger (1b).
54.Loosen the band and disconnect the E.G.R. pipe
(1) from the thermostat.
55.Remove the bolts (1a) and remove the cylinder
head assembly (1b).
56.Remove the cylinder head gasket (2).
