ENGINE 1.3 QUADRAJET (75PS)
26
NOTE
Q
Use newpipes from the fuel manifold to the injectors
when refitting, do not reuse it.
42.Loosen the band and disconnect the pipe (4a) from
the fuel manifold (4b).
43.Remove the bolts (5a) and remove the mounting
bracket (5b) complete with single fuel manifold
pipe (5c), fuel pressure regulator (5d) and fuel
pressure sensor (5e).

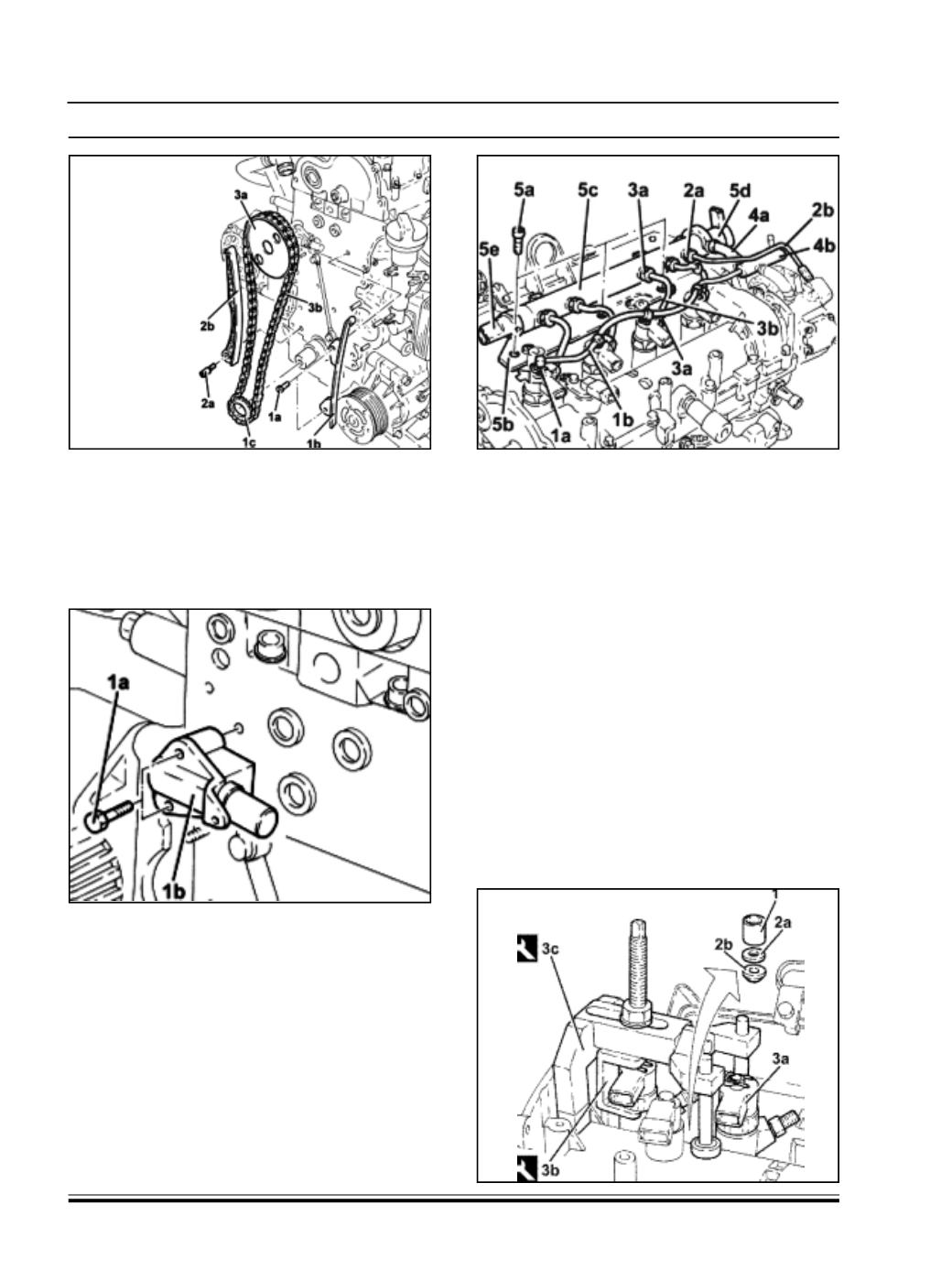

35.Remove the bolts (1a) and remove the timing chain
fixed pad (1b).
36.Remove the pin (2a) and remove the timing chain
moving plate (2b).
37.Remove the timing driven pulley (3a) together with
the chain (3b) and the timing drive pulley (1c).
38.Remove the bolts (1a) and remove the mobile
timing chain tensioner (1b).
39.Manually push the clips (1a) and disconnect the
fuel outlet pipe from the injectors (1b).
40.Loosen the connectors (2a) and remove the pipe
from the pressure pump to the fuel manifold (2b).
NOTE
Q
Use a new pipe from the pressure pump to the
fuel manifold when refitting, do not reuse it.
41.Unscrew the connectors (3a) and remove the pipe
connecting fuel manifold to injectors (3b)
