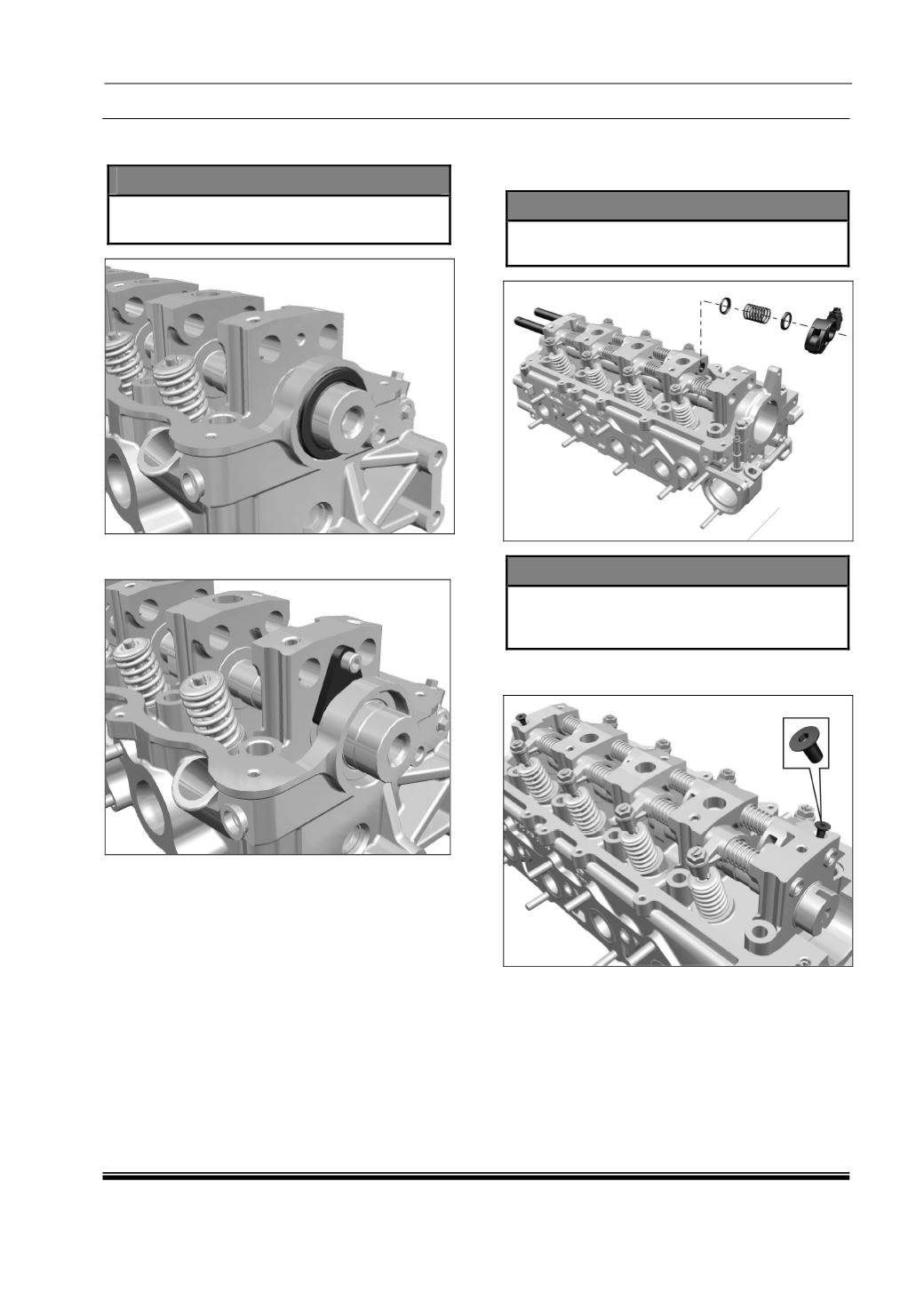

9. Using the special tool gently tap and, carefully
fit the camshaft oil seal.
SPECIAL TOOL
•
Camshaft Oil Seal Drift -
2654 5890 05 08
10. Tighten the hex screw securing the camshaft
lock plate.
11. Carefully place the rocker shafts with rocker
arms, springs and seats in the cylinder head.
12. Lubricate the rocker shafts.
NOTE
•
Ensuring the grub screw location insert the
rocker shafts in cylinder head.
NOTE
•
Ensure the rocker arm adjuster screws are
loose enough to avoid the stress on
valves.
13. Tighten the rocker shaft holder screw to the
camshaft bearing block to specified torque.
