CONSOLE

3

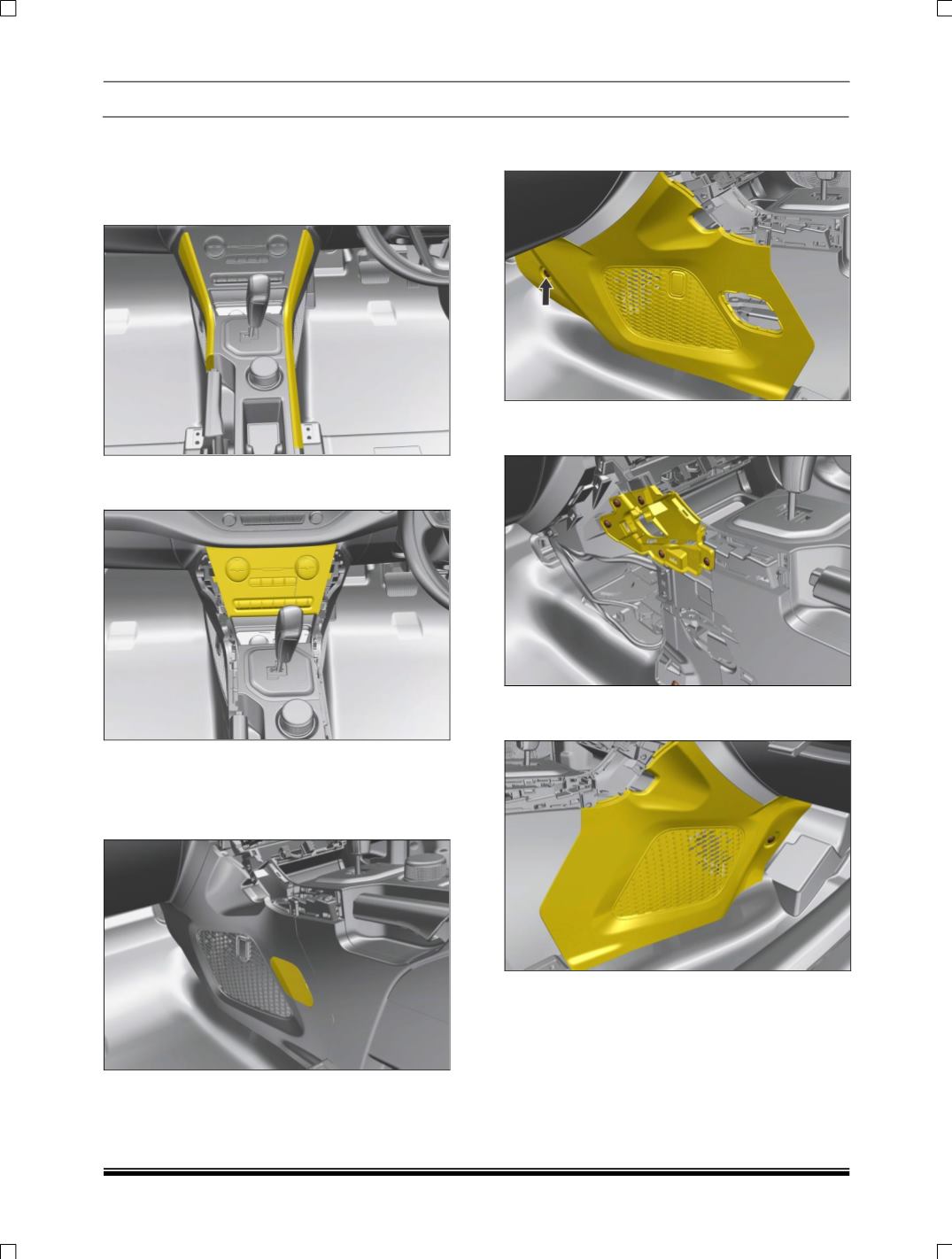

3 GEAR SHIFTER CENTER CONSOLE

REMOVAL AND RE-FITMENT ON VEHICLE:-

Removal

1. Pull out console RH and LH side panel

2. Pull out center console along with power

window switch and power socket.

3. Disconnect all electrical connectors from

center console Panel.

4. Remove Blank Cover on Assy. console side

panel front LH as shown in fig.

5. Pull out floor console tree clip & take out

Assy. console side panel front LH as shown

6. Remove FL TAP SCR C-ST4.8X16 & take

out console Assy panel LH.

7. Pull out floor console tree clip & take out

Assy. console side panel front RH as shown
