1.2L REVOTRON ENGINE
136

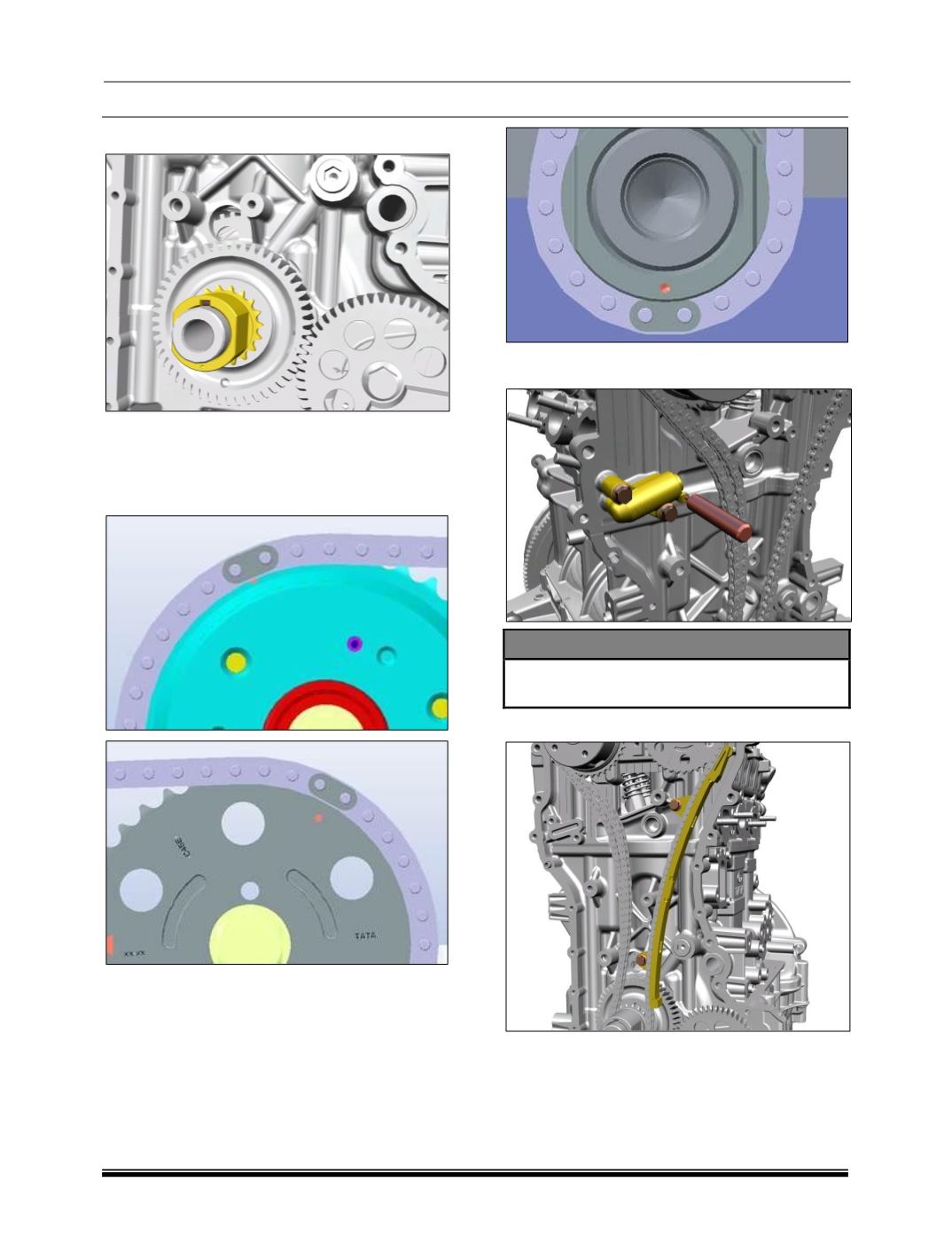

6. Lock the crankshaft sprocket by using key.
7. Now place the chain over VCT, exhaust
sprocket and crankshaft sprocket in such a
way that the 3 copper color links of chain
matches with the dimple marks of all the 3
sprockets respectively as shown.
8. Assemble the tensioner and Lock the chain
tensioner with pin.
SPECIAL TOOL
Pin-Timing chain tensioner plunger locking
–
5424 5890 06 04
9. Assemble the fixed guide rail.
