1.2L REVOTRON ENGINE
133

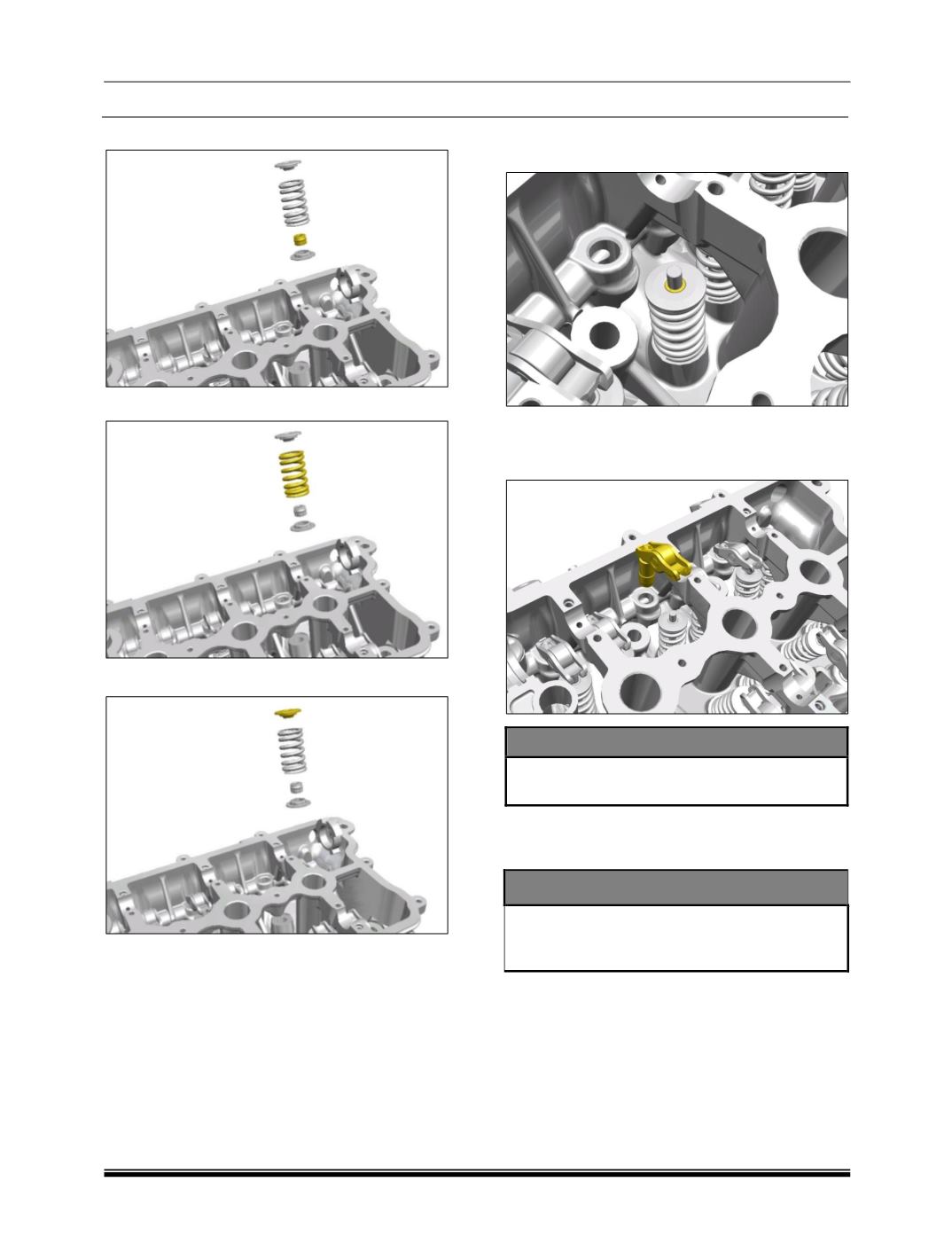

4. Assemble the valve guide seal.
5. Assemble the valve spring.
6. Assemble the valve spring retainer.
7. Using Special Tool, to compress and
assemble the valve spring lock halves.
8. Assemble the RRF along with Hydraulic Lash
Adjuster from the cylinder head as shown in
below figure.
NOTE
To avoid damage to valve tips, do not
rotate the camshaft.
9. Repeat the procedure for exhaust port, noting
the locations and components for each valve
for proper reassembly.
CAUTION
When assembling the camshaft, use care
to avoid damaging the bearing surfaces of
the cylinder head and the camshaft.
