1.2L REVOTRON ENGINE

135

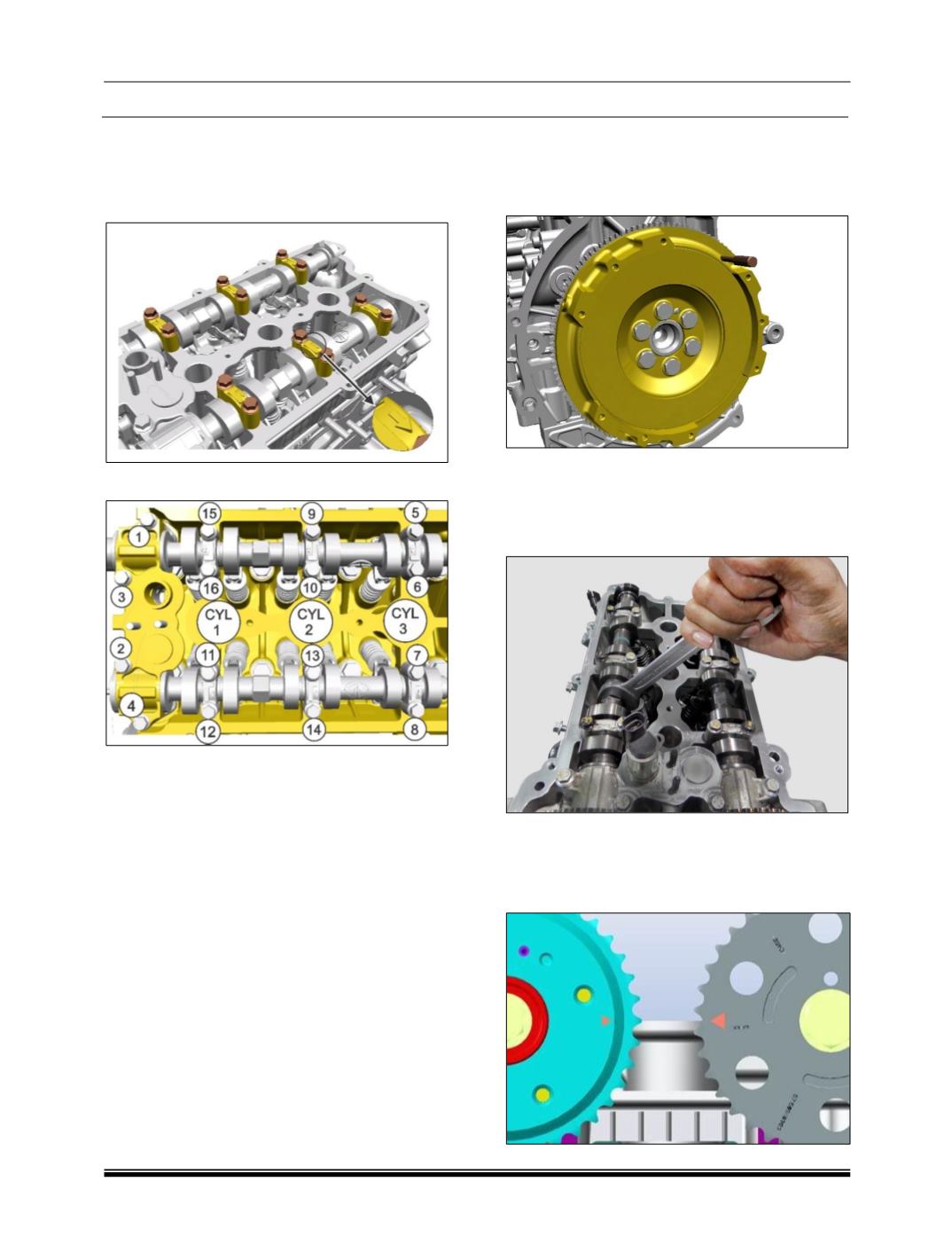

8. Assemble the Cylinder Head cam cap bolts

along with the washers, starting from the ends

of the cylinder head and working inwards to

the center. (Keep the arrow of cap in outward

direction.)

9. Refer the loosening sequence.

V. Assembly of Engine Timing Chain

1. Ensure Camshaft lobes are in correct position

(refer camshaft assembly on head).

2. Ensure flywheel locked in TDC position

3. Soft tighten the VCT and sprocket on

respective cams with locating dowel.

4. With help of spanner slightly rotate both

camshafts to match the arrow mark on VCT

and sprocket as shown.

5. Soft tighten the VCT on intake camshaft and

exhaust sprocket on exhaust Camshaft with

locating dowel and bolts as shown along with

Camshaft Sensor Plate. (Ensure the direction

of the arrows opposite to each other.)
