1.2L REVOTRON ENGINE

138

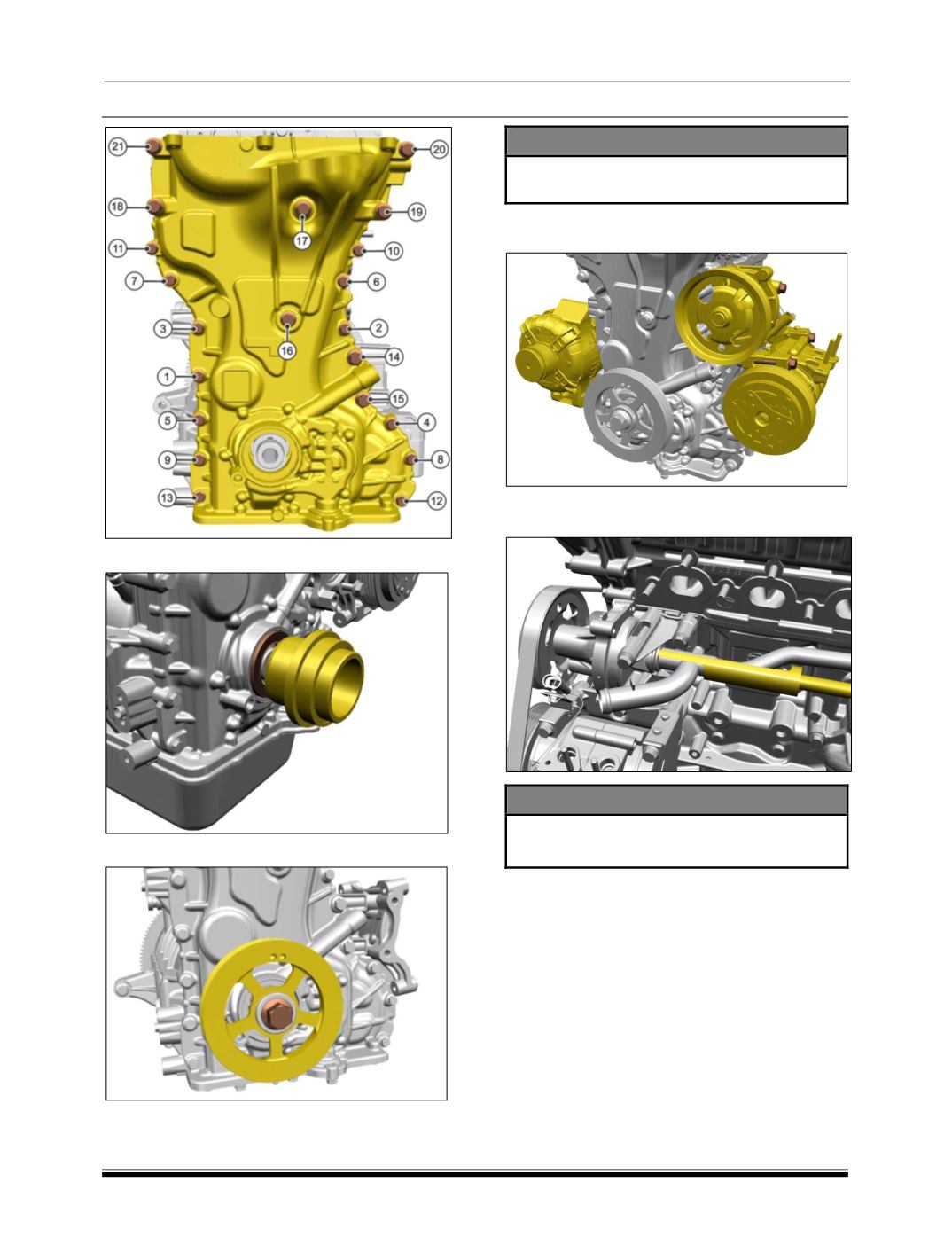

16. Assemble the crankshaft front oil seal.

17. Assemble crankshaft Pulley.

NOTE

Ensure the flywheel in lock position during

crankshaft pulley assembly.

18. Assemble the Alternator, Compressor, and

Water pump.

19. Assemble the water pump pipe and seal by

using special tool.

SPECIAL TOOL



Tool-Water pipe installation:-

5424 5890 20 02
