1.2L REVOTRON ENGINE

134

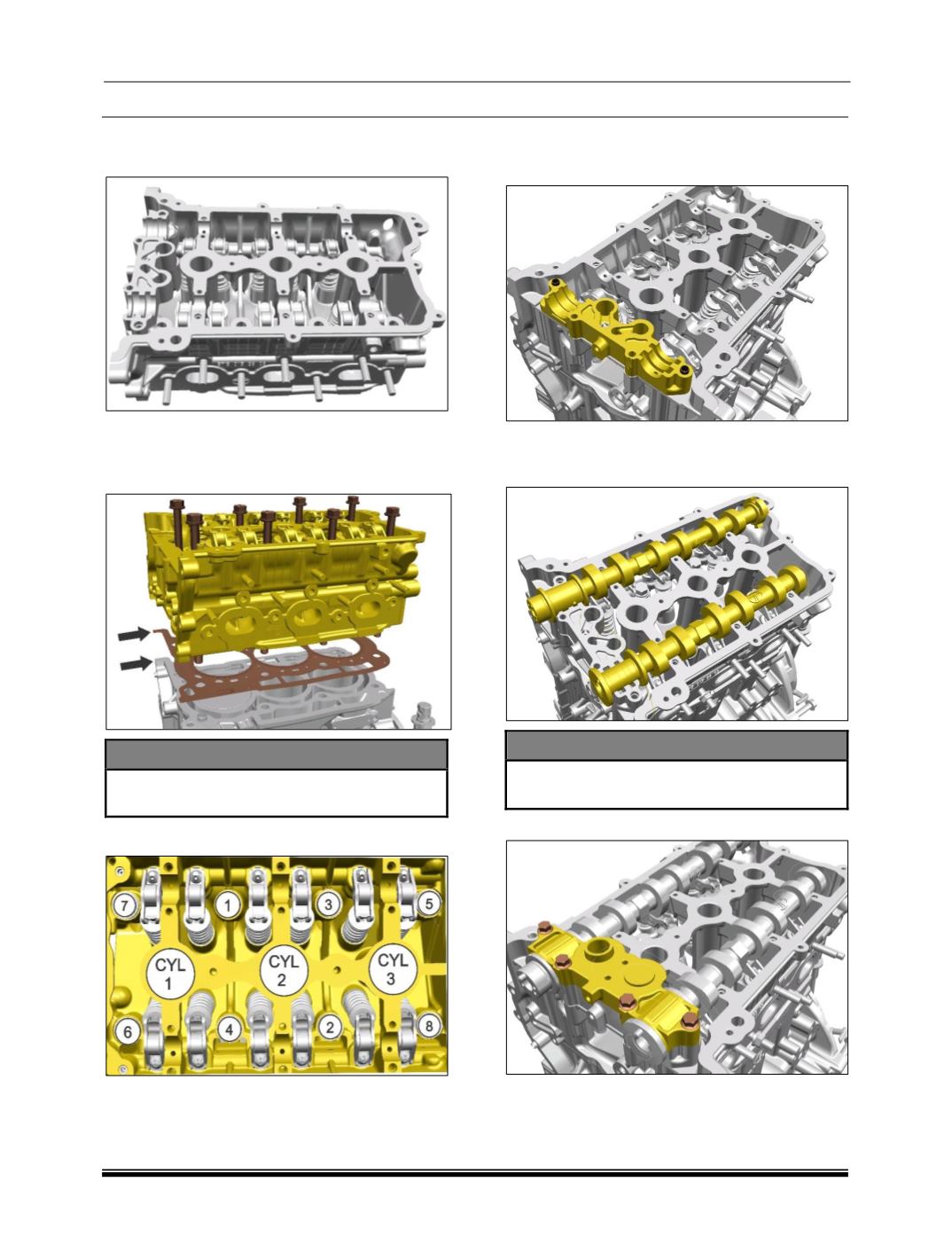

IV. Assembly of Cylinder Head

1. Place the cylinder head on the table.

2. Mount the cylinder head gasket over the

block.

3. Assemble the cylinder head on the block.

NOTE

Match the gasket profile to Cylinder block

surface as shown in figure..

4. Tighten the fasteners as per given sequence.

5. Assemble the lower ITG Bearing Cap with

locating dowels. Ensure the NRV (Non return

valve) in place inside lower ITG.

6. Place the camshafts to their respective

location in such way that the cam lobes of first

cylinder are opposite to each other as shown.

NOTE



Cam lobes should not be pressing any

valves.

7. Assemble the ITG Bearing Cap Upper.
