1.2L REVOTRON ENGINE

141

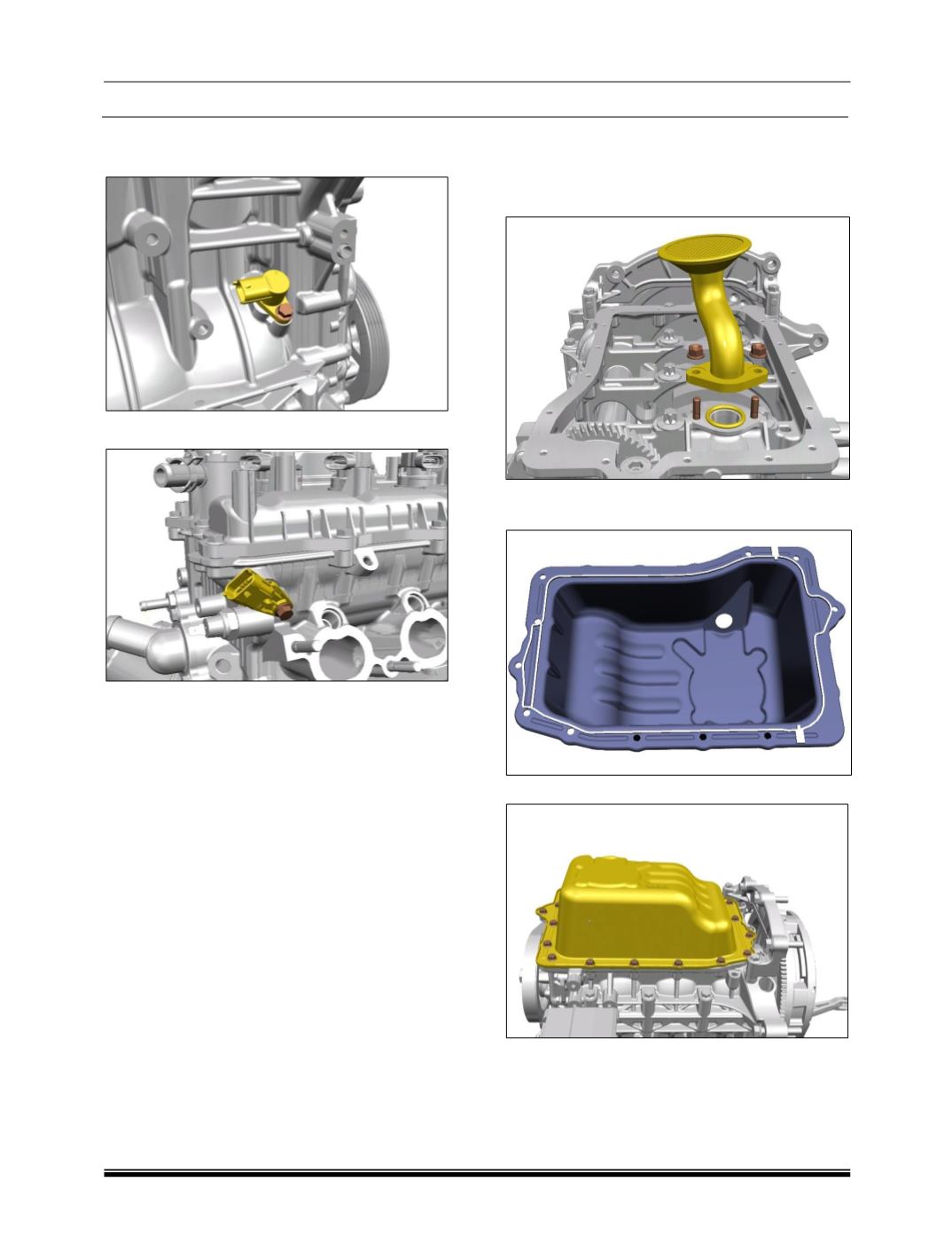

4. Refit the Crank Angle/RPM Sensor to the

Engine Block.

5. Refit the Cam Phase Angle Sensor.

VIII. Assembly of Oil Sump

1. Rotate the engine at 180

0

for fitment of oil

sump.

2. Refit the Lube Oil Strainer along with O-Ring.

Spread the liquid sealant on oil sump without

spilling the sealant in holes.

3. Fit the oil sump and tighten it.

4. Refill the engine oil.
