1.2L REVOTRON ENGINE
128
NOTE
Ensure the crankshaft is free in rotation.
Ensure the dowel pin.

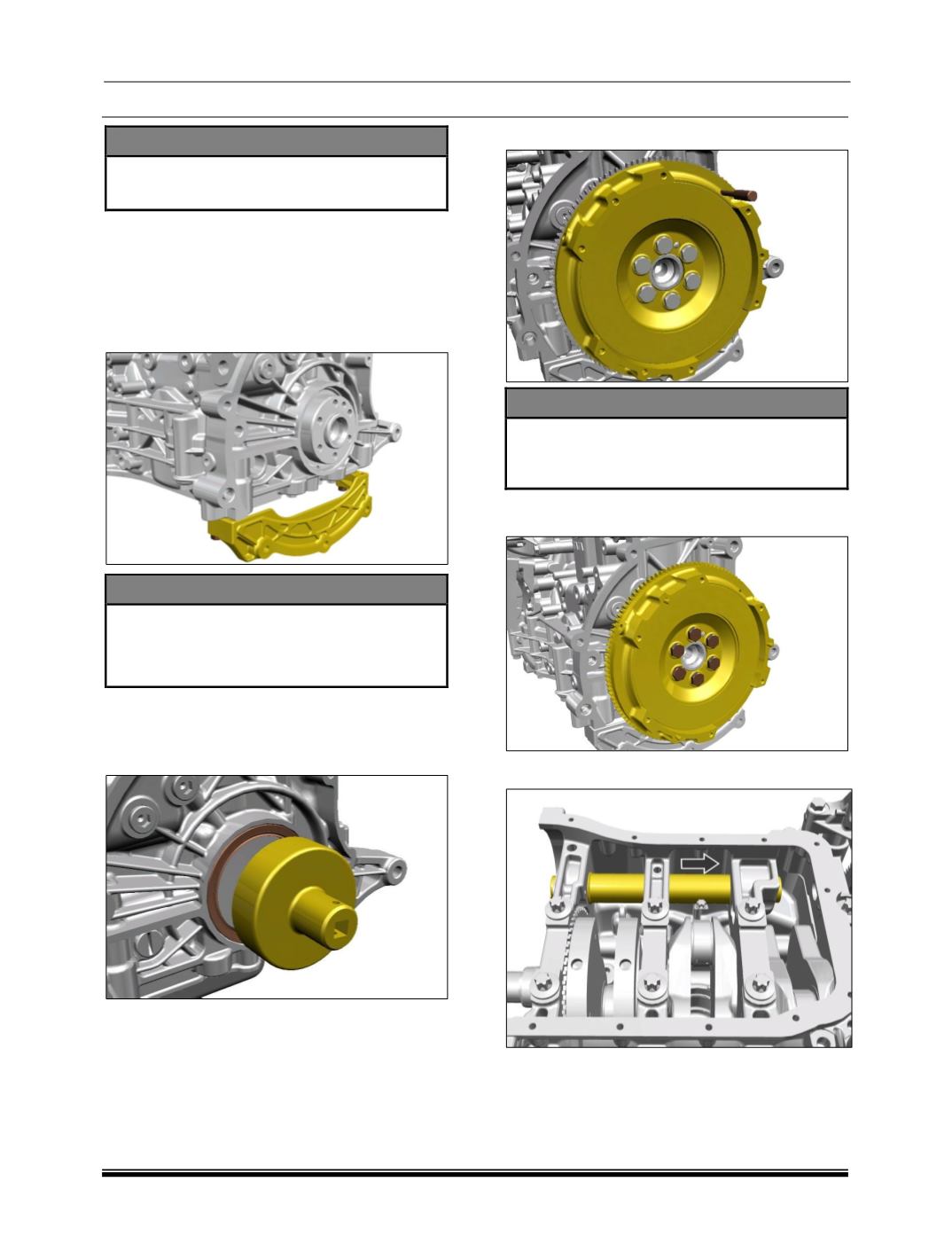

13. Fix the dial gauge and check crankshaft axial
play. It should be within specified limit (0.1 to
0.3 mm).
14. Check for free rotational torque.
15. Assemble stiffener plate by tightening two
fasteners.
NOTE
Mating surfaces of crankcase and rear
cover should be cleaned.
Apply grease on crankshaft rear cover
gasket.
16. Apply the sealant on outer surface of the oil
seal.
17. Assemble Crankcase Rear Cover with Rear
oil seal.
18. Lock the flywheel as shown using special tool.
SPECIAL TOOL
Flywheel locking Tool in Standalone
condition -
2702 5890 06 04
19. Assemble flywheel by tightening mounting
bolts.
20. Insert the balancer shaft into the bed plate.
