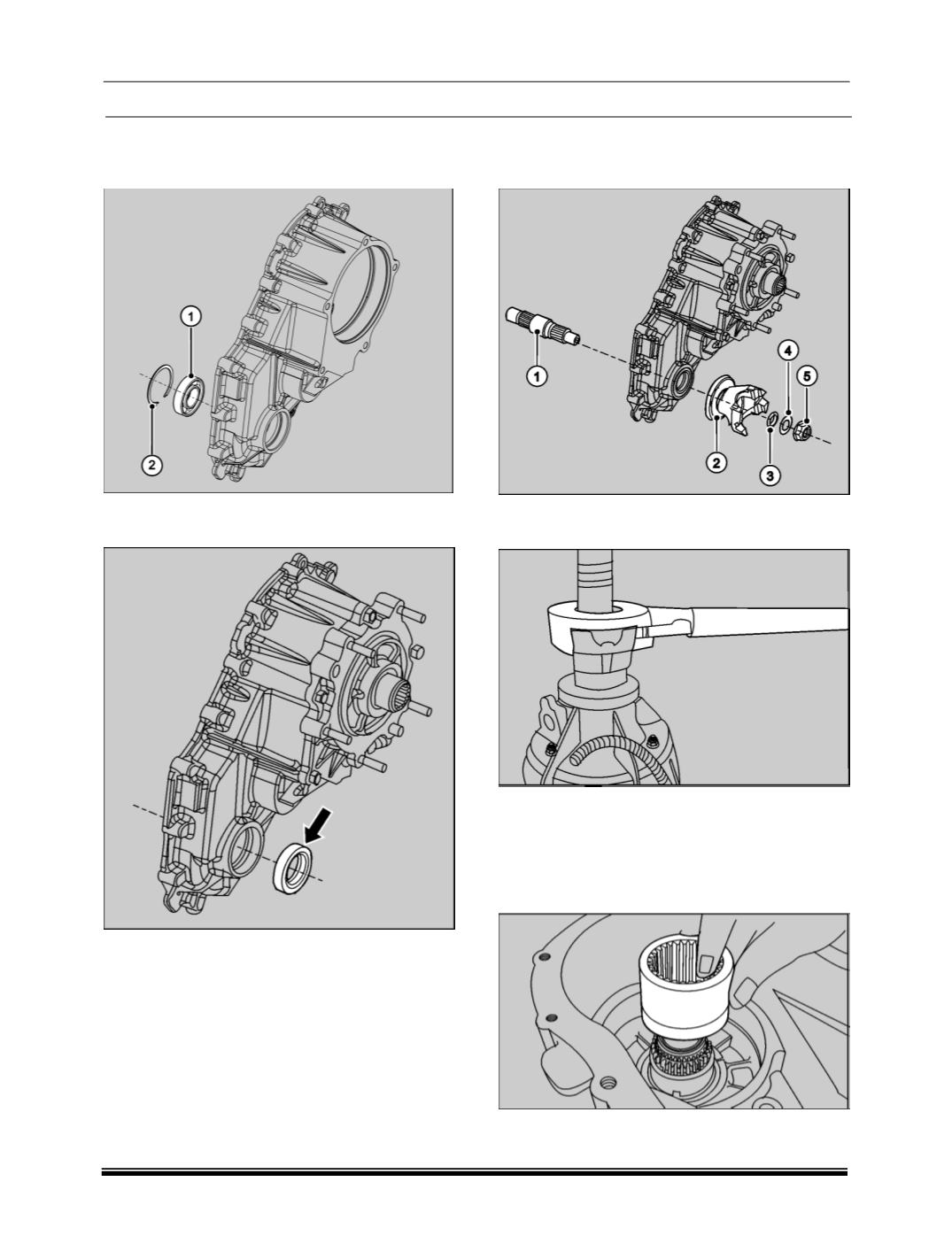

2. Press the ball bearing

(1)

using a drift

(Part No.

287058902604)

into the case and install the

snap ring

(2)

3. Install the new oil seal, by pressing it into the

case.

4. Make sure that all parts are correctly and firmly

installed into the case.

5. Position the output shaft

(1)

in transfer case

and install the end yoke assembly

(2)

, oil seal

(3)

, washer

(4)

and nut

(5)

6. Holding the end yoke with the help of yoke

holder, tighten the nut.

7. Invert the case assembly on the fixture for

further assembly.

C. ASSEMBLY OF OUTPUT SHAFT AND

GEROTOR PUMP

1. Place the collar on to the input shaft.
