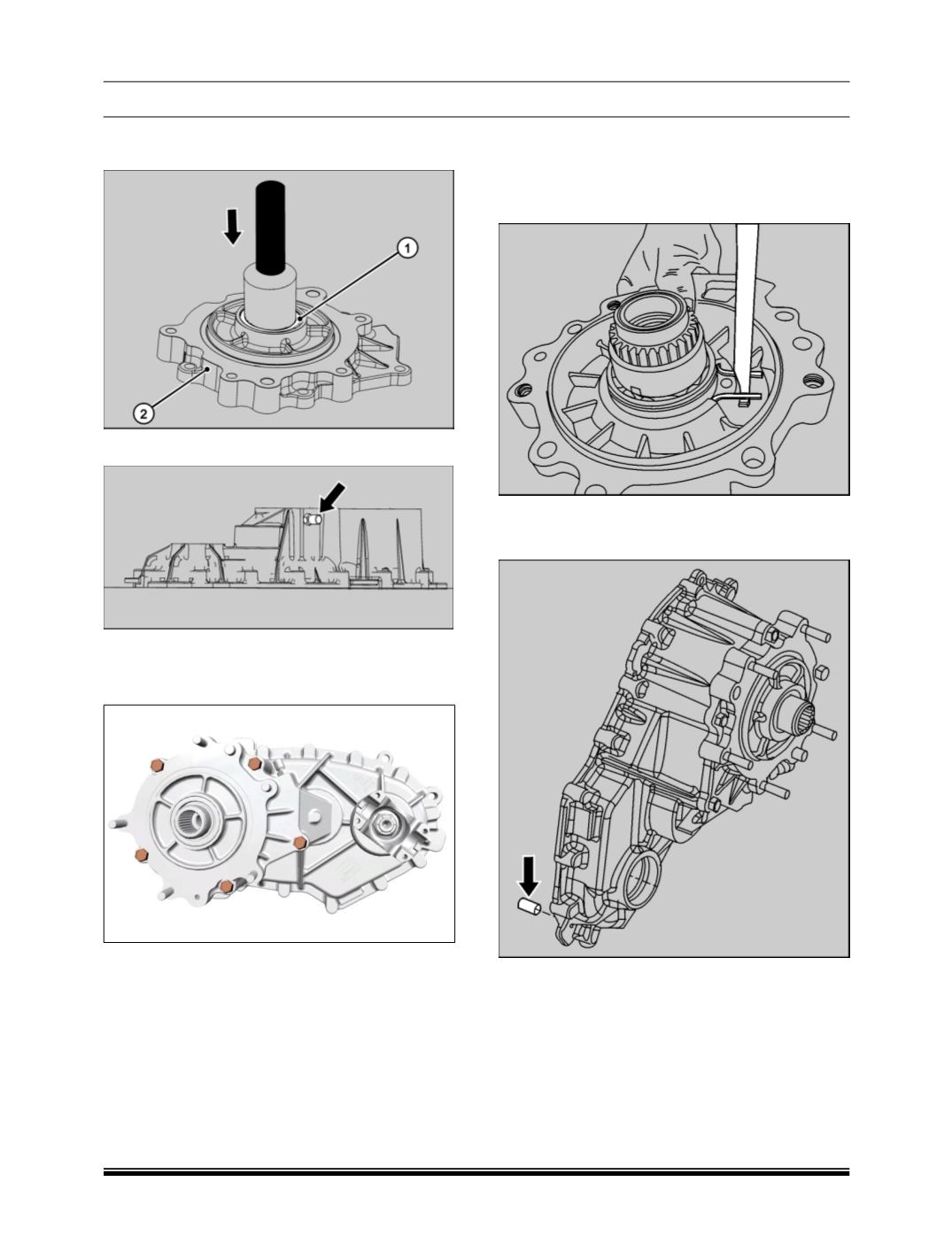

2. Press the oil seal

(1)

into the front adapter

(2)

Using seal driver

(Part No.2870 5890 26 02)

3. Install the breather on to the case.

4. Position the front adapter assembly on the case

and place properly and tighten five bolts of front

adapter.

5. Position the input shaft assembly over front

adapter and engage into bearing groove by

expanding the ends of snap ring using snap

ring plier

(Part No. 287058902603)

and

(Push

Input shaft in to the front adapter)

B. FRONT OUTPUT SHAggFT AND YOKE

1. Insert the two new dowel pins.
