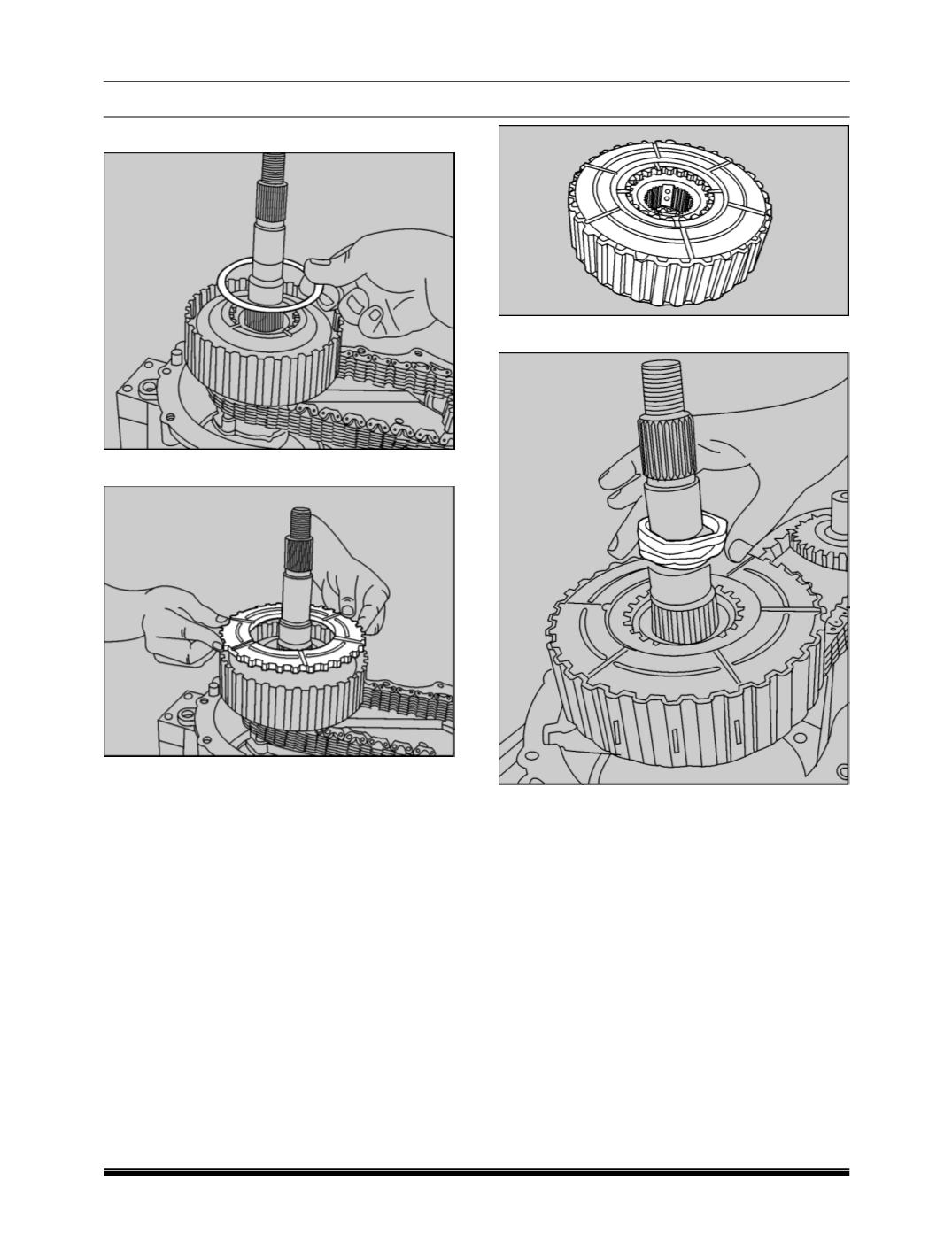

9. Place washer insulator.

10.Place armature plate.

NOTE

The oil grooves provided on the armature plate

should face upwards. And after assembly of the

clutch pack and the upper face of the armature

plate should be at the same level as the clutch

pack housing gear (i.e. it should neither protrude

nor sink in) if not reassemble the clutch pack

assembly.

11.Place wave spring.
