GEAR BOX 6450

36

16.

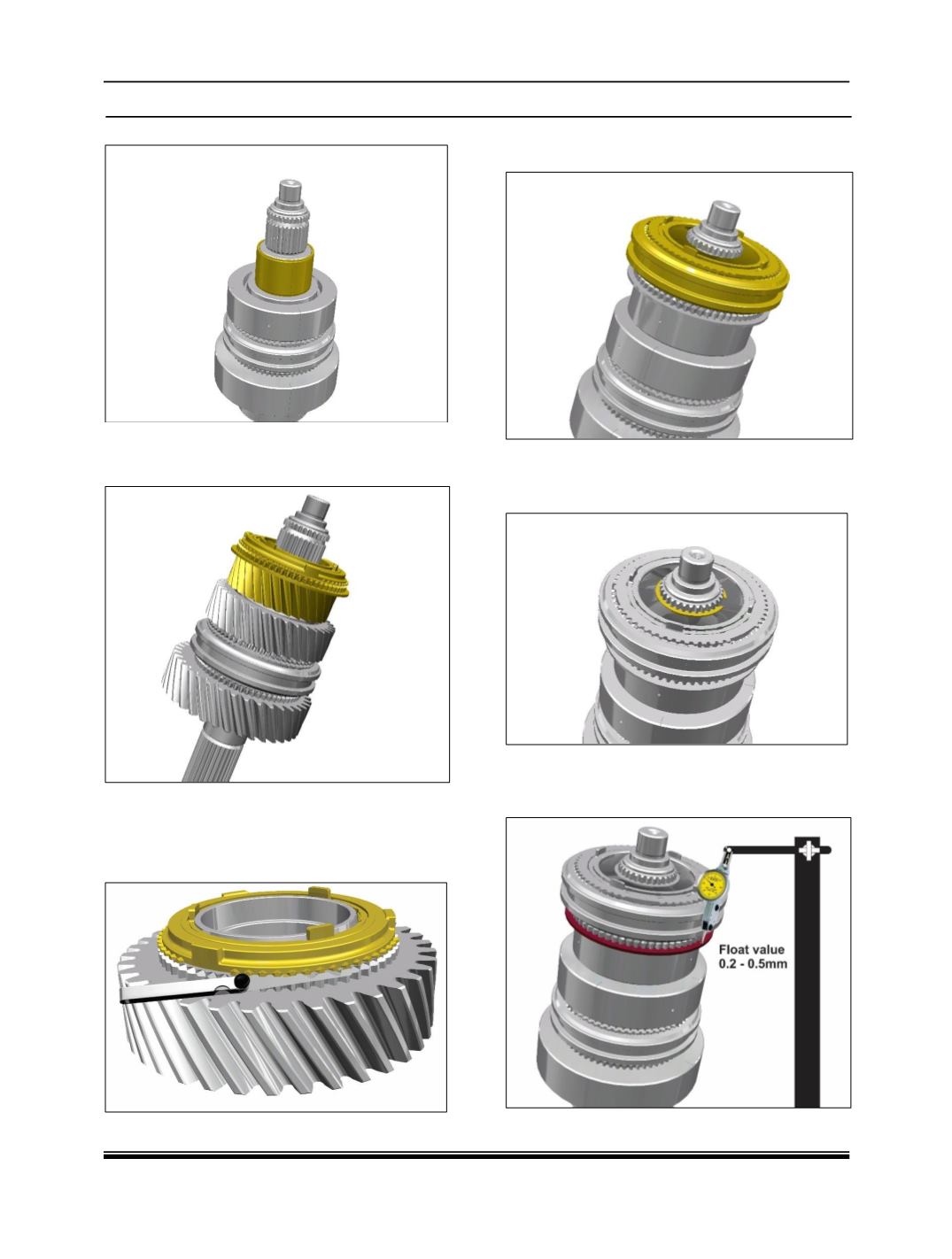

Place the 3

rd

gear needle cage bearing.

17. Slide the 3

rd

gear subassembly along with the

double synchro cone pack over the main

shaft.

NOTE:

Measure the double synchro cone gap with the

help of feeler gauge. Tolerance specification for

gap is 1.05 mm to 1.25 mm.

18. Slide the 3

rd

, 4

th

engaging gear sub assembly

along with double synchro cone pack.

19. Select the circlip of exact thickness so the

engaging gear moment is completely

arrested.

20. Hold the assembly in vertical position and

measure the axial play (Float Value) of 3

rd

gear assembly with the help of dial gauge.
