HEXA

GEAR BOX 6450

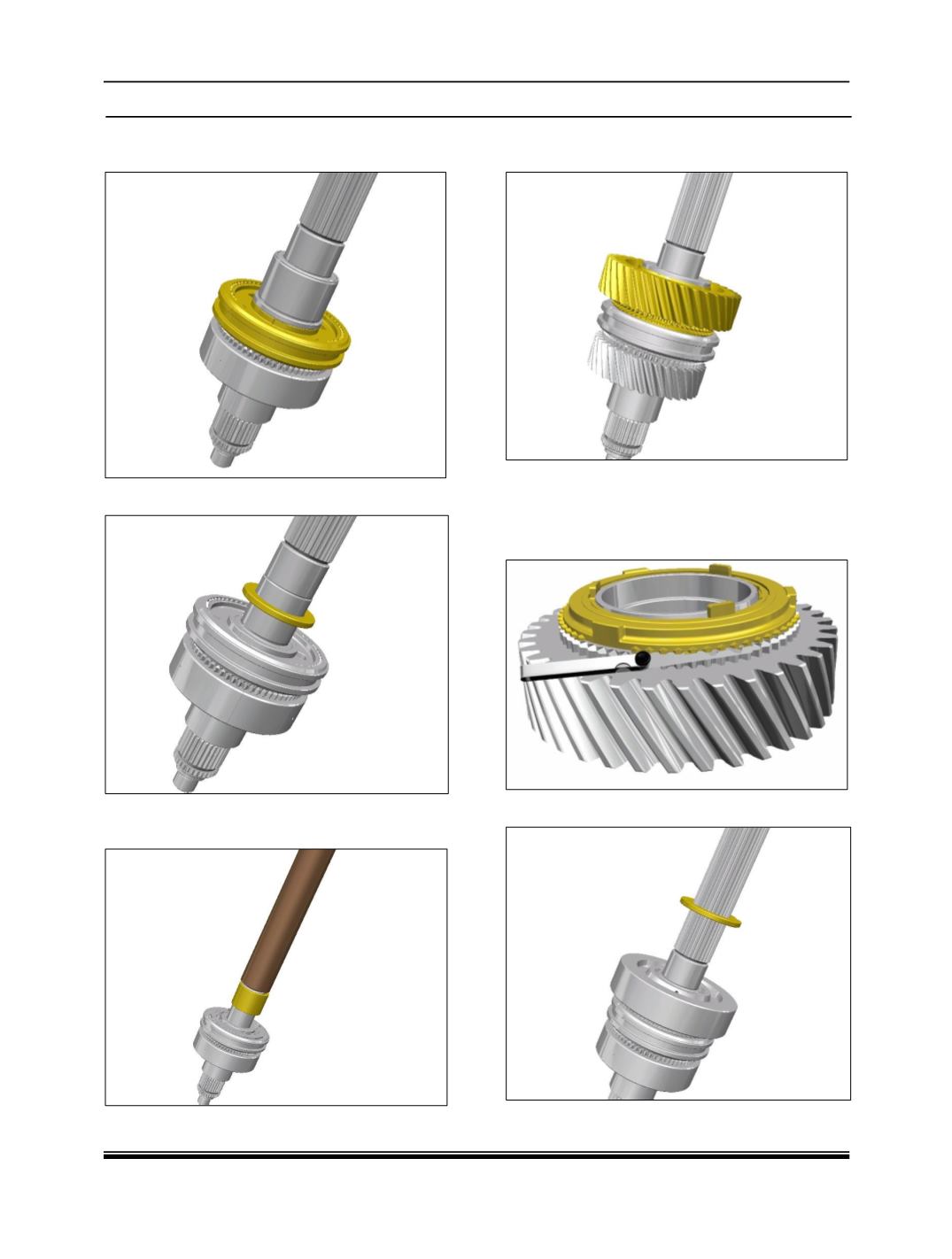

7. Slide the 1

, 2

engaging gear sub assembly

on main shaft.

8. Insert the spacer.

9. Push the bush with the help of suitable drift

and slide needle cage bearing.

10. Slide the 1

gear sub assembly and triple

synchro cone pack over the main shaft.

NOTE:

Measure the triple synchro cone gap with the help

of feeler gauge. Tolerance specification for gap is

1.15 mm to 1.40 mm.

11. Insert the spacer.
