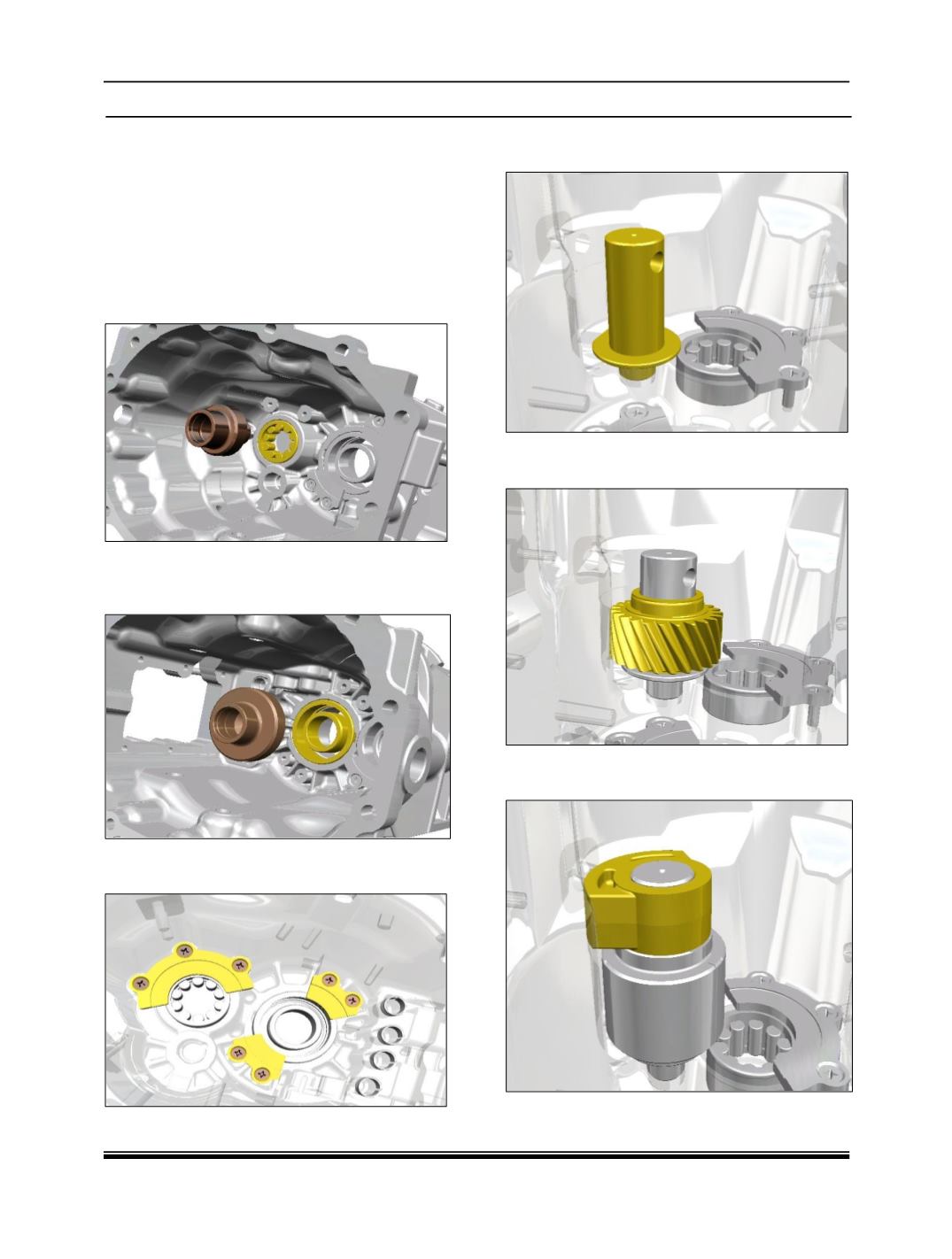

3.4 GEAR BOX ASSEMBLY ON BENCH
PROCEDURE:
1. Clean all the dis-assembly parts to be reuse
for assembly and arrange the new O-rings
and gasket set for assembly.
2. Follow the below procedure for the assembly
of rear housing.
A. Assemble counter shaft cylindrical roller
bearing in rear half housing by using tool (Part
No: 5403 5890 26 07)
B. Assemble main shaft cylindrical roller bearing
in rear half housing by using proper tool (Part
No: 5403 5809 26 09).
C. Fit the Bearing retainer plates of main shaft
and counter shaft.
D. Assemble the spacer and shaft of reverse
idler gear matched with it slot.
E. Insert the needle cage bearing with reverse
gear.
F. Proper align the locator piece with the reverse
gear hexagonal bolt and tighten the bolt.
