GEAR BOX 6450

29

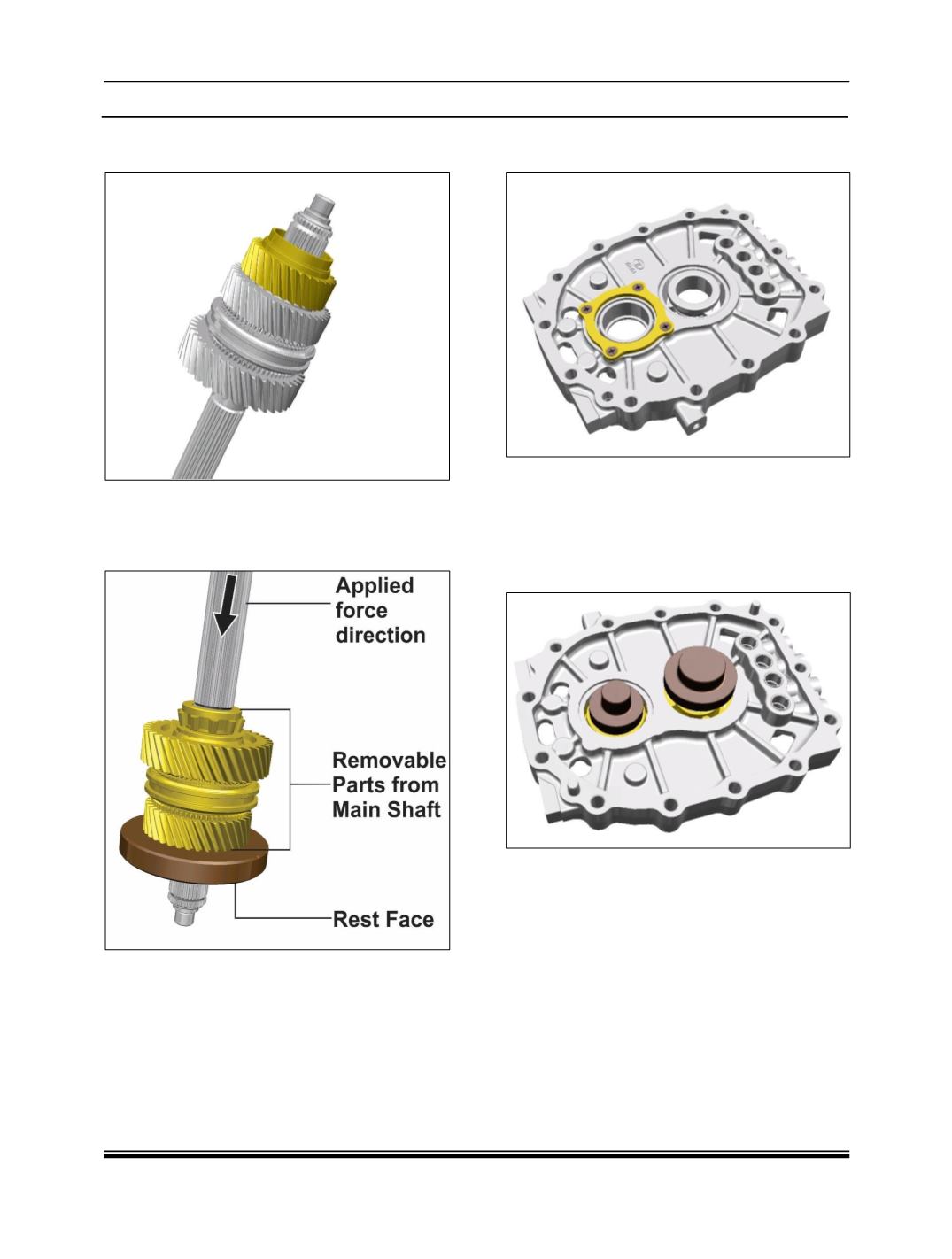

46. Remove the 3

rd

gear sub assembly along with

needle cage bearing.

47. Remove the remaining 1

st

and 2

nd

gears from

Main shaft by using the ring tool (Tool No:

5403 5890 26 11) with the help of press

machine.

NOTE:

Shaft assembly to rest on ring supported on 2

nd

gear and press from rear end of main shaft.

48. Remove the intermediate plate with its roller

bearings.

NOTE:

Proper care to be taken while removing the

(4No’s) cross counter sunk screws.

49. Remove the counter shaft roller bearing by

using proper drift and the main shaft taper

roller bearing by using proper drift.

NOTE:

Bearings need to be replaced if found damaged.
