INSPECTION

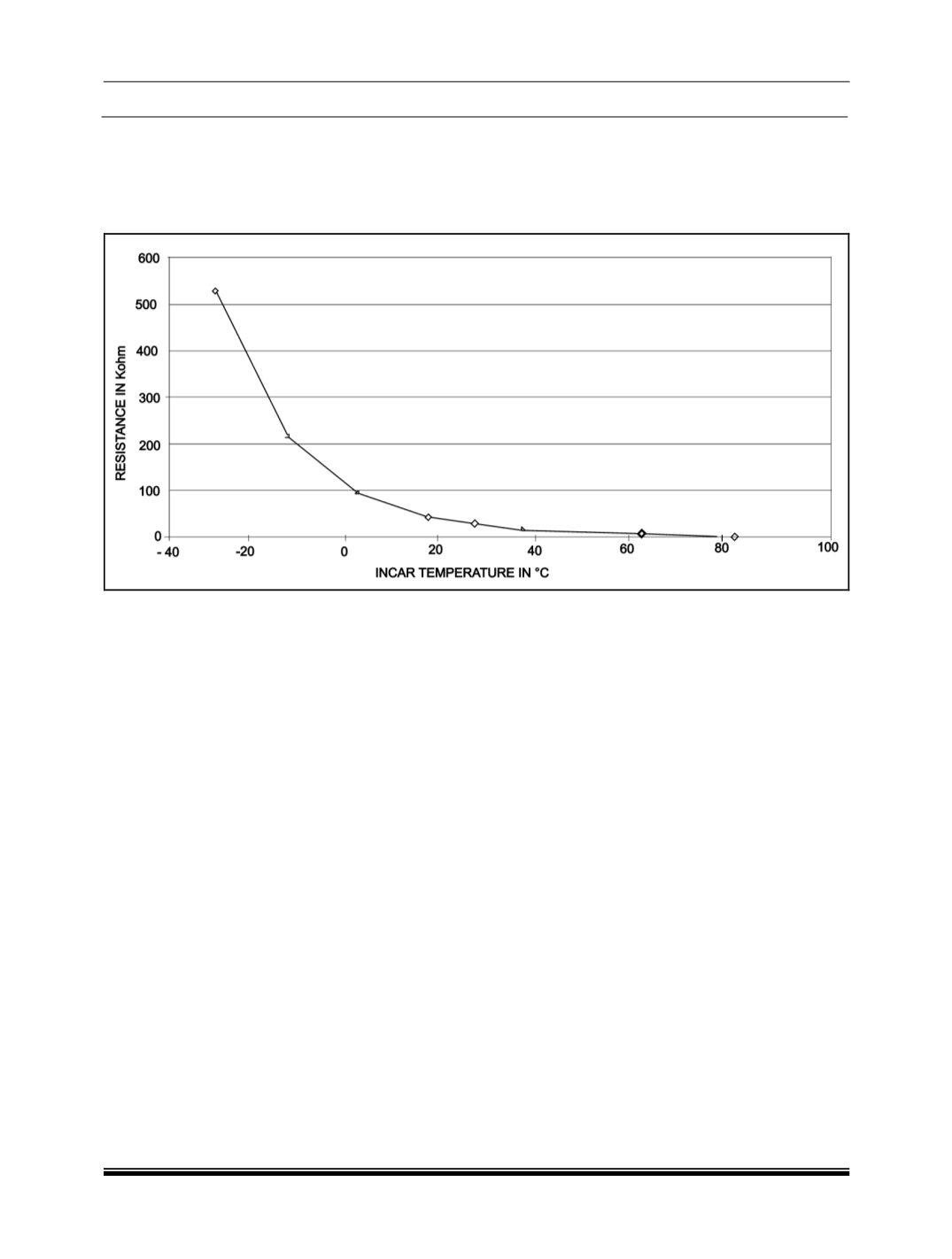

Measure the resistance between the sensor termi-

nals at least two or more temperature conditions, the

resistance should approximately as per the illustrat-

ed values.

NOTE

When checking, the temperature conditions should

not exceed the range shown in the diagram.

INSTALLATION

1. Fit the sensor by tightening its two screws.

NOTE

While fitment Incar sensor connector orientation is

downward.

2. Connect the electrical connection.

3. Fit the instrument cluster cover.

4. Fit the steering column upper cover.
