HEXA

HVAC

REMOVAL

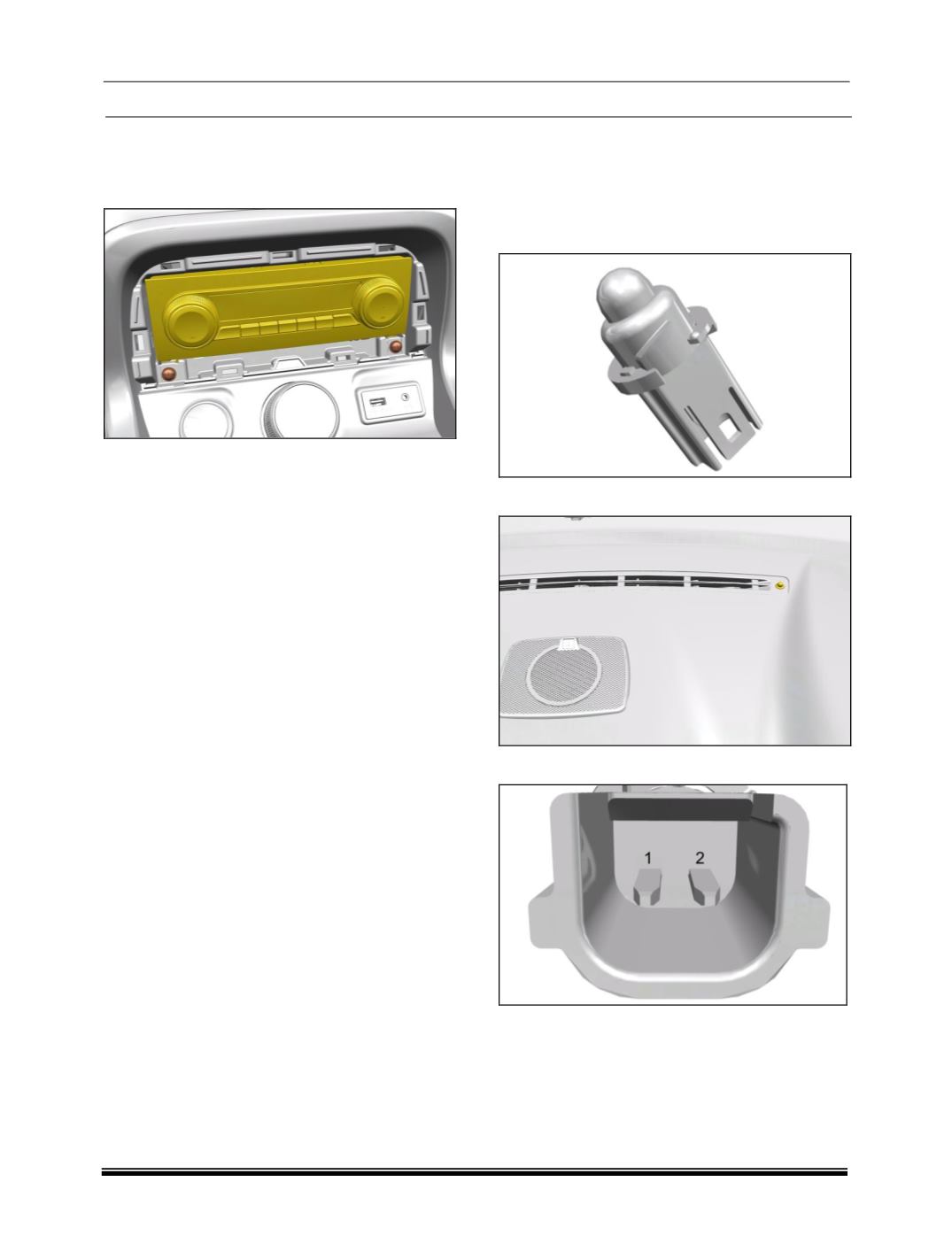

1. Remove the center utility bin.

2. Remove two mounting screws of control panel.

1. Disconnect the electrical connection of panel.

2. Take out the panel.

REFITMENT

3. Connect the electrical connection of control panel

4. Fit the control panel by tightening its two screws.

5. Fit the centre utility bin

D. SOLAR LOAD SENSOR

FUNCTION:

Sun Load sensor is a photodiode that measures the

radiative solar load. It provides the output current

proportional to solar heating.

LOCATION:

It is fitted on front defrost grill.

CONNECTOR DETAILS
