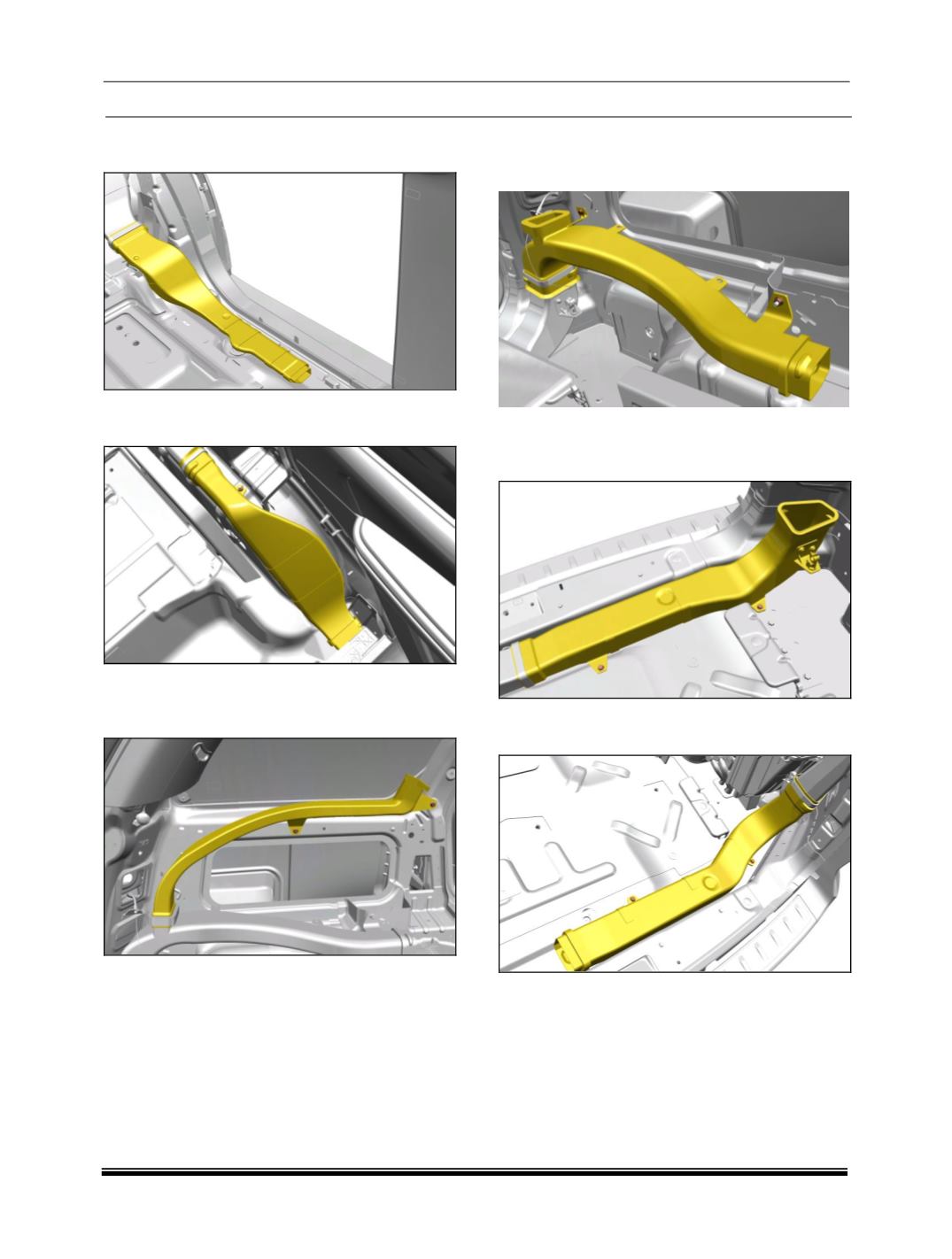

10. Pull upwards and separate the floor duct
(LHS)
from the wheel arch duct.
11.Loosen and remove the flange nut and separate
the wheel arch duct form “D” pillar duct
(LHS).
12.Loosen and remove mounting bolts and separate
the “C” pillar duct
(LHS)
from the “D” pillar duct
(LHS)
.
13.Loosen and remove the mounting bolt and nut.
Disconnect the harness clamping from the duct
(LHS)
and separate the same from tailgate duct.
14. Loosen and remove three mounting bolts and
take out the tailgate ducts
(LHS)
from the tailgate
duct
(RHS)
.
15.Separate the RHS tailgate duct from “D” pillar
duct
(RHS).
16.Disconnect the connections of rear blower actua-
tor.
