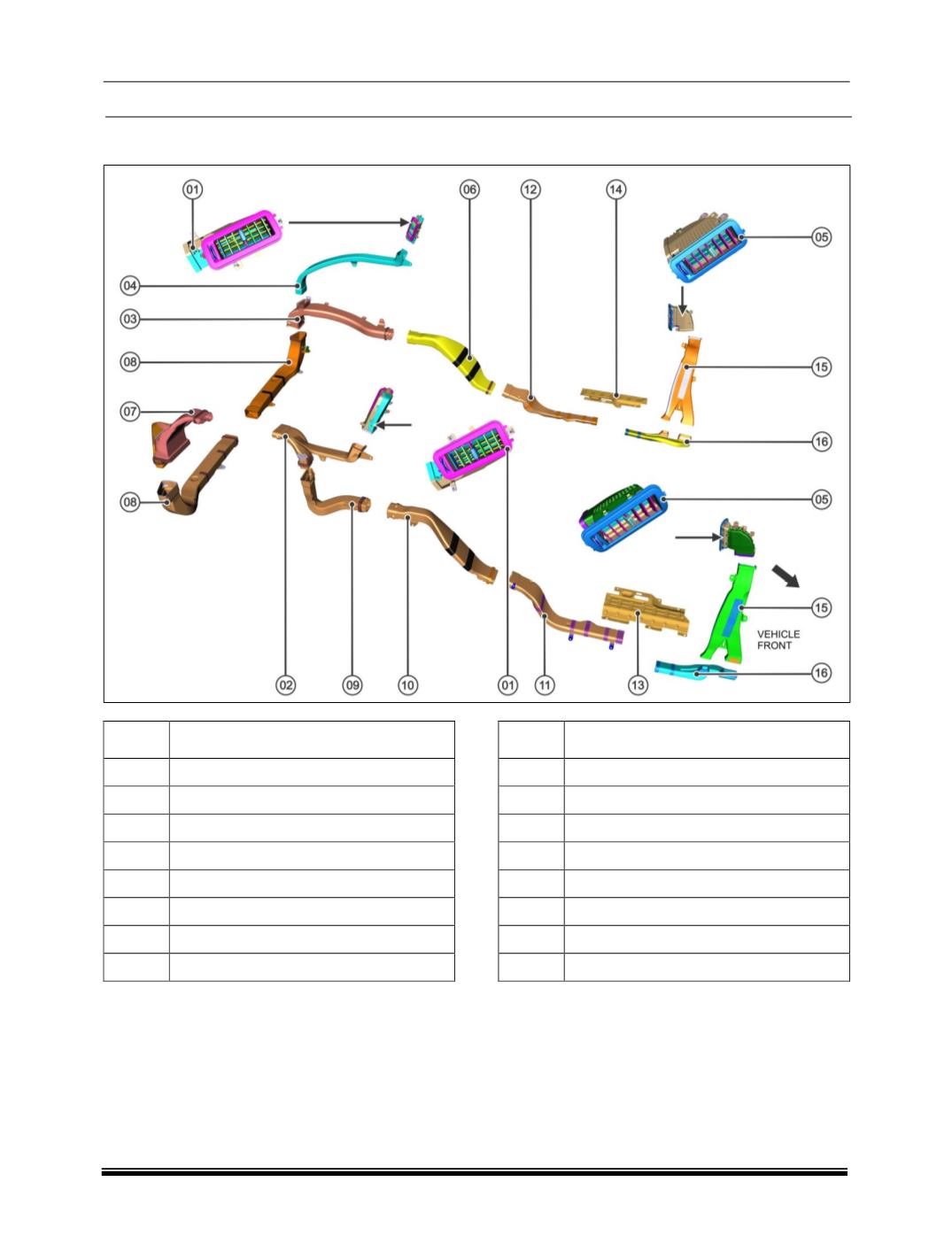

M. REAR AC DUCTING

DESCRIPTION

01

C pillar air vent assembly

02

Duct C pillar RH

03

Duct D pillar LH

04

Duct C pillar LH

05

B pillar air vent assembly

06

Duct wheel arch LH

07

Duct D pillar RH

08

Duct tailgate

DESCRIPTION

09

Duct C pillar rear panel RH

10

Duct wheel arch RH

11

Duct C floor RH

12

Duct C floor LH

13

Floor duct protection bracket RH

14

Floor duct protection bracket LH

15

Duct B pillar

16

Duct B-Pillar RH
