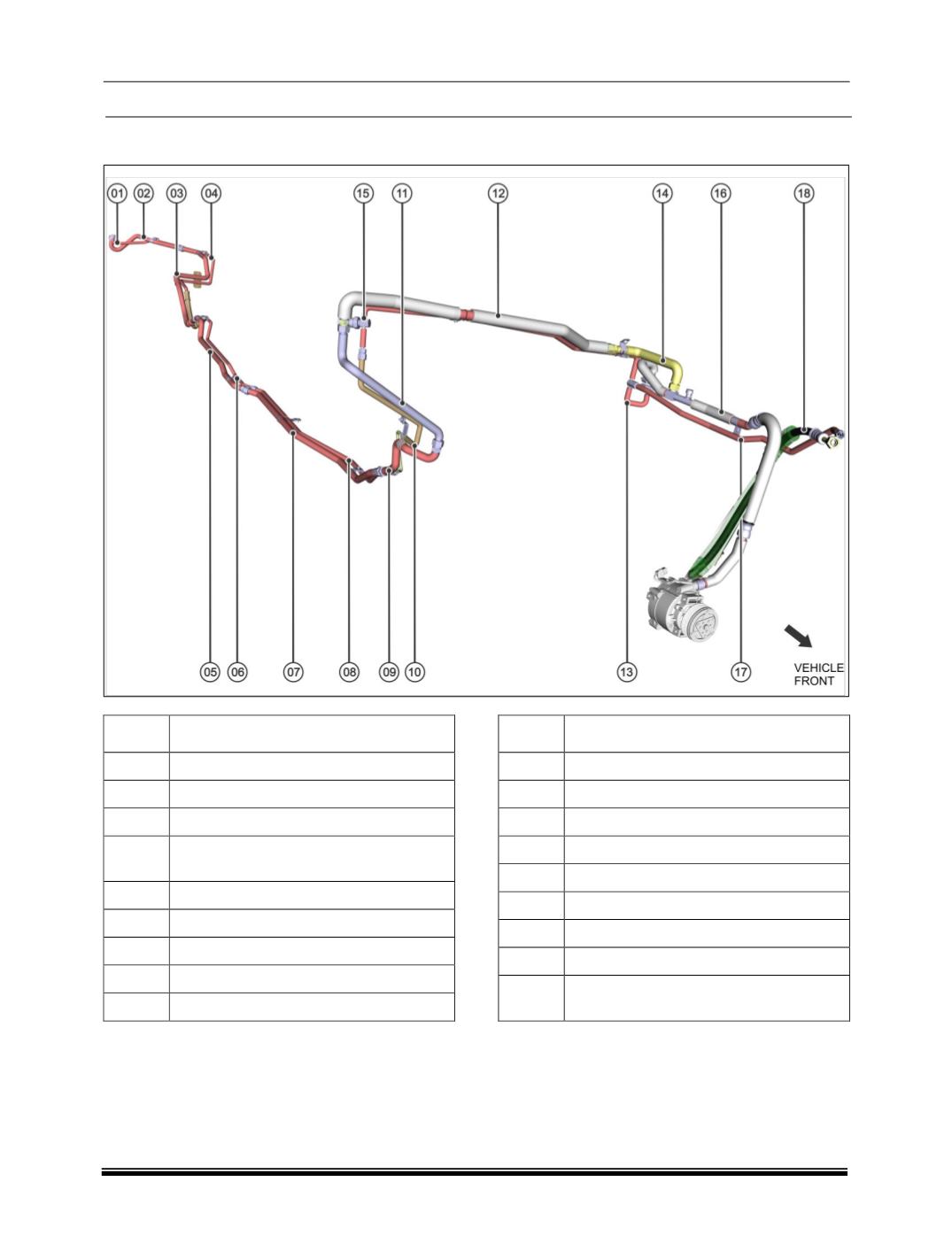

L. REFRIGERANT HOSES/PIPES
DESCRIPTION
01 Assy. Liquid Pipe Rear AC Out
02 Suction Pipe Rear AC Out
03 Suction Tube Assy Rear Flexible Type
04 Suction Pipe Assy Liquid Rear AC
Flexible
05 Assy Tube Suction Rear AC3
06 Assy Tube Liquid Rear AC 3
07 Assy Tube Suction Rear AC 2
08 Assy Tube Liquid Rear AC 2
09 Suction Pipe 4 To Rear AC
DESCRIPTION
10 Liquid Pipe 4 To Rear Ac
11 Suction Pipe 3 Txv-Rear
12 Suction Pipe 2
13 Liquid Pipe 3 Condenser To Txv
14 Suction Pipe 1 For Rear
15 Assy Tube Liquid To Hvac
16 Suction Pipe Txv To Compressor
17 Liquid Pipe 2 Condenser To Txv
18 Discharge Pipe Compressor To Con-
denser
