HEXA

HVAC

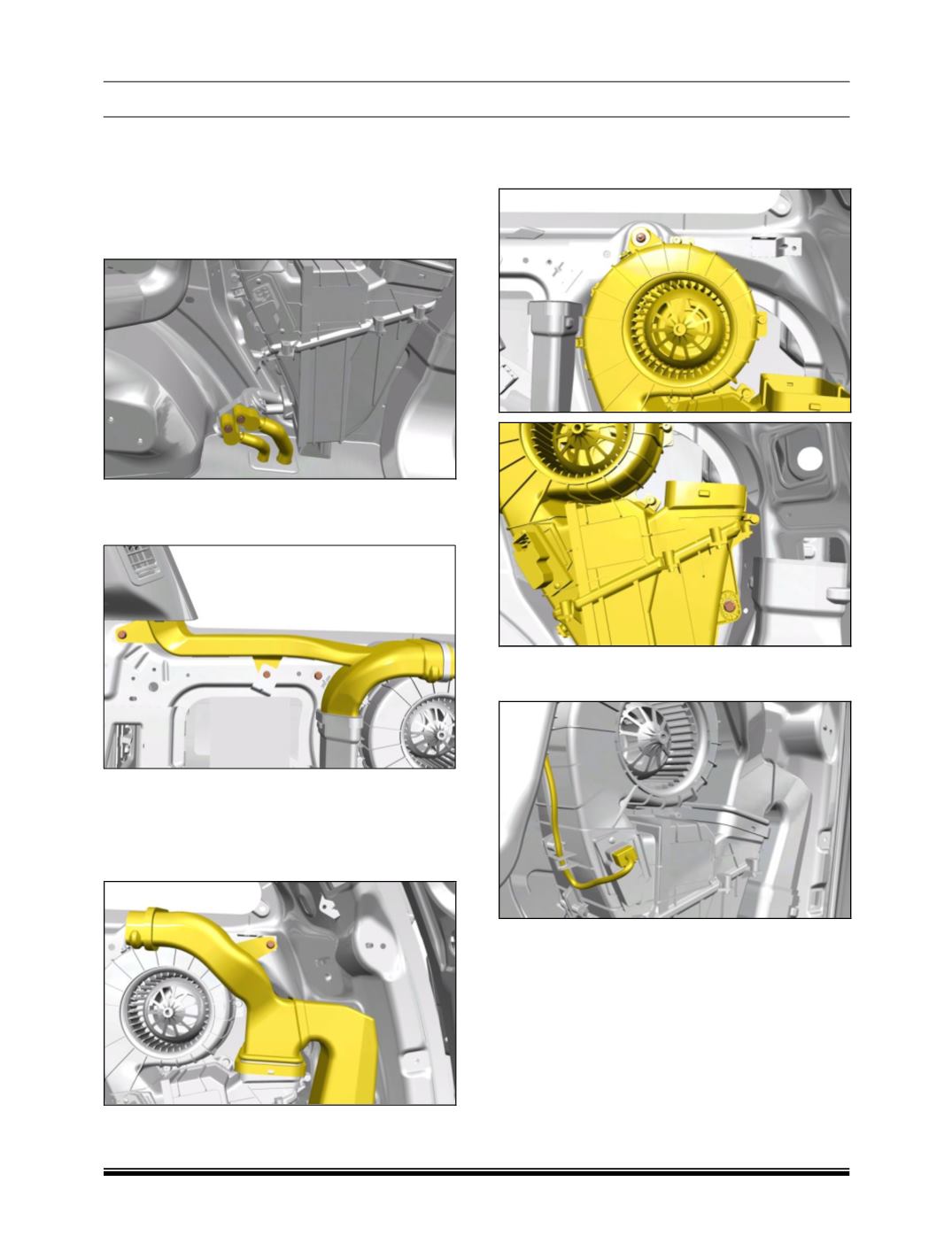

D. REAR AC UNIT

REMOVAL

1. Remove the rear quarter lower trim.

(For proce-

dure refer body section.)

2. Disconnect the TXV connections and plug both

the ports.

3. Loosen and remove three mounting bolts and

separate the “C” pillar duct from the “D” pillar duct

which is connected above the Rear AC.

CAUTION

Be careful to fit back the foam sealing on the ducts,

in order to avoid air leakage.

4. Loosen and remove the mounting bolt and re-

move the “D” pillar duct.

5. Loosen and remove the Rear AC mounting bolt

and pull out the assembly to separate the AC

from the locator.

6. Disconnect the electrical connector from the

blower.

7. Take out the Rear AC.

FITMENT

For fitment follow reverse procedure of removal
