When 14.0V supply is given to pin A and pin B, the
movement of the actuator should follow the follow-
ing table.
MOTOR MOVEMENT
INPUT
PIN A PIN B
Clockwise rotation
V+
V-
Counter Clockwise rotation
V-
V+

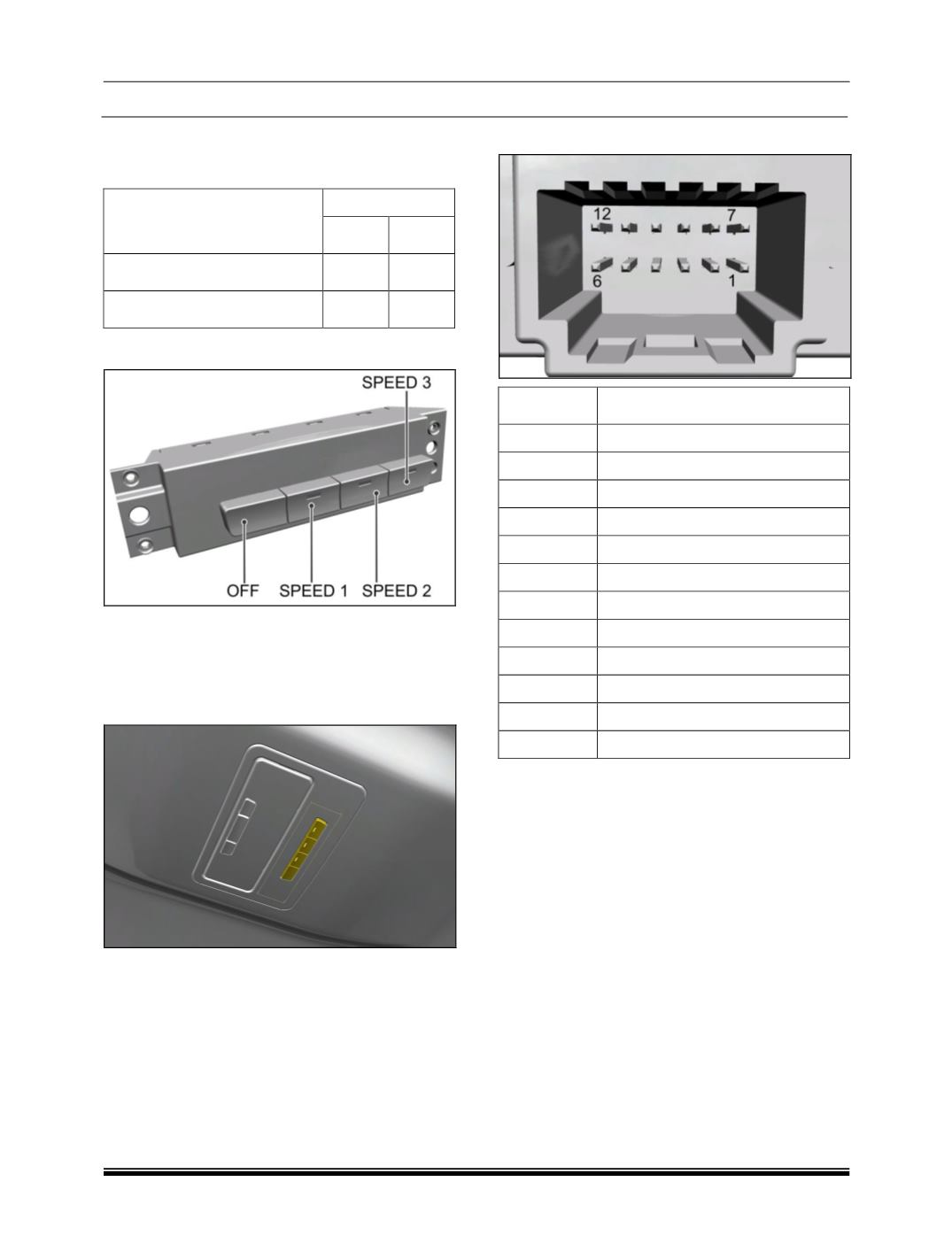

J. REAR BLOWER SWITCH
The rear blower switch mounted on the rear roof
console is used to switch ON/OFF and control the
blower that drives air from rear AC to the second and
third row ducts.
LOCATION:
PIN OUT:
PIN
DESCRIPTION
1
ILL (+)
2
GND
3
IGN (+)
4
1 STEP IND
5
2 STEP IND
6
3 STEP IND
7
ILL (-)
8
GND (CONTACT WITH UNIT)
9
IGN (CONTACT WITH UNIT)
10
NC
11
SWITCH INPUT
12
NC
