1839 / 1906
HVAC
25

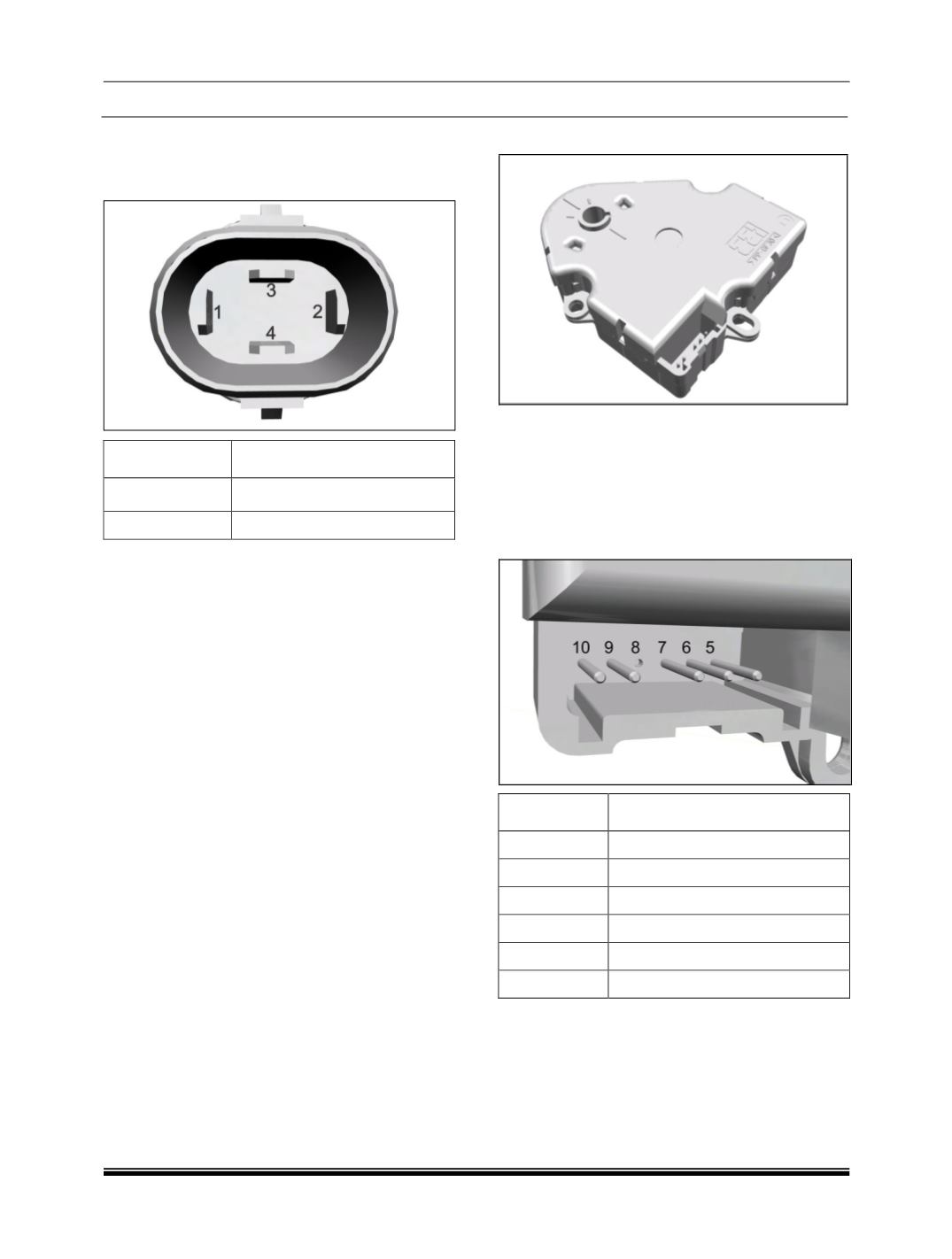

The pressure switch is located on the high pressure
refrigerant liquid tube, beside the brake booster.
PIN OUT:
PIN NO
DESCRIPTION
1 -2
Middle pressure
3 -4
Low and High Pressure
H. TEMPERATURE AND MODE ACTUATOR.
The actuator used to operate the temperature door
and modes door is similar and can be interchanged.
The actuator used is a high torque green or equiva-
lent bi-directional with position feedback actuator. It
controls the temperature / mode door through the
temperature / mode control voltage.
PIN OUT
PIN NO
DESCRIPTION
5
V
S
+ IGN
6
INPUT V
DRIVE
7
V
S
+ GND
8
NOT USED
9
FEEDBACK
10
+5V REG
