HEXA

HVAC

CAUTION

The point indicated above is the location of the sens-

ing bulb and not the point where clip has to be

inserted. Any minor change in position of the evapo-

rator can lead to malfunctioning of the HVAC system.

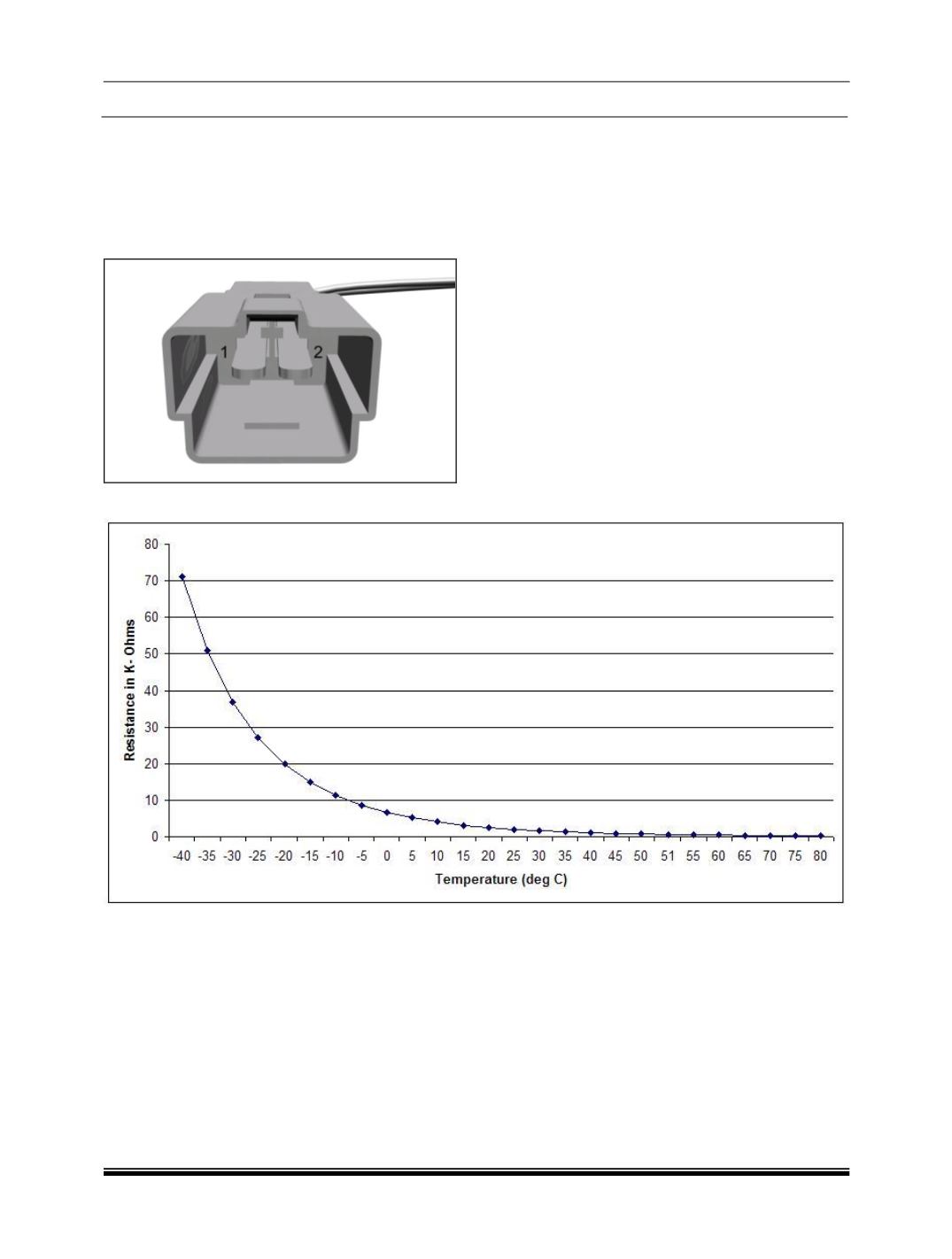

PIN OUT

NOTE



Refer front HVAC overhauling for removal and

installation process.



Only front HVAC is fitted with thermister, rear

HVAC is not fitted with thermister.

INSPECTION

1. Dip the sensor in ice water and measure the resistance with a digital multimeter.

2. Then pour hot water into it and check for change in resistance between pin 1 and pin 2 of the thermister.

3. The resistance should decrease as per the above graph and table.

CAUTION

When checking the resistance the temperature should not exceed the range of -40

Cto 85
