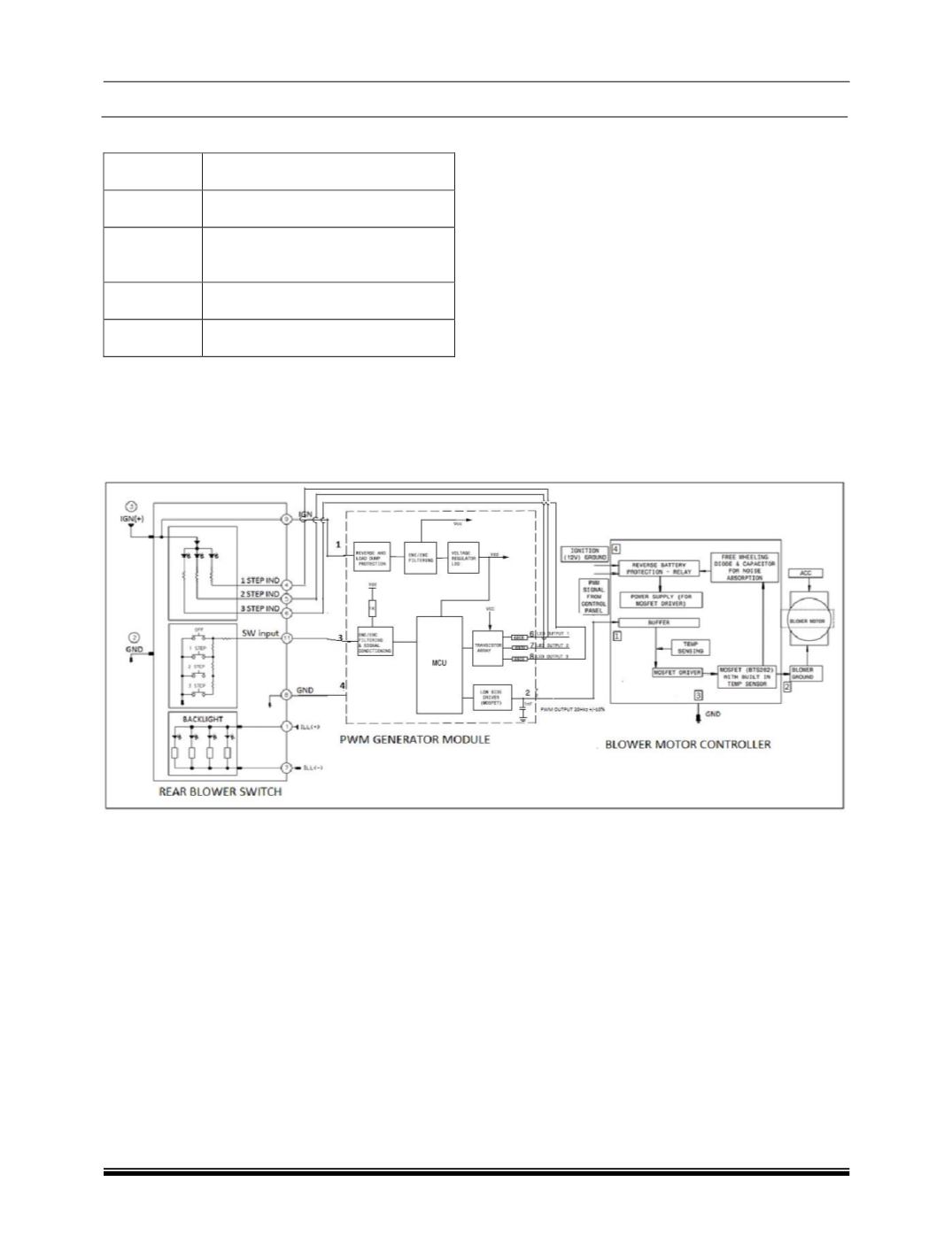

HVAC

29

Connector A

PIN NO

DESCRIPTION

1

PWM SIGNAL (20KHz)

2

BLOWER GROUND (Switched

Ground)

3

BATTERY GROUND

4

IGNITION 12 V / 300mA

CIRCUIT
