1789 / 1906
BODY
54
V.
REAR QUARTER TRIM:
REMOVAL:
1.
Remove
second and third row seats.
2. Remove 3
rd
row
seat mounting cover trim.
3.
Remove
2
nd
& 3
rd
row lower mountings.
4.
Remove
“C” pillar trim.
5. Remove “D” pillar trim.
6. Disengage rear garnish from rear quarter trim.
7. Remove tailgate scuff plate from vehicle.
8. Remove load floor.

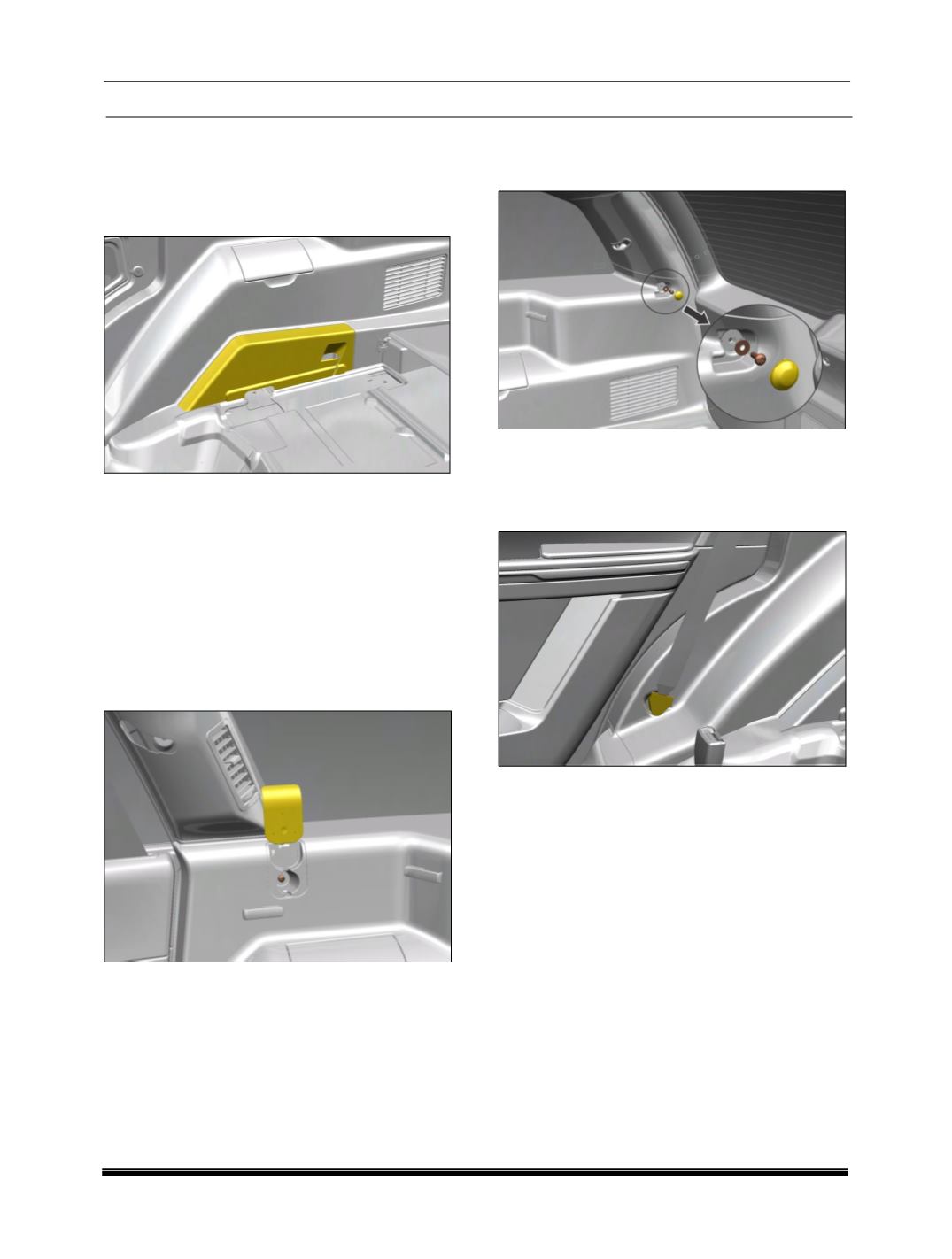

9. Press the front cover in upward
direction
and
remove the same. Remove the mounting
screw which is behind the cover.
10. Take out the cap and remove the
mounting
screw along with the washer which is at the
rear end at the top.
11. Remove third row seat belt.
(For procedure
refer third row seat belt removal).
12. Loosen and remove the lower mounting of the
second row seat.
13. Partially pull out the rear quarter trim and
disengage
cigarette lighter connection.
14.
Pull
out the rear quarter trim and separate it
from the vehicle.
ASSEMBLY:
For assembly follow the reverse procedure of
removal.
NOTE:
Before assembly check all trim clips and if found
damage replace with new one.
