SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

2. Disconnect the electrical connector.

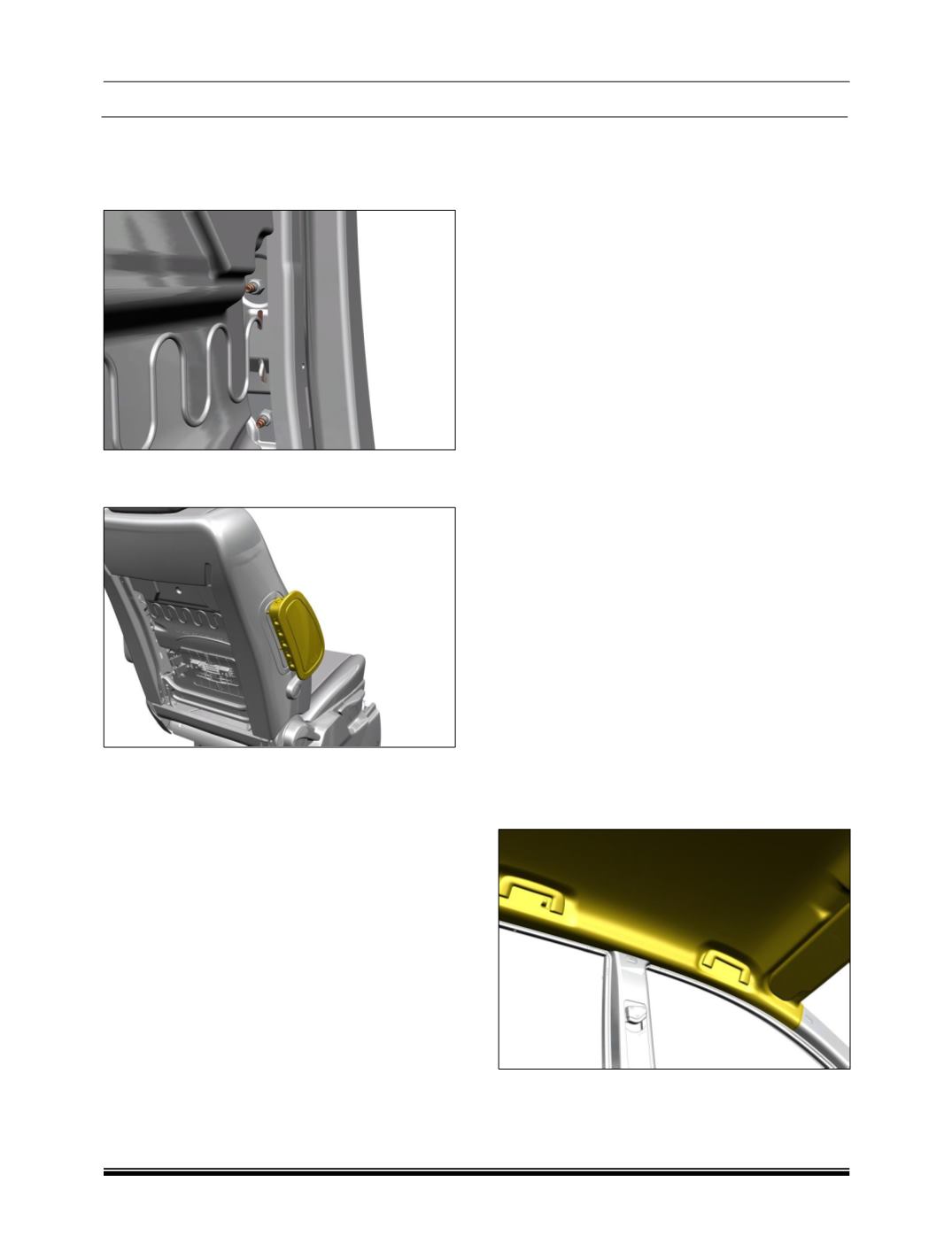

3. Loosen and remove two mounting nuts of side air

bag assembly.

4. Carefully pull out the side air bag assembly from

the seat.

FITMENT

For fitment follow reverse procedure of removal.

NOTE

After fitment connect the diagnostic tool and clear

fault codes, if any.



CURTAIN AIRBAG

In the vehicle, folded curtain airbag is installed on the

cantrail behind roof headliner on side of the vehicle.

When collision occurs the curtain airbag is deployed,

pushes the headliner out of the way and position

itself between occupant and side window of the vehi-

cle to protect the occupant's head from having hard

contact with side structure of vehicle or with the in-

truding external objects. The curtain airbag also en-

hances protection for the second row outboard

occupant.

ON VEHICLE REPAIR

REMOVAL

NOTE

Disconnect the vehicle battery and wait for 10 min

before commencing work on side airbag.

1. Remove “A, B and C” pillar trims.

(For procedure

refer Cab section.)

2. Disconnect the electrical connections of roof liner

assembly from “A-Pillar” at both ends.

3. Disconnect the rear washer pipe joint from the “A-

pillar”.

4. Remove the sunvisor.

(For procedure refer sunvi-

sor removal in CAB section.)

5. Remove all the grab handles and goggle case

from driver side.

(For removal procedures refer

CAB section.)

6. Remove front, middle and rear roof consoles.

(For procedure refer removal in CAB section.)

7. Loosen and remove the mounting screw which is

located below the rear roof console.

8. Remove the roof liner assembly.
