SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
29
PINOUT
A. BOTTOM SIDE CONNECTOR
TRACK
FUNCTION
– VE
Air Bag
+ VE
Air Bag
1
Infotainment switch
2
Infotainment Ground
3
Cruise Switch
4
Cruise Ground
5
Horn Switch (+Ve)
6
Horn Switch (-Ve)
B. TOP SIDE CONNECTOR
TRACK
FUNCTION
– VE
Air Bag
+ VE
Air Bag
1
Infotainment switch
2
Infotainment Ground
3
Cruise Switch
4
Cruise Ground
5
Horn Switch (+Ve)
6
Horn Switch (-Ve)
ON VEHICLE REPAIR
REMOVAL
1. Disconnect the battery connections.
2. Remove the DAB.
(For procedures refer DAB
removal).
3. Remove the steering wheel
(For procedures refer
steering wheel removal in steering section).
4. Pull out the steering column lower cover.
5. Loosen three fixing screws of assembly nacelle
lower and assembly nacelle upper, located in bot-
tom side of assembly nacelle lower.
6. Dismantle both nacelle from snap fitting and take
out the both assembly nacelle.

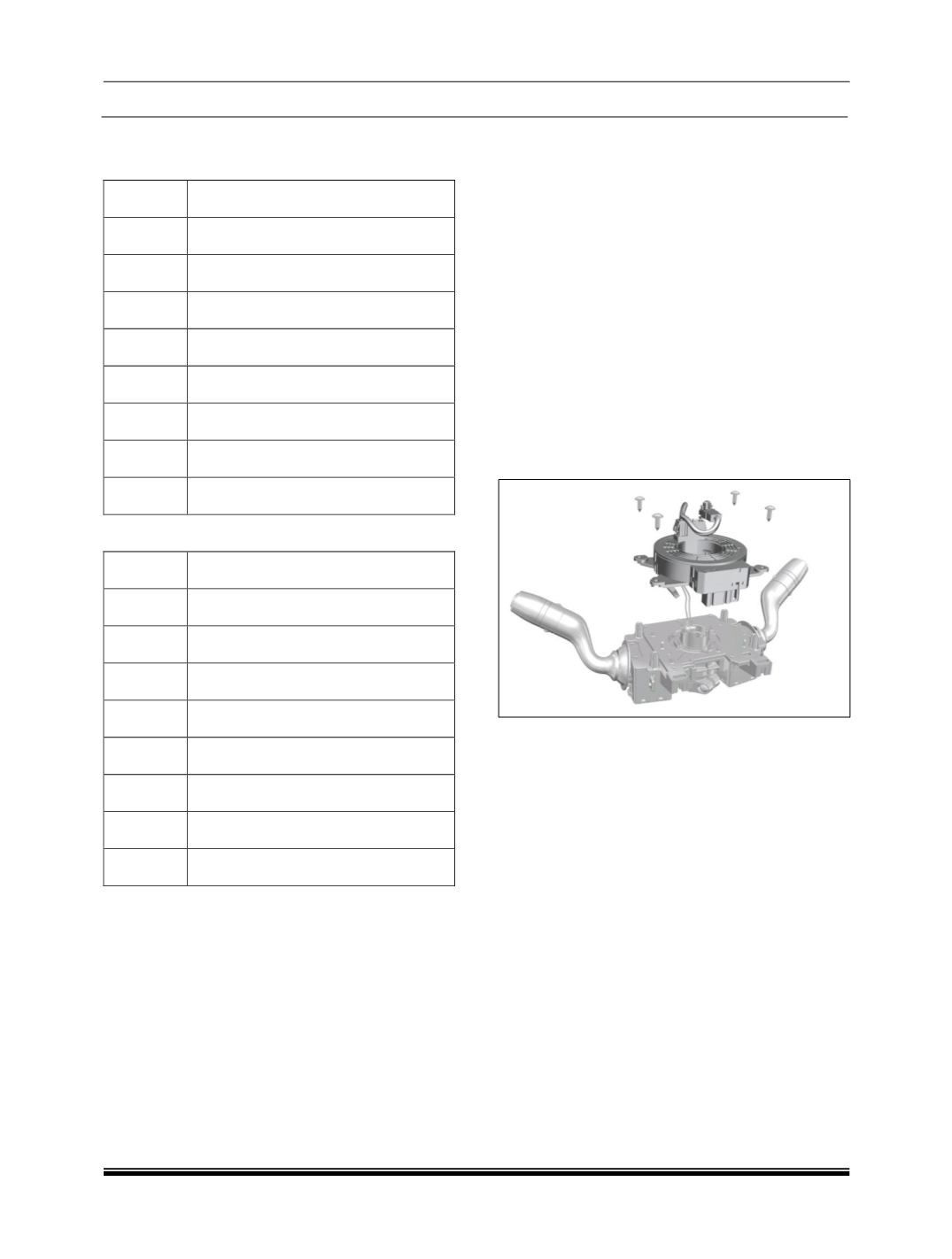

7. Remove four mounting screws of clock spring
and take out the clock spring.
FITMENT
CAUTION
Care should be taken that before fitment of clock
spring, make sure that the steering wheel and the
vehicle is in straight ahead position.
For fitment follow the reverse procedure of removal.
NOTE
After fitment of clock spring on Combi switch align
the clock spring as follows:
