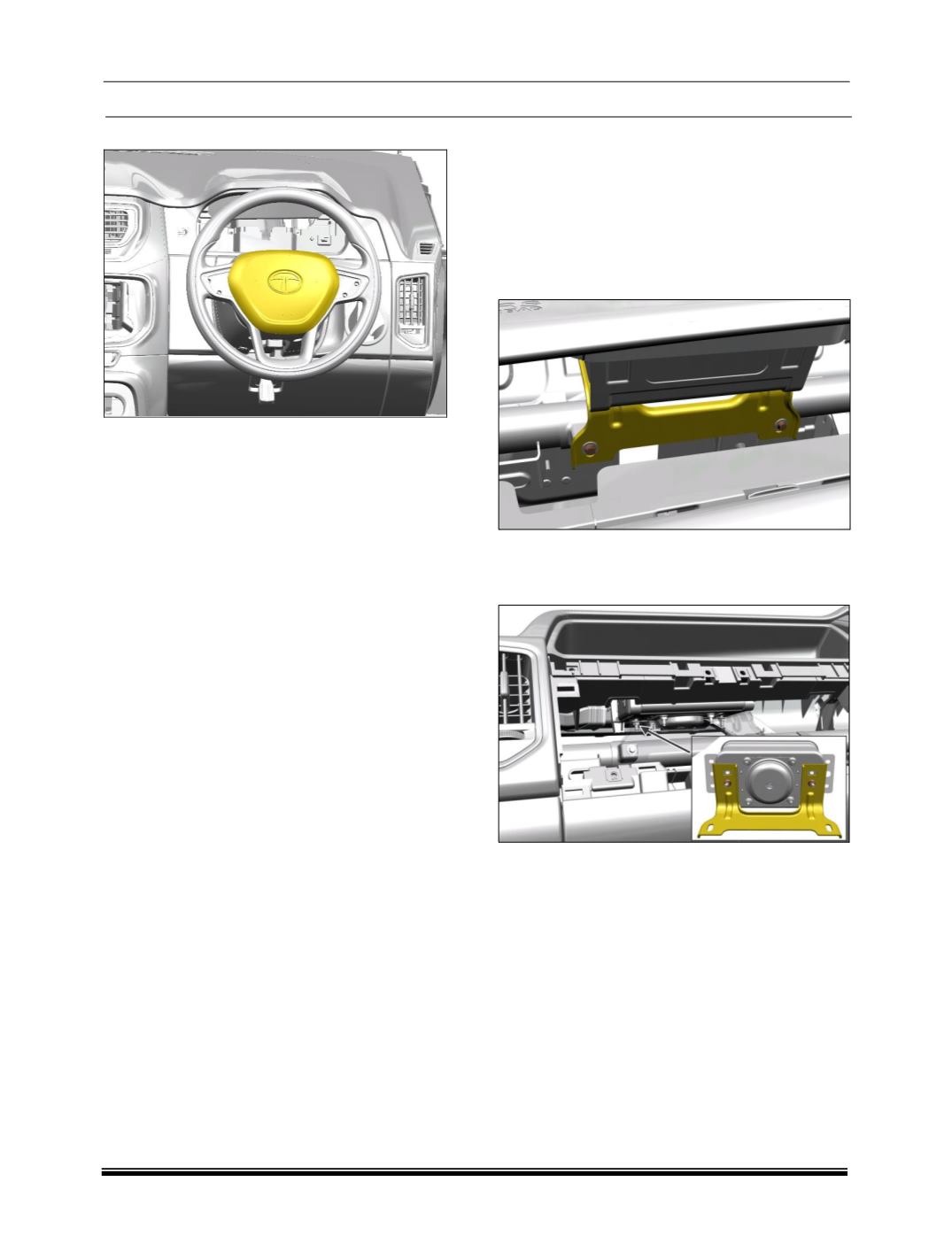

5. Carefully take out DAB.

WARNING:

Before removing steering wheel make alignment

marks on the steering wheel and the shaft for guiding

during reinstallation

NOTE

After fitment connect the diagnostic tool and clear all

fault codes if any.



PASSENGER AIRBAG (PAB)

The passenger airbag module is located below the

dashboard; above the glove box and its functioning

is controlled by the SRS ECU. A bag within the mod-

ule inflates to protect the passenger in the event of a

collision severe enough to deploy the system.

Within the passenger airbag module is a squib

which, when given the correct current by the SRS

ECU, inflates the airbag by initiating a chemical reac-

tion. In deployment, the airbag inflates within a frac-

tion of a second and then deflates at a controlled

rate as the passenger body regions; typically head

and chest interact with airbag. Vents in the airbag

control its deflation.

The SRS ECU regularly applies a test current to the

passenger airbag squib to confirm continuity of the

ignition circuitry.

ON VEHICLE SERVICE

REMOVAL

1. Disconnect the battery connections.

2. Remove the top utility bin.

(For procedure refer

top utility bin removal in CAB section.)

3. Loosen and remove the mounting nuts which hold

the air bag bracket with the cross car beam.

4. Loosen and remove two mounting nuts from the

rear side which holds the air bag bracket with the

PAB module.

5. Remove the air bag bracket.

6. Disconnect the electrical connector from the PAB

module.
