SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
21
ON VEHICLE SERVICE
WARNING
Always work on the air bag module from the side.
Always carry the module with the cover side upper-
most or away from the body in case being carried
vertically. Do not attempt to repair, open or apply
power (Multimeter) to the air bag module terminals.
CAUTION
Disconnect the battery negative lead.
REMOVAL
NOTE:
For Vehicles with ESP, Steering Angle Sensor
(SAS) Calibration has to be done after Wheel
Alignment.
Park the car with front wheel in straight ahead
position. Apply parking brake and place wheel
chokes at rear wheels.
Disconnect Battery.

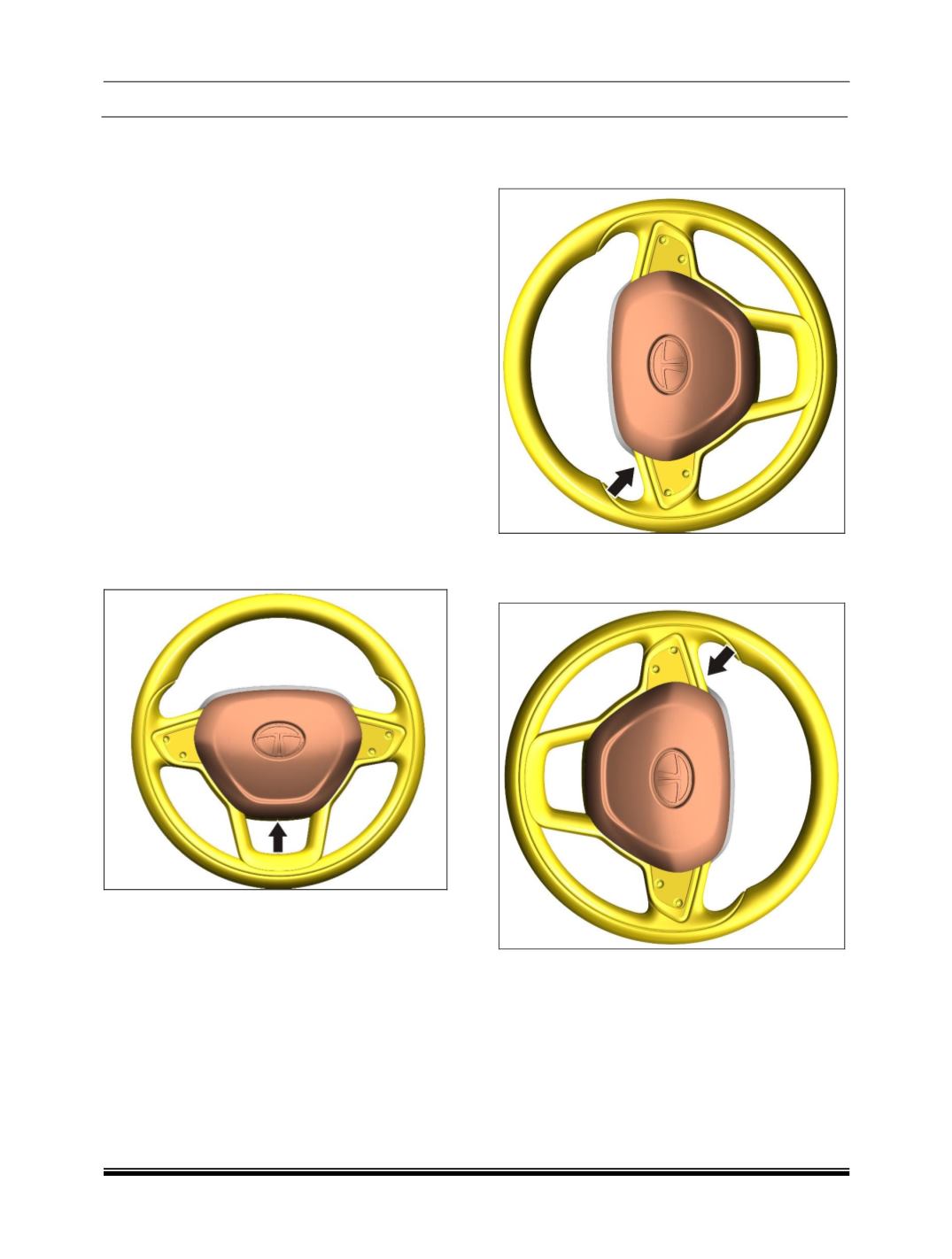

1. Insert & Push the screw driver from bottom cover
to disengage DAB snap at 6'o clock side of
steering wheel.
2. Rotate steering wheel in 90-degree clockwise
direction, insert and push screw driver from bot-
tom cover to disengage DAB snap.
3. Rotate steering wheel in 180 degree anticlock-
wise direction, insert and push screw driver from
bottom cover to disengage DAB snap.
4. Disconnect electrical connectors of air bag in-
flator and horn from DAB after removal of the
plastic clamp provided for the inflator connector.
