SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

ON VEHICLE SERVICE

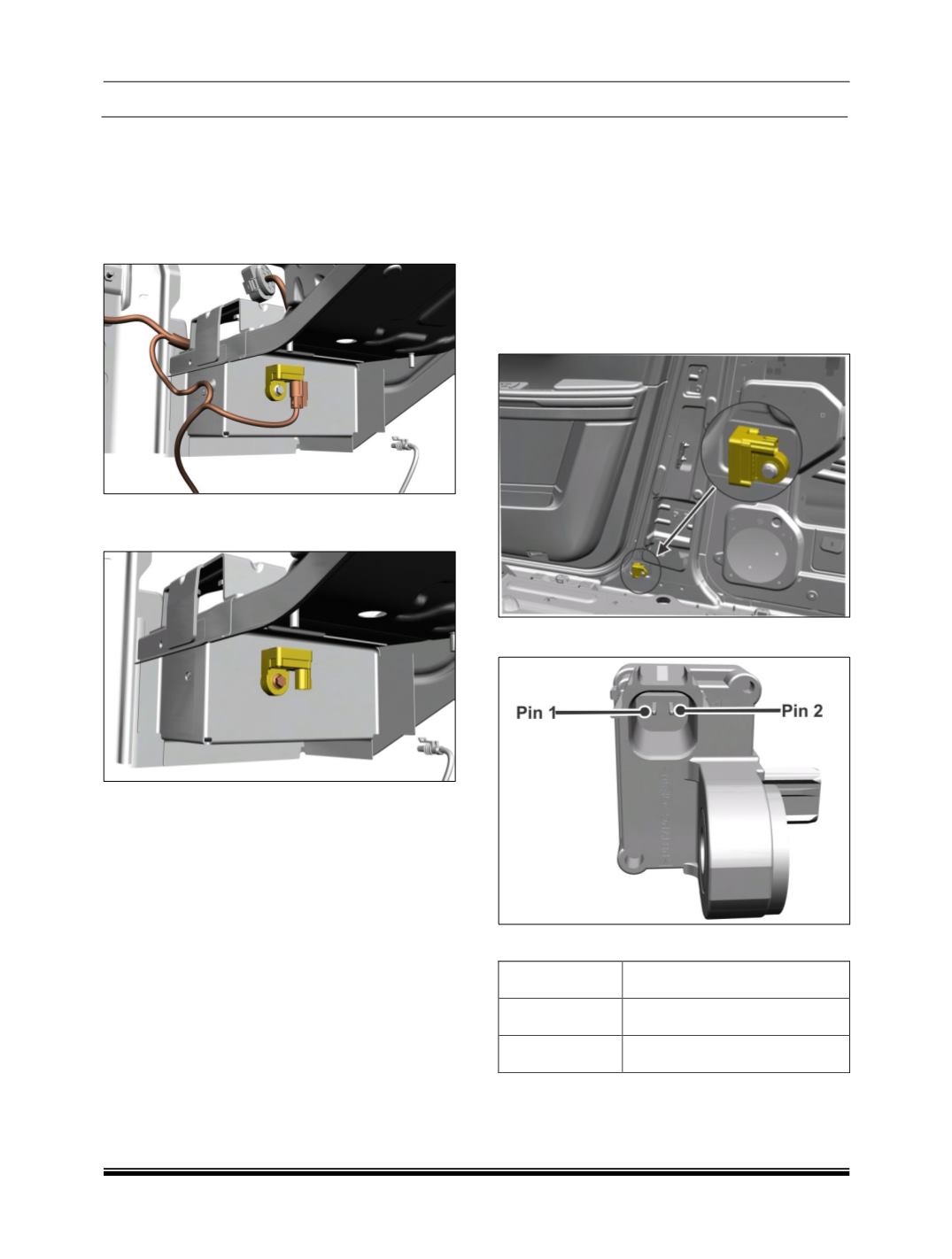

REMOVAL

1. Remove the battery connection.

2. Disconnect the electrical connection from the

front impact sensor.

3. Loosen and remove the mounting flange bolt and

take out the front impact sensor from the vehicle.

FITMENT

For fitment follow reverse procedure of removal.



SIDE IMPACT SENSOR

(SIS)

These sensors are positioned on the bottom side of

“B Pillar” on both sides of the vehicle. SIS sense the

structural deformation which is caused by side im-

pact (Side Collision) which then sends signal to SRS

ECU. This helps in activating the side airbags to

cushion the occupants from severe injuries

LOCATION

Side impact sensors are mounted on both sides at

the bottom of the “B Pillar”

CONNECTOR

PINOUT

PIN NO.

PIN DESCRIPTION

FEED

RETURN
