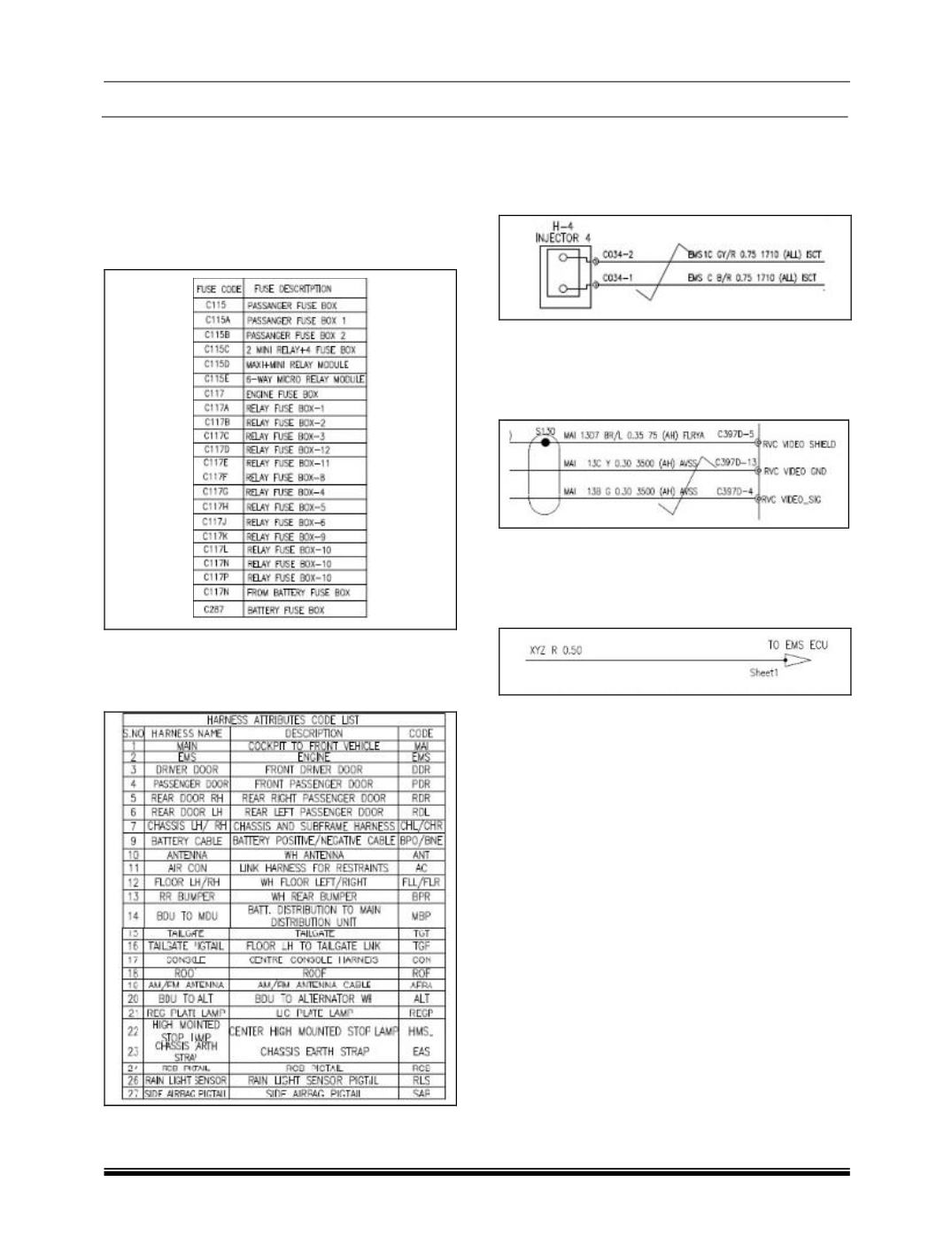

ELECTRICAL
323
Connectors/Housings
Connectors are identified by their corresponding
connector number.
Fuse box
In circuit diagram fuse box description is given as
below.
Wiring Harness
In circuit diagram WH description is given as
below.
Line Types
Crossed lines as illustrated below show an
example of how a twisted pair of wires are
represented in the circuit schematic.
Shielded Wires
Oval shape with black spot as illustrated below
show an example of how a shielded wire are
represented in the circuit schematics.
Wire Break
Arrow line as illustrated below show an example of
how a wire break is represented in the circuit
schematics.
Wire XYZ is connecting to EMS ECU, refer sheet1
