1606 / 1906
ELECTRICAL
304
5. During assembly/disassembly there shall not
be any scratch, breakage of camera lens.
6. During assembly, to check whether you have
fitted all wiring harness fitted properly or not,
do the following,
Once the cable assembly connectors are fitted,
engage the reverse gear, and check whether
you are able to see
Camera output image is appearing in
infotainment display or Not. If yes, connections
are OK. If not, recheck the cable
Assembly again.
This step will avoid disassembly of mechanical
parts again.
7. During assembly/disassembly, handle each
and every part with care without any damage

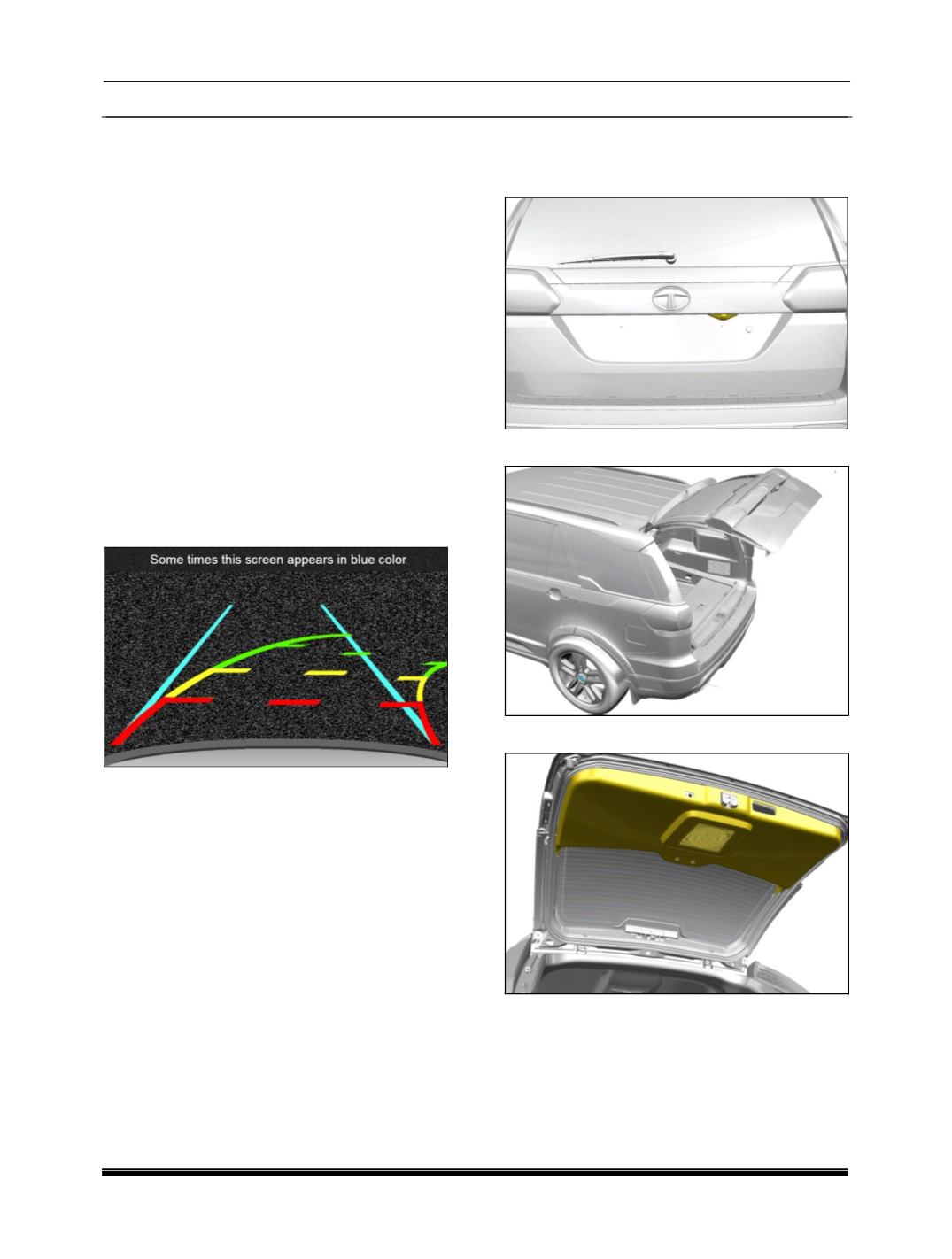

REASON FOR RVC REMOVAL
1. If camera is malfunction (if you see following
images on the screen)
2. If camera lens is broken or damaged
3. If camera is not working
4. If camera wiring harness broken
5. In case of replacement of camera due to any
reason
REMOVAL:
1.Locate the Rear View Camera on the tail
garnish.
2.Open the Tail gate of the vehicle.
3.Remove the Tail Gate trims.
