inside the camera lens, which may further
result into degradation of camera video feed on
the screen. It is recommended that not to rely
on camera video feed for parking assistance in
such scenario. This phenomenon is temporary
and will be automatically recovered with
reduction in humidity and less variation in
ambient temperature
CLEANING CAMERA
1. Due to environmental reasons, dust, mud or
fog may accumulate on the camera lens. So
regularly clean the camera lens.
2. Use water to clean the camera lens. Do not
use extreme cold extreme hot water. Rapid
changes in temperature may brittle the camera
lens.
3. Wipe the camera lens with soft cloth.
4. Do not use hard cloth or material to wipe the
camera lens. This will cause scratches on the
camera, and leads to deteriorated visual image
on the display.
5. Do not apply organic solvent, car wax, window
cleaner or glass coat to clean the camera. If
this is applied, wipe it off as soon as possible.
6. Do not apply heavy force on lens, while
cleaning.
7. Do not remove mud, snow on the camera lens
using stick or hard material

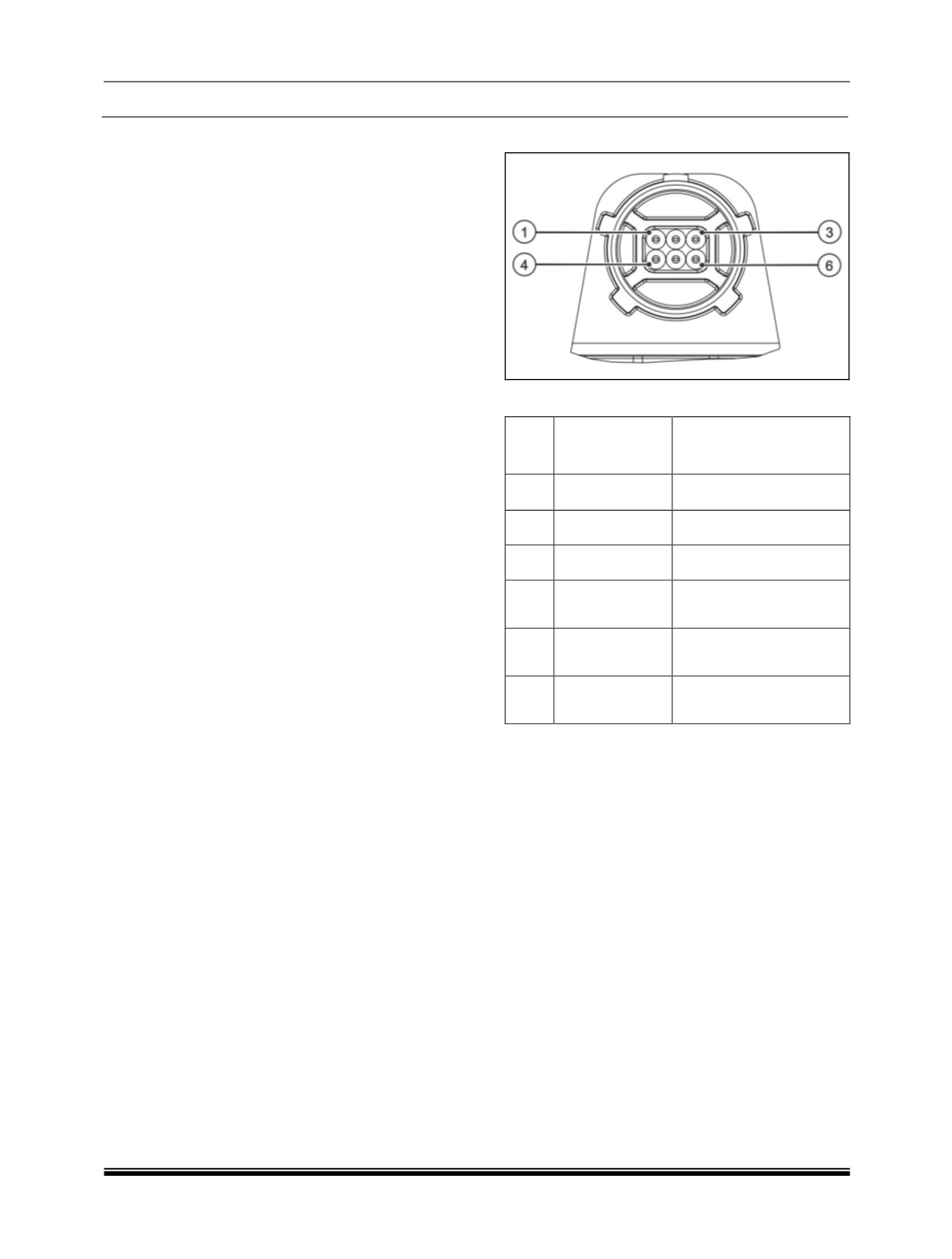

CONNECTOR DETAILS
PINOUT DETAILS:
PIN
NO
SIGNAL NAME SIGNAL DESCRIPTION
1 Ground
Ground
2 Not Used
Not Used
3 RVC_PWR
Power to rear camera
4 RVc Video
Sheild
Rear View Camera
Sheild
5 RVc Video
GND
Rear View Camera
Video Ground (NTSC -)
6 RVc Video Sig
Rear View Camera
Video Signal (NTSC +)
REMOVAL OF REAR VIEW CAMERA
Notes and Cautions
1. During dismantle of camera from the vehicle,
make sure that all the components removed
during this process, shall be refitted back
during assembly. No component is allowed it
misfit or forget to fit.
2. Please follow respective components allowable
pull in/pull out forces, shear forces etc., as per
specifications.
3. Make sure that, during dismantling, remove
electrical wiring harness connectors. And
during assembly, make sure that all the
electrical connectors are refitted as intended.
4. If camera is not fitted in specified tolerances as
per the camera drawing, camera vision will
differ than specified. Due to this customer may
not see the intended rear view image in the
display. This may cause malfunction of the
camera. So please fit the camera within
specified tolerances.
