ELECTRICAL
288

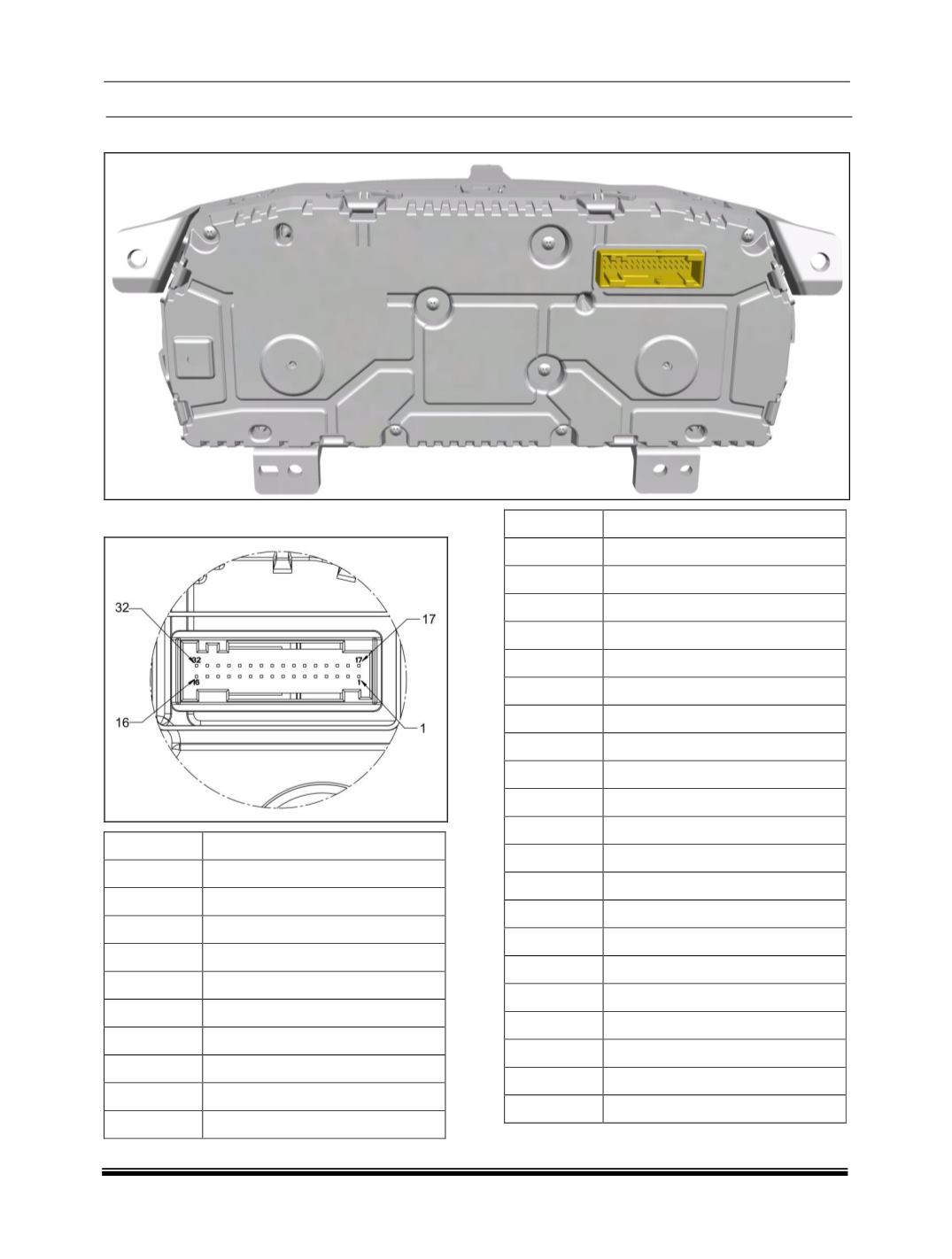

CONNECTOR DETAILS OF XT, XM & XMA VARIANTS INSTRUMENT CLUSTER
PINOUT DETAIL
PIN
DESCRIPTION
1
Battery Input
2
Seat belt telltale
3
Transport link mode
4
CAN L
5
CAN H
6
Speed output
7
Diagnostics CAN L
8
Diagnostics CAN H
9
Spare digital output
10
LIN
11
Charge button telltale
12
DIC analog
13
Speed sensor
14
Speed pulse
15
GND for VSS & OAT
16
OAT
17
Low oil pressure
18
Ignition supply input
19
Immobilizer
20
Brake fluid
21
Park brake
22
PRND PWM
23
Battery GND
24
Common IP dimming
25
Wake up
26
Trip switch
27
Airbag TT switch
28
High beam TT
29
Fuel level sender input
30
Fuel level sender GND
31
Low washer fluid
32
Speed output PWM
