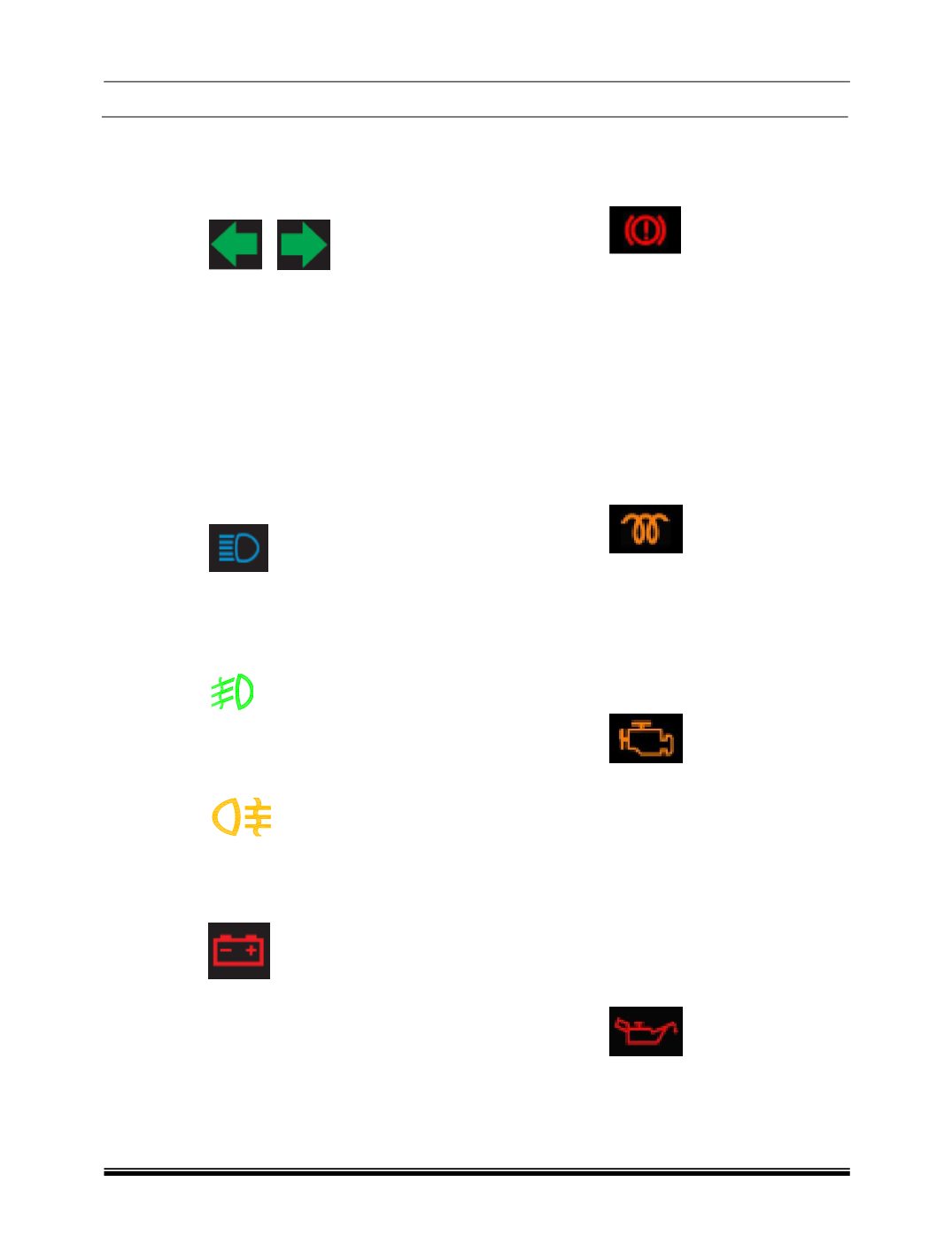

2.9. Warning Lamps

2.9.1. Turn signal

One of these symbols comes ‘ON’ when the turn

indicators is switched ‘ON’. Turn signal lamps can

be operated only when the Ignition supply is ‘ON’

and by using the turn indicator switch on the

Combi-switch. The direction indicator arrow on

Instrument Cluster flashes along with external

indicator lights as selected.

Both telltales shall blink simultaneously when

Hazard switch is pressed irrespective of Ignition

ON and the Tick-Tock sound shall be given when

any one or both the telltales are ON.

2.9.2 High Beam

This symbol comes ‘ON’ when the headlamp high

beam is switched ‘ON’ and High beam was

flashed.

2.9.3 Front Fog Lamp

This symbol comes ‘ON’ when the front fog lamp

is switched ‘ON’.

2.9.4 Rear Fog Lamp

This symbol comes ‘ON’ when the rear fog lamp

is switched ‘ON’.

2.9.5 Battery charging

This symbol lights up when the ‘IGN’ is turned

‘ON’ and should go ‘OFF’ after the engine starts.

NOTE

If it remains ‘ON’ while the engine is running, it

indicates that the battery is not getting charged.

Switch off all unnecessary electrical equipment

and get the problem attended to at TATA

authorized Service center.

2.9.6 Park Brake / Brake Fluid low /

EBD malfunction

This indicator comes ‘ON’ for approximately 4

seconds when Ignition is turned 'ON' and goes

‘OFF’. If it remains ‘ON’, it may indicate:

1. Brake fluid level is low.

2. Parking brake is applied. It shall go ‘OFF’

when it is released.

3. Fault in EBD (Electronic Brake force

distribution) system

2.9.7 Diesel Pre-Heat indicator / Glow

Plug Indicator

This symbol comes ‘ON’ when the ignition key is

in the ‘ON’ position.

NOTE

Engine shall be started only after this indicator

goes ‘OFF’.

2.9.8 Malfunction Indication Lamp

This symbol comes ‘ON’ when the ignition is

turned ‘ON’ and goes ‘OFF’ after 4 seconds.

Caution

This symbol shall remain ‘ON’ for any engine

related fault that may cause increase in emission

levels of the car beyond the regulatory limit. Take

your car to a TATA authorized service Centre.

2.9.9 Low Engine Oil Pressure

indicator

When the Ignition is turned ‘ON’, this symbol

lights up and goes ‘OFF’ as soon as the required

engine oil pressure is developed after starting the

engine.
