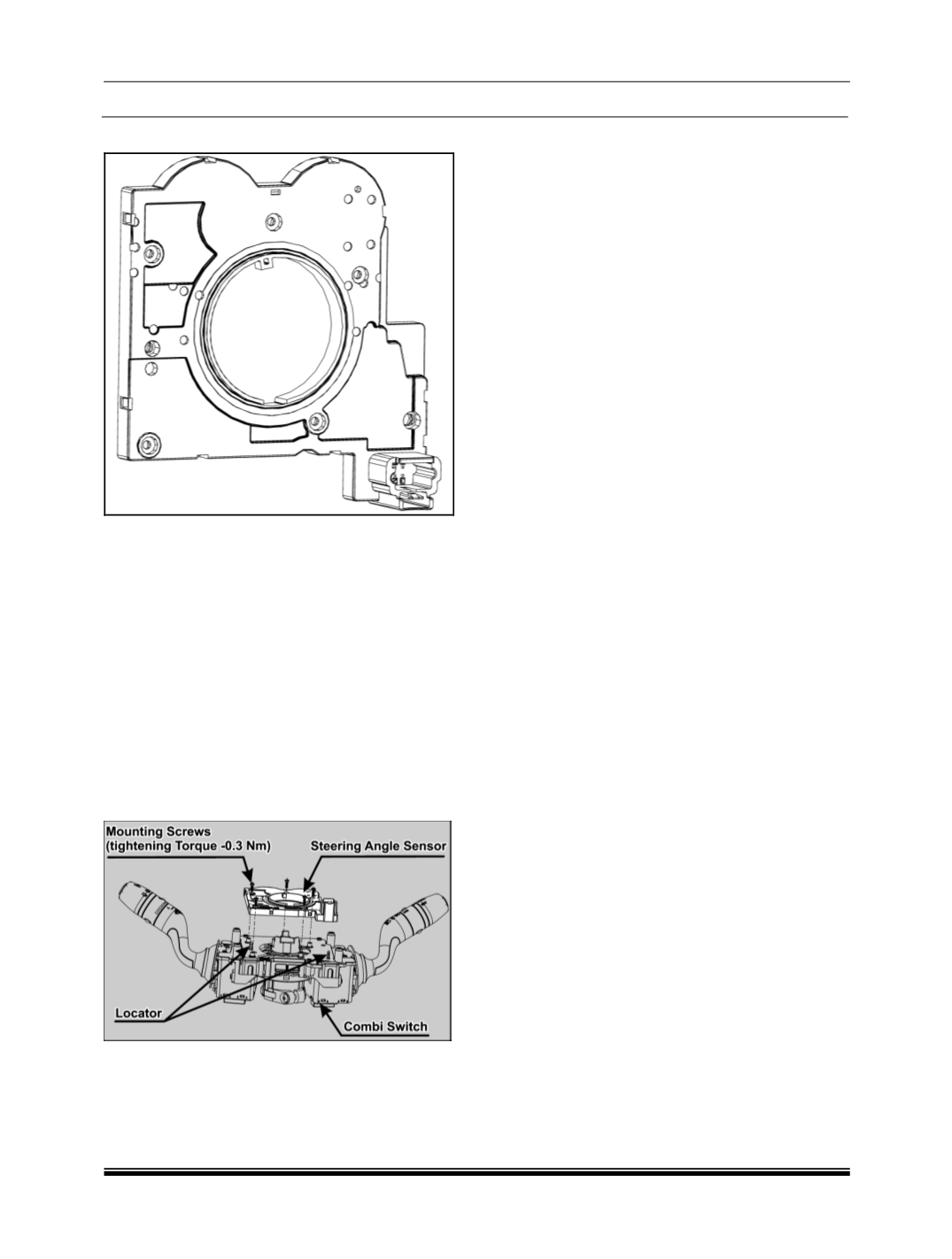

STEERING ANGLE SENSOR:
REMOVAL:
1. Remove the steering wheel (For procedures
refer steering section).
2. Pull out the steering column lower cover.
3. Loosen three fixing screws of assy necelle
lower and assy necelle upper, located in
bottom side of assy nacelle lower.
4. Dismantle both necelle from snap fitting and
take out the both assy nacelle.
5. Remove four mounting screws of clock spring
and take out the clock spring.
6. Remove four mounting screws of steering
angle sensor.
7. Take out steering angle sensor from its locator.
REFITMENT:
For refitment follow the reverse procedure of
removal.
