ELECTRICAL

103

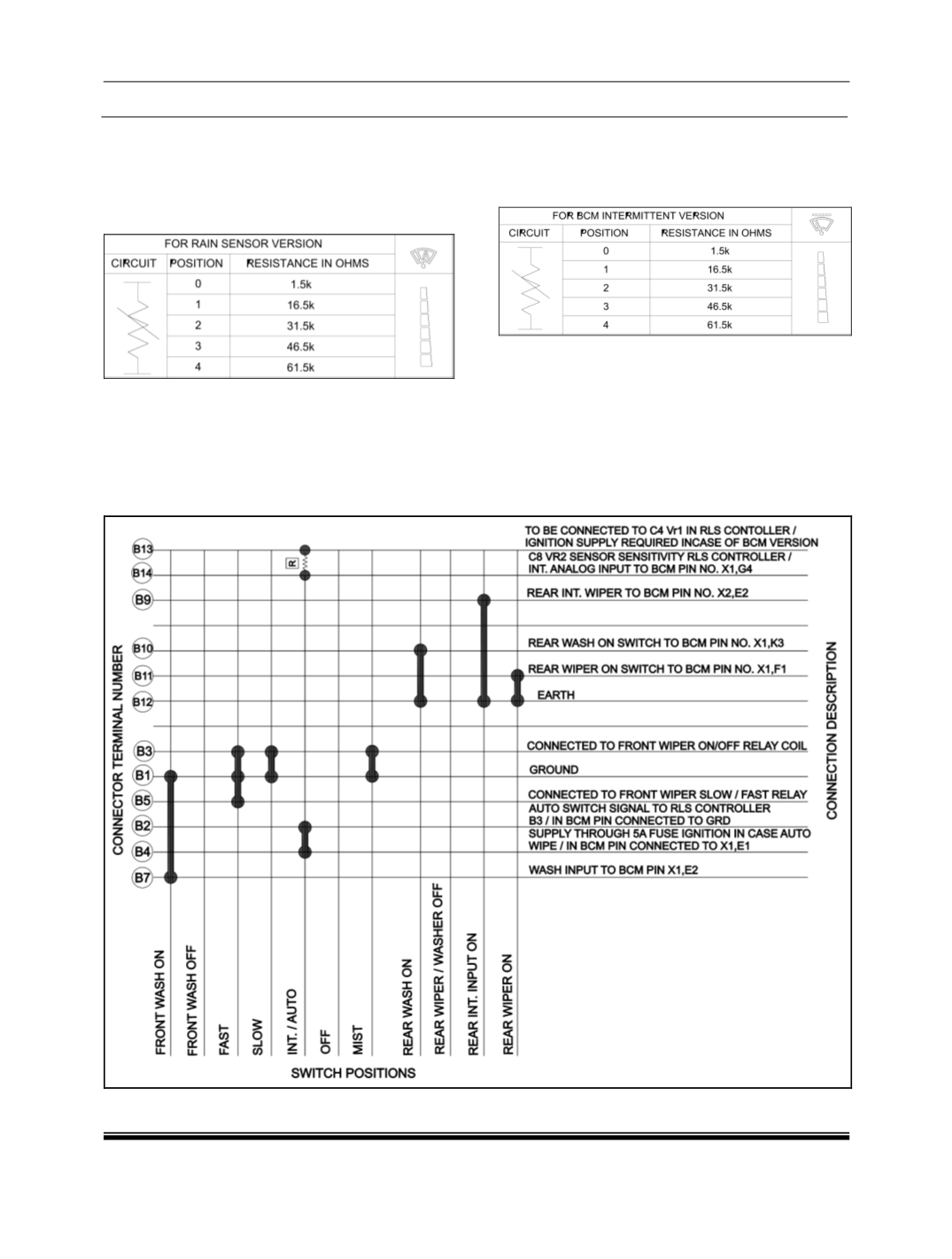

CONNECTOR DETAILS:

WIPER CIRCUIT:

RESISTANCE VALUES:

For Rain Sensor Version

NOTE:

Variation should be ± 3% only.

P1-H- Highest sensitivity

P5 -L– Lowest sensitivity

For BCM Intermittent Version

NOTE:

Variation should be ± 3% only.

CONNECTION DETAILS:

WIPER WIRING CIRCUIT:
