ELECTRICAL
43

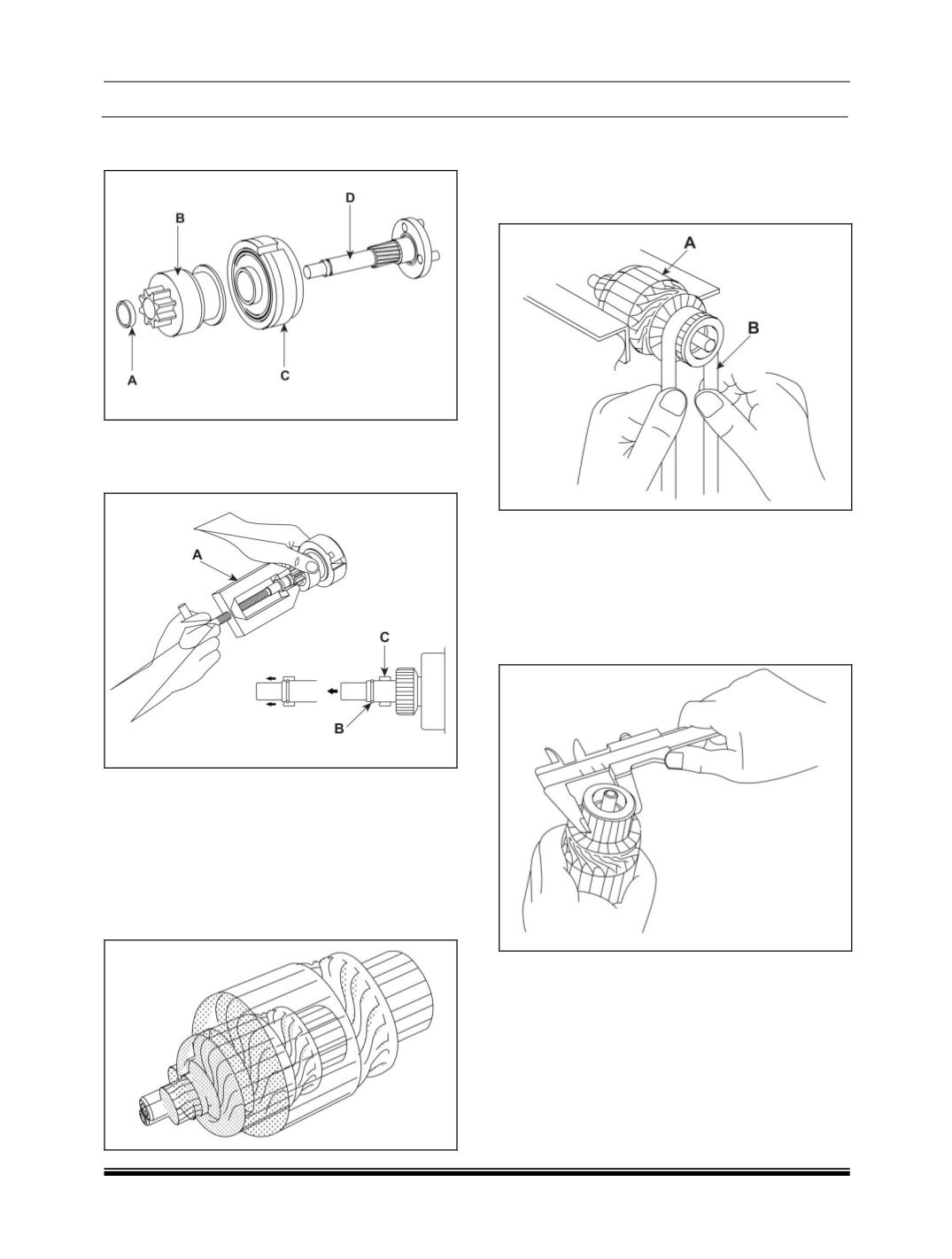

11.Disconnect the stop ring (A), overrunning clutch
(B), internal gear(C) and planet shaft (D).
Using a suitable pulling tool (A), pull the
overrunning clutch stop ring (B) over the
stopper(C).
1.CLEANING & INSPECTION:
1. Remove the starter.
2. Disassemble the starter as shown at the
beginning of this procedure.
3. Inspect the armature for wear or damage from
con- tact with the permanent magnet. If there is
wear or damage, replace the armature.
4. Check the commutator (A) surface. If the
surface is dirty or burnt, resurface with emery
cloth or a lathe within the following
specifications, or recondition with #500 or #600
sandpaper (B).
5. Check the commutator diameter. If the
diameter is below the service limit, replace the
armature.
Commutator diameter
Standard (New): 29.4 mm (1.1575 in)
Service limit: 28.8 mm (1.1339 in)
6. Measure the commutator (A) run out.
If the commutator run out is within the
service limit, check the commutator for
carbon dust or brass chips between the
segments.
If the commutator run out is not within the
service limit, replace the armature.
