1349 / 1906
ELECTRICAL
47

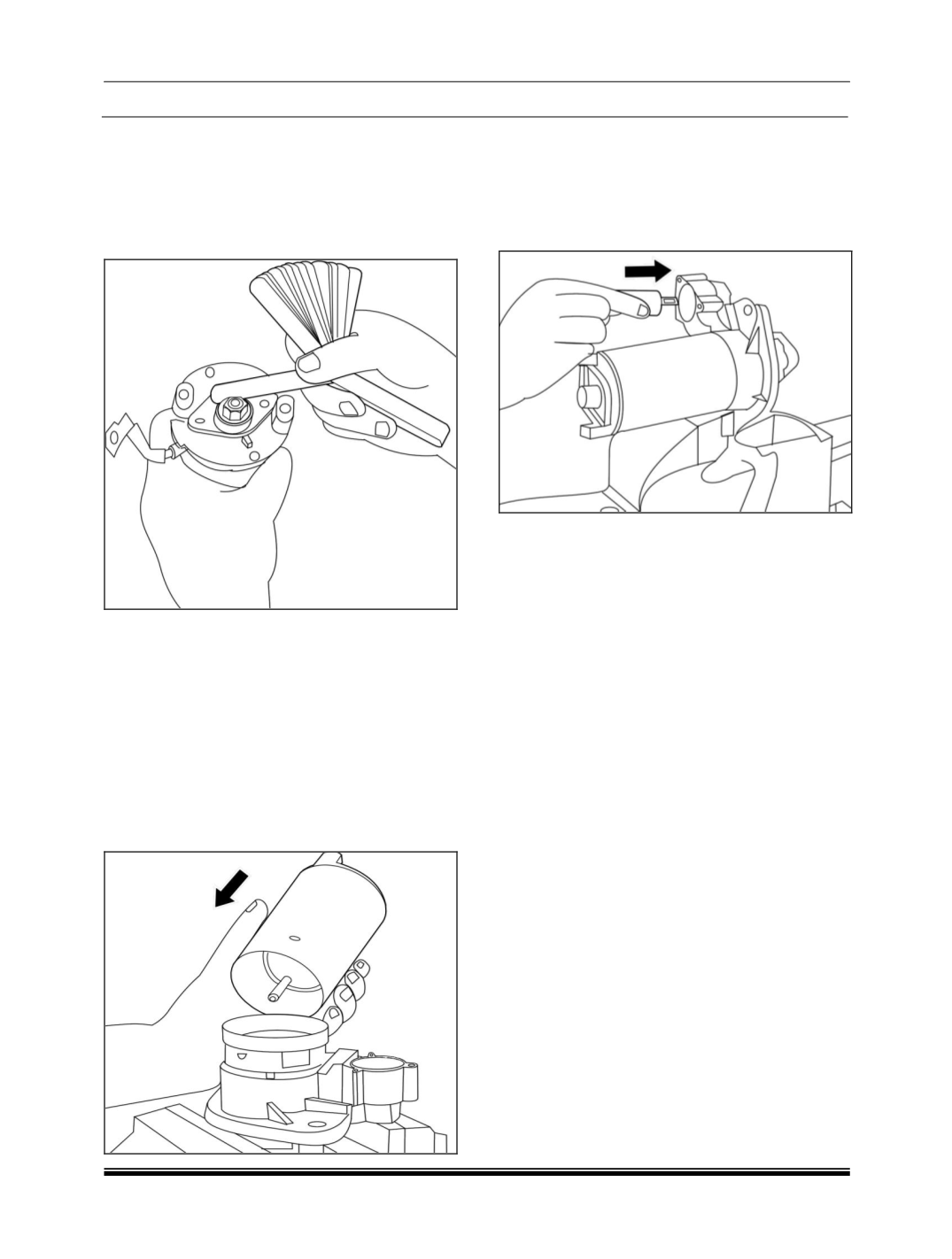

10. With the help of a feeler gauge, set armature
end play to 0.05 to 0.4 mm using only one
shim. (
Shims of thicknesses 1.0, 1.2 and 1.4
mm are available
). Insert lock washer. Lightly
grease holding disc and shim with silicon
grease. Mount seal and closing cap and lightly
tighten the screws by hand.
11. Slide armature with brush plate and
commutator end shield carefully into stator
frame. Fit rubber seal on terminal 45 (
brush
plate
) into groove on stator frame. Position the
stator frame on the drive end bearing housing.
Turn the pinion until the armature latches into
the gear wheels. The groove on the stator
frame fits on to the sealing rubber of the
bearing pedestal.
12. Position the through bolts and tighten to 4.5 to
6.0 Nm. Tighten the fastening screws of
closure cap to 1.4 to 2.0 Nm
13. Hook the solenoid armature into the fork lever.
Insert solenoid armature return spring and
screw down the solenoid housing to torque
(
4.5 to 6.3 Nm
).
14. Reconnect the supply terminal and tighten nut
with washer on the solenoid.
