ELECTRICAL

41

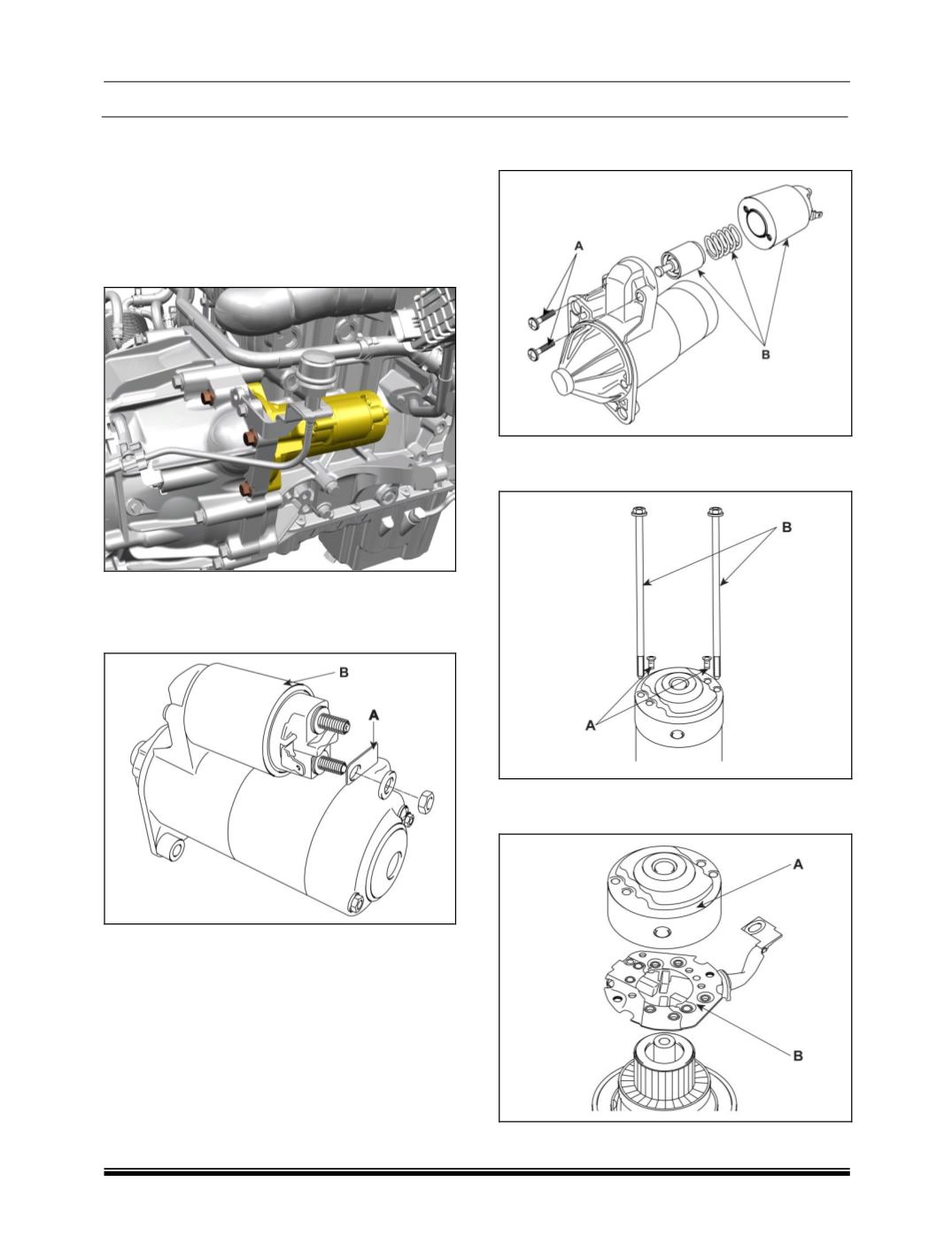

REMOVAL:

1. Remove the air filter assembly;

(Refer Air filter

assembly removal process).

2. Disconnect the electrical connections of the

starter motor.

3. Loosen and remove the 3 mounting bolts (1)

and remove the starter motor (2).

DISMANTLING:

1. Disconnect the M-terminal (A) on the magnet

switch assembly (B).

2. After loosening the 2 screws (A), detach the

magnet switch assembly (B).

3. Loosen the brush holder mounting screw (A)

and through bolts (B).

4. Remove the rear bracket (A) and brush holder

assembly (B).
